固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP2010-1R0MFIXED IND 1UH 2.6A 69 MOHM SMD |
7,532 |
|
规格书 |
SRP2010 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 2.6 A | 2.9A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
LQW2BANR20G00LFIXED IND 200NH 750MA 630MOHM SM |
7,460 |
|
规格书 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 200 nH | ±2% | 750 mA | - | Unshielded | 630mOhm Max | 53 @ 250MHz | 920MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|

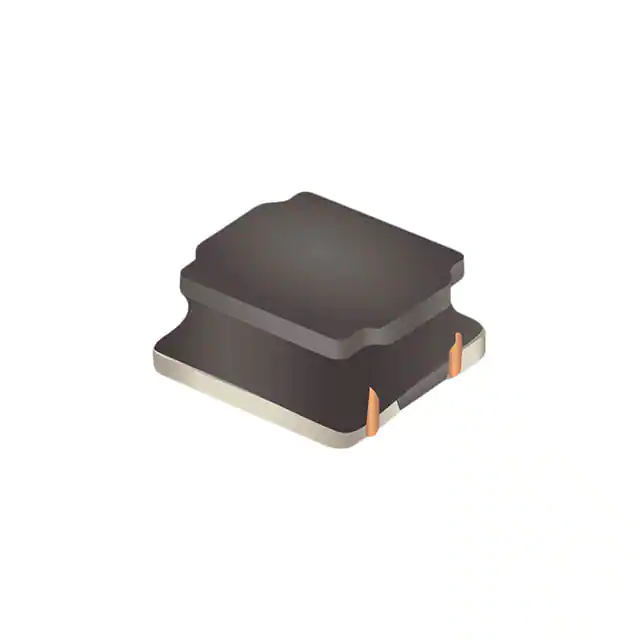

SRN3015TA-220MFIXED IND 22UH 600MA 460MOHM SMD |
6,786 |
|
规格书 |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 600 mA | 550mA | Shielded | 460mOhm | 12 @ 100kHz | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LQW2BAN56NG00LFIXED IND 56NH 1.25A 180MOHM SMD |
6,662 |
|
规格书 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 56 nH | ±2% | 1.25 A | - | Unshielded | 180mOhm Max | 70 @ 500MHz | 1.6GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
SRN3015TA-6R8MFIXED IND 6.8UH 1A 160 MOHM SMD |
5,871 |
|
规格书 |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1 A | 1A | Shielded | 160mOhm | 12 @ 100kHz | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
SRN5040-220MFIXED IND 22UH 1.4A 152 MOHM SMD |
5,678 |
|
规格书 |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.6A | Shielded | 152mOhm Max | 17 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
NRS5020T4R7MMGJVFIXED IND 4.7UH 2A 72 MOHM SMD |
5,519 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2 A | 2A | Shielded | 72mOhm Max | - | 37MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
|
SRN3015TA-2R2MFIXED IND 2.2UH 1.7A 60 MOHM SMD |
5,463 |
|
规格书 |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.7 A | 1.7A | Shielded | 60mOhm | 12 @ 100kHz | 64MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

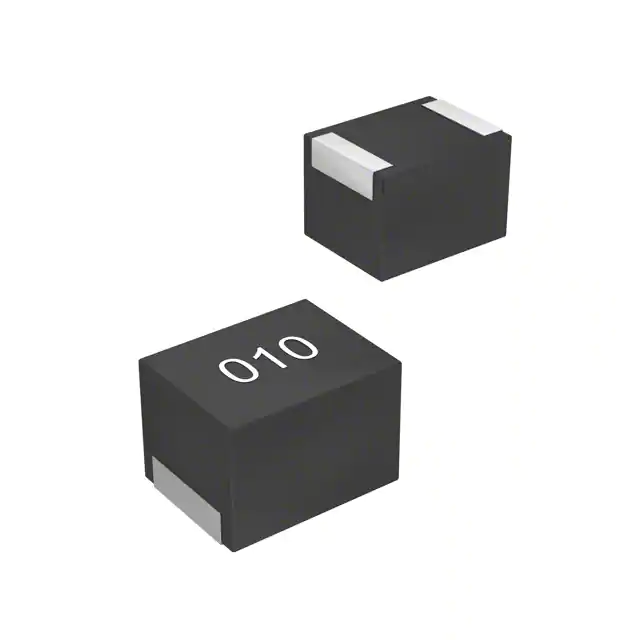

CMH322522-180KLFIXED IND 18UH 120MA 3.3 OHM SMD |
5,046 |
|
规格书 |
CMH322522 | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 120 mA | - | Shielded | 3.3Ohm Max | 30 @ 2.52MHz | 20MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
SRN5040-8R2MFIXED IND 8.2UH 2.2A 65 MOHM SMD |
4,751 |
|
规格书 |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 2.2 A | 2.4A | Shielded | 65mOhm Max | 15 @ 7.96MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
SRN3015TA-330MFIXED IND 33UH 450MA 800MOHM SMD |
3,681 |
|
规格书 |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 450 mA | 400mA | Shielded | 800mOhm | 12 @ 100kHz | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015TA-100MFIXED IND 10UH 800MA 220MOHM SMD |
3,632 |
|
规格书 |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 800 mA | 750mA | Shielded | 220mOhm | 12 @ 100kHz | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LQW2BAN22NG00LFIXED IND 22NH 1.9A 70 MOHM SMD |
3,299 |
|
规格书 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 22 nH | ±2% | 1.9 A | - | Unshielded | 70mOhm Max | 85 @ 500MHz | 1.85GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
SRN5040-330MFIXED IND 33UH 1.2A 216 MOHM SMD |
3,241 |
|
规格书 |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.2 A | 1.3A | Shielded | 216mOhm Max | 17 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
SRN6028C-4R7MFIXED IND 4.7UH 3A 38 MOHM SMD |
3,008 |
|
规格书 |
SRN6028C | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.1 A | 3.2A | Shielded | 30mOhm | 15 @ 100kHz | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
LQW2BANR13G00LFIXED IND 130NH 950MA 420MOHM SM |
2,330 |
|
规格书 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 130 nH | ±2% | 950 mA | - | Unshielded | 420mOhm Max | 56 @ 250MHz | 1GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW2BAN27NG00LFIXED IND 27NH 2A 70 MOHM SMD |
2,288 |
|
规格书 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 27 nH | ±2% | 2 A | - | Unshielded | 70mOhm Max | 85 @ 500MHz | 2.75GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
SRN3015-180MFIXED IND 18UH 650MA 546MOHM SMD |
1,975 |
|
规格书 |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 650 mA | 620mA | Shielded | 546mOhm Max | 17 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRP3212-1R0MR21IND PWR 1.0UH 7.7A BQ25638 |
1,650 |
|
规格书 |
SRP3212 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1 µH | ±20% | 5.5 A | 7.7A | Shielded | 19mOhm Max | 15 @ 100kHz | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
SRN6028C-2R2MFIXED IND 2.2UH 3.7A 26 MOHM SMD |
1,465 |
|
规格书 |
SRN6028C | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 4.5 A | 5A | Shielded | 18mOhm | 15 @ 100kHz | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
