固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

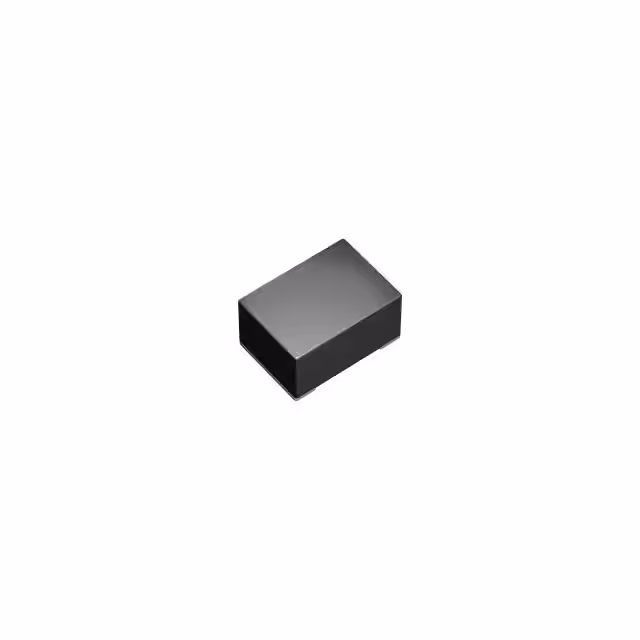

LSENC2016KKTR47MFIXED IND 470NH 4.3A 30 MOHM SMD |
1,140 |
|
规格书 |
LSEN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 4.3 A | 4.5A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

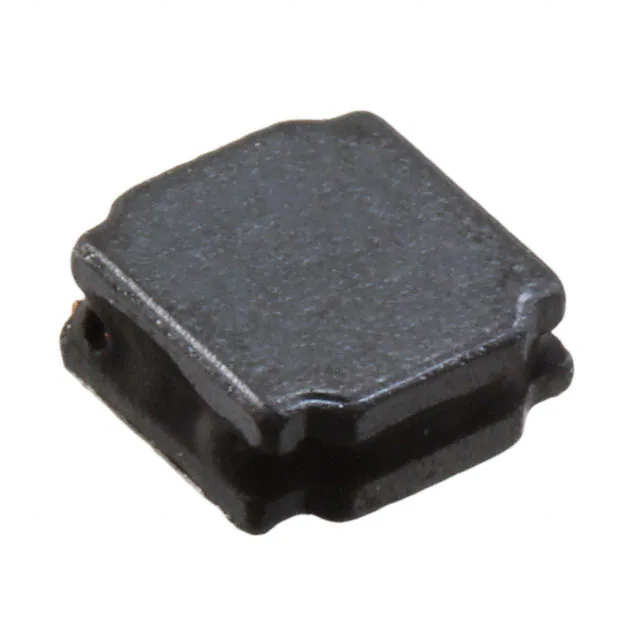

TYS40181R0N-10FIXED IND 1UH 2A 25 MOHM SMD |
54,271 |
|
规格书 |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 2 A | 4.8A | Shielded | 25mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
LQH43CN220K03LFIXED IND 22UH 420MA 600MOHM SMD |
22,734 |
|
规格书 |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 420 mA | - | Unshielded | 600mOhm Max | - | 15MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
NRS8040T6R8NJGJFIXED IND 6.8UH 3.7A 32.5MOHM SM |
21,199 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.7 A | 4.4A | Shielded | 32.5mOhm Max | - | 24MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

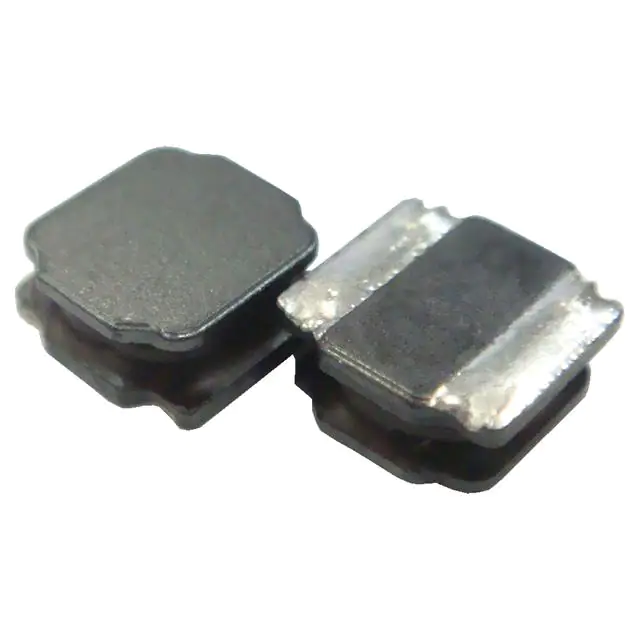

BWVS005050404R7M00FIXED IND 4.7UH 3.2A 32 MOHM SMD |
18,192 |
|
规格书 |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 3.2 A | 4.2A | Shielded | 32mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
BWVS005050406R8M00FIXED IND 6.8UH 2.4A 50 MOHM SMD |
12,181 |
|
规格书 |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 2.4 A | 3.3A | Shielded | 50mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
MEKK2520TR47MFIXED IND 470NH 4.8A 25 MOHM SMD |
11,175 |
|
规格书 |
MCOIL™, ME | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 4.8 A | 5.9A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
BWVS00505040100M00FIXED IND 10UH 2.2A 60 MOHM SMD |
9,615 |
|
规格书 |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 2.2 A | 2.8A | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
NRS8040T470MJGKFIXED IND 47UH 1.5A 140 MOHM SMD |
8,729 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 1.5A | Shielded | 140mOhm Max | - | 8MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
LMLP07A7M6R8DTASFIXED IND 6.8UH 4.5A 60MOHM SMD |
8,064 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 4.5 A | 6.5A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
NRS8030T6R8MJGJFIXED IND 6.8UH 3A 37.7 MOHM SMD |
7,379 |
|
规格书 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3 A | 3A | Shielded | 37.7mOhm Max | - | 32MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
NRS8040T4R7NJGJFIXED IND 4.7UH 4.1A 23.4MOHM SM |
6,833 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.1 A | 5.4A | Shielded | 23.4mOhm Max | - | 30MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
NRS8040T150MJGJFIXED IND 15UH 2.4A 65 MOHM SMD |
5,958 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.4 A | 2.9A | Shielded | 65mOhm Max | - | 16MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
BWVS005050203R3M00FIXED IND 3.3UH 2.8A 48 MOHM SMD |
5,448 |
|
规格书 |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 2.8 A | 3A | Shielded | 48mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
MEKK2520T2R2MFIXED IND 2.2UH 2.4A 97 MOHM SMD |
4,698 |
|
规格书 |
MCOIL™, ME | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.4 A | 3.1A | Shielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
NRS8030T220MJGJFIXED IND 22UH 1.9A 91 MOHM SMD |
4,303 |
|
规格书 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 1.75A | Shielded | 91mOhm Max | - | 16MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
BWVS005050204R7M00FIXED IND 4.7UH 2.2A 60 MOHM SMD |
4,286 |
|
规格书 |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 2.2 A | 2.2A | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
LMLP07A7M2R2DTASFIXED IND 2.2UH 8A 20 MOHM SMD |
4,070 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 2.2 µH | ±20% | 8 A | 12A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
TFM201210ALMAR56MTAAINDUCTORS FOR POWER CIRCUITS, AU |
3,536 |
|
规格书 |
TFM-ALMA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 560 nH | ±20% | 2.8 A | 3A | Shielded | 49mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
BWVS00505040220M00FIXED IND 22UH 1.4A 135 MOHM SMD |
3,152 |
|
规格书 |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1.4 A | 1.8A | Shielded | 135mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
