固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

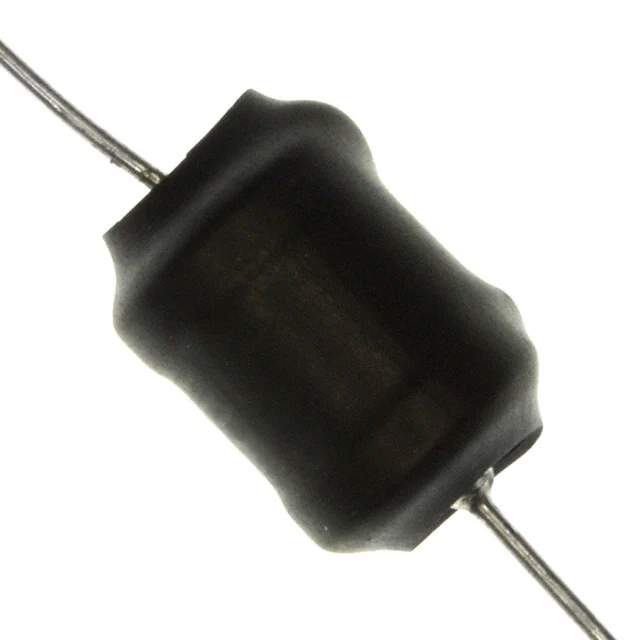

18154CFIXED IND 150UH 1.1A 165MOHM TH Murata Power Solutions Inc. |
0 |
|
规格书 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 150 µH | ±10% | 1.1 A | - | Unshielded | 165mOhm Max | 47 @ 100kHz | 4.4MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18155CFIXED IND 1.5MH 330MA 1.5 OHM TH Murata Power Solutions Inc. |
0 |
|
规格书 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 1.5 mH | ±10% | 330 mA | - | Unshielded | 1.5Ohm Max | 107 @ 50kHz | 1.3MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18225CFIXED IND 2.2MH 300MA 2.2 OHM TH Murata Power Solutions Inc. |
0 |
|
规格书 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 2.2 mH | ±10% | 300 mA | - | Unshielded | 2.2Ohm Max | 108 @ 50kHz | 1.1MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18254CFIXED IND 250UH 800MA 255MOHM TH Murata Power Solutions Inc. |
0 |
|
规格书 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 250 µH | ±10% | 800 mA | - | Unshielded | 255mOhm Max | 50 @ 100kHz | 3.7MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18333CFIXED IND 33UH 2A 40 MOHM TH Murata Power Solutions Inc. |
0 |
|
规格书 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 33 µH | ±10% | 2 A | - | Unshielded | 40mOhm Max | 48 @ 500kHz | 11.5MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18335CFIXED IND 3.3MH 220MA 3.5 OHM TH Murata Power Solutions Inc. |
0 |
|
规格书 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 3.3 mH | ±10% | 220 mA | - | Unshielded | 3.5Ohm Max | 143 @ 50kHz | 800kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18474CFIXED IND 470UH 600MA 465MOHM TH Murata Power Solutions Inc. |
0 |
|
规格书 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 470 µH | ±10% | 600 mA | - | Unshielded | 465mOhm Max | 56 @ 100kHz | 2.2MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18475CFIXED IND 4.7MH 200MA 4.6 OHM TH Murata Power Solutions Inc. |
0 |
|
规格书 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 4.7 mH | ±10% | 200 mA | - | Unshielded | 4.6Ohm Max | 128 @ 40kHz | 700kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18684CFIXED IND 680UH 530MA 630MOHM TH Murata Power Solutions Inc. |
0 |
|
规格书 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 680 µH | ±10% | 530 mA | - | Unshielded | 630mOhm Max | 55 @ 100kHz | 2MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18685CFIXED IND 6.8MH 150MA 7 OHM TH Murata Power Solutions Inc. |
0 |
|
规格书 |
1800 | Axial | Tray | Obsolete | Wirewound | - | 6.8 mH | ±10% | 150 mA | - | Unshielded | 7Ohm Max | 144 @ 40kHz | 600kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
