固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
82474CFIXED IND 470UH 70MA 16.8OHM SMD Murata Power Solutions Inc. |
2,415 |
|
规格书 |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±10% | 70 mA | - | Unshielded | 16.8Ohm Max | 50 @ 800kHz | 9MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
45153CFIXED IND 15UH 1.8A 120MOHM SMD Murata Power Solutions Inc. |
995 |
|
规格书 |
4500 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 1.8 A | - | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.140" (3.55mm) |
|
48681SCFIXED IND 680UH 660MA 1.25OHM SM Murata Power Solutions Inc. |
490 |
|
规格书 |
4800S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 660 mA | - | Shielded | 1.25Ohm Max | 18 @ 800kHz | 4MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.236" (6.00mm) |
|

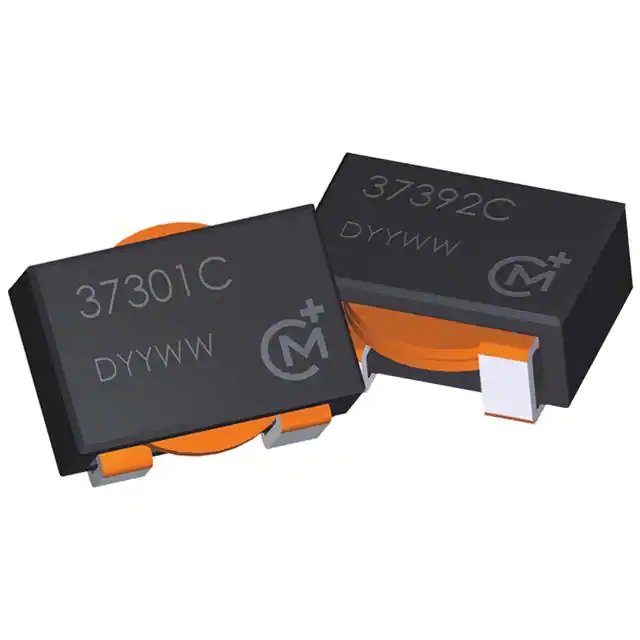

37392CFIXED IND 3.9UH 10A 4.2 MOHM SMD Murata Power Solutions Inc. |
535 |
|
规格书 |
3700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±10% | 10 A | 12A | Unshielded | 4.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.453" W (14.50mm x 11.50mm) | 0.268" (6.80mm) |
|
30900DCIND 90NH 40A SM BEAD 11X10X8 Murata Power Solutions Inc. |
300 |
|
规格书 |
3000D | Nonstandard | Tape & Reel (TR) | Active | - | - | 90 nH | ±10% | 40 A | 80A | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.406" W (11.00mm x 10.30mm) | 0.299" (7.60mm) |
|
|
30111DCIND 105NH 40A SM BEAD 11X10X8 Murata Power Solutions Inc. |
300 |
|
规格书 |
3000D | Nonstandard | Tape & Reel (TR) | Active | - | - | 105 nH | ±10% | 40 A | 72A | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.406" W (11.00mm x 10.30mm) | 0.299" (7.60mm) |
|
|
30131DCIND 125NH 40A SM BEAD 11X10X8 Murata Power Solutions Inc. |
300 |
|
规格书 |
3000D | Nonstandard | Tape & Reel (TR) | Active | - | - | 125 nH | ±10% | 40 A | 60A | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.406" W (11.00mm x 10.30mm) | 0.299" (7.60mm) |
|
|
30161DCIND 155NH 40A SM BEAD 11X10X8 Murata Power Solutions Inc. |
300 |
|
规格书 |
3000D | Nonstandard | Tape & Reel (TR) | Active | - | - | 155 nH | ±10% | 40 A | 46A | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.406" W (11.00mm x 10.30mm) | 0.299" (7.60mm) |
|
15153CFIXED IND 15UH 7.44A 15.5MOHM TH Murata Power Solutions Inc. |
120 |
|
规格书 |
1500 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 15 µH | ±10% | 7.44 A | - | Unshielded | 15.5mOhm Max | 109 @ 1MHz | 19MHz | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.661" Dia (16.80mm) | 0.839" (21.30mm) |
|
83232CFIXED IND 2.3UH 1.4A 86 MOHM SMD Murata Power Solutions Inc. |
1,817 |
|
规格书 |
8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.3 µH | ±20% | 1.4 A | 2.35A | Unshielded | 86mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
