固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW04AN2N2C00DFIXED IND 2.2NH 1.1A 40MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQW04 | 0302 (0804 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 2.2 nH | ±0.2nH | 1.1 A | - | Unshielded | 40mOhm Max | 21 @ 250MHz | 12GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 03015 (0804 Metric) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.018" (0.45mm) |
|
LQH3NPN101MGRLFIXED IND 100UH 220MA 3.84OHM SM Murata Electronics |
0 |
|
规格书 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 220 mA | 190mA | Shielded | 3.84Ohm Max | - | 5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
LQH3NPN221MGRLFIXED IND 220UH 150MA 9 OHM SMD Murata Electronics |
0 |
|
规格书 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 150 mA | 120mA | Shielded | 9Ohm Max | - | 2MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
LQH3NPN251MGRLFIXED IND 250UH 140MA 9.6OHM SMD Murata Electronics |
0 |
|
规格书 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 250 µH | ±20% | 140 mA | 110mA | Shielded | 9.6Ohm Max | - | 2MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
LQH32PH1R0NN0LFIXED IND 1UH 2.05A 54 MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.05 A | 2.3A | Shielded | 54mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
LQH32PH1R5NN0LFIXED IND 1.5UH 1.75A 68.4 MOHM Murata Electronics |
0 |
|
规格书 |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.75 A | 1.75A | Shielded | 68.4mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
LQH32PH3R3NN0LFIXED IND 3.3UH 1.2A 144MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.2 A | 1.25A | Shielded | 144mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
LQH32PHR47NN0LFIXED IND 470NH 2.55A 36MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 2.55 A | 3.4A | Shielded | 36mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LQH55PN1R2NR0LFIXED IND 1.2UH 2.9A 21 MOHM SMD Murata Electronics |
0 |
|
- |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 1.2 µH | ±30% | 2.9 A | 2.6A | Shielded | 21mOhm | - | 80MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|

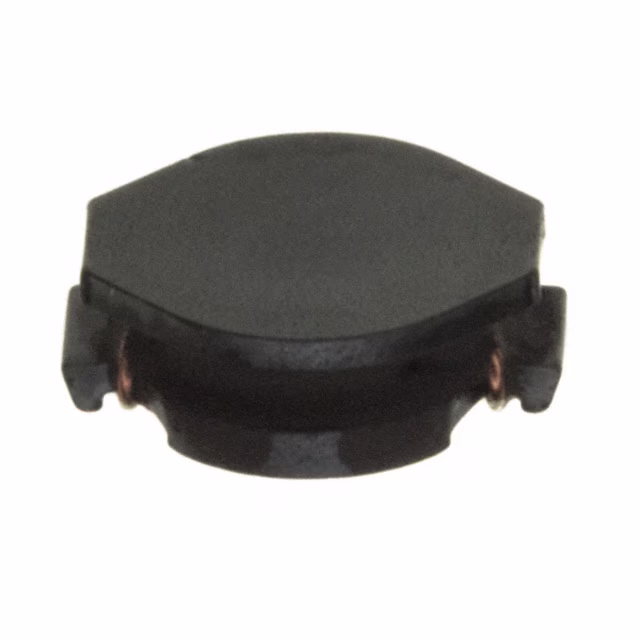

LQH55PN2R2NR0LFIXED IND 2.2UH 2.5A 31 MOHM SMD Murata Electronics |
0 |
|
- |
LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 2.5 A | 2.1A | Shielded | 31mOhm | - | 60MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.073" (1.85mm) |
