固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
#A915AY-680M=P3FIXED IND 68UH 520MA 0.525OHM SM Murata Electronics |
0 |
|
规格书 |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 520 mA | 510mA | Shielded | 525mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
|
#A915AY-330M=P3FIXED IND 33UH 750MA 0.257OHM SM Murata Electronics |
0 |
|
规格书 |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 750 mA | 720mA | Shielded | 257mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
|
#A915BY-100M=P3FIXED IND 10UH 1.5A 0.067OHM SMD Murata Electronics |
0 |
|
规格书 |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.5 A | 740mA | Shielded | 67mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|

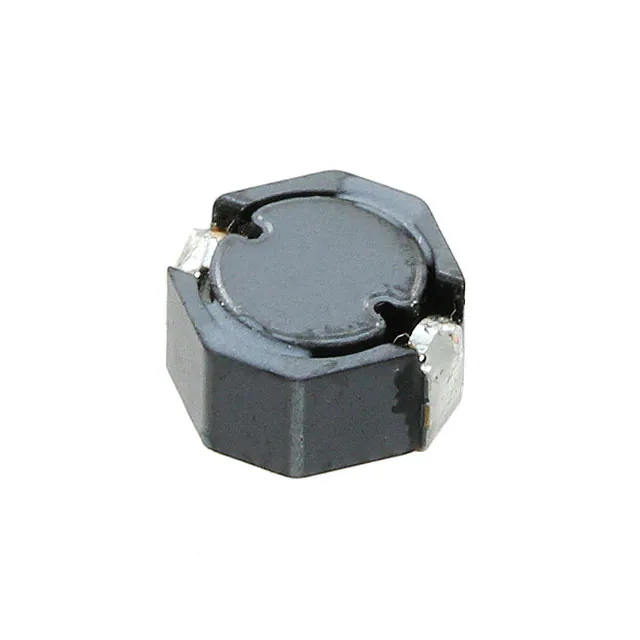

#A915AY-101M=P3FIXED IND 100UH 440MA 0.801OHM Murata Electronics |
0 |
|
规格书 |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 440 mA | 430mA | Shielded | 801mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
|
#A915BY-4R7M=P3FIXED IND 4.7UH 2.18A 0.035OHM Murata Electronics |
0 |
|
规格书 |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.18 A | 1.13A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
|
#A915AY-470M=P3FIXED IND 47UH 640MA 0.352OHM SM Murata Electronics |
0 |
|
规格书 |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 640 mA | 620mA | Shielded | 352mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
|
#A915BY-330M=P3FIXED IND 33UH 880MA 0.206OHM SM Murata Electronics |
0 |
|
规格书 |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 880 mA | 410mA | Shielded | 206mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
|
#A915BY-101M=P3FIXED IND 100UH 510MA 0.569OHM Murata Electronics |
0 |
|
规格书 |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 510 mA | 260mA | Shielded | 569mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
|
#A915BY-221M=P3FIXED IND 220UH 330MA 1.2OHM SMD Murata Electronics |
0 |
|
规格书 |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 330 mA | 180mA | Shielded | 1.2Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
|
#A915BY-151M=P3FIXED IND 150UH 380MA 0.94OHM SM Murata Electronics |
0 |
|
规格书 |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 380 mA | 210mA | Shielded | 940mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
