固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18AS5N6G0CDFIXED IND 5.6NH 700MA 0.075OHM Murata Electronics |
0 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 5.6 nH | ±2% | 700 mA | - | Unshielded | 75mOhm Max | 26 @ 250MHz | 4.76GHz | - | -40°C ~ 85°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18AS5N6J0CDFIXED IND 5.6NH 700MA 0.075OHM Murata Electronics |
0 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 5.6 nH | ±5% | 700 mA | - | Unshielded | 75mOhm Max | 26 @ 250MHz | 4.76GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18AS3N3G0CDFIXED IND 3.3NH 700MA 0.045OHM Murata Electronics |
0 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 3.3 nH | ±2% | 700 mA | - | Unshielded | 45mOhm Max | 35 @ 250MHz | 5.9GHz | - | -40°C ~ 85°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18AS47NG0CDFIXED IND 47NH 600MA 0.28OHM SMD Murata Electronics |
0 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 47 nH | ±2% | 600 mA | - | Unshielded | 280mOhm Max | 38 @ 200MHz | 2GHz | - | -40°C ~ 85°C | 200 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

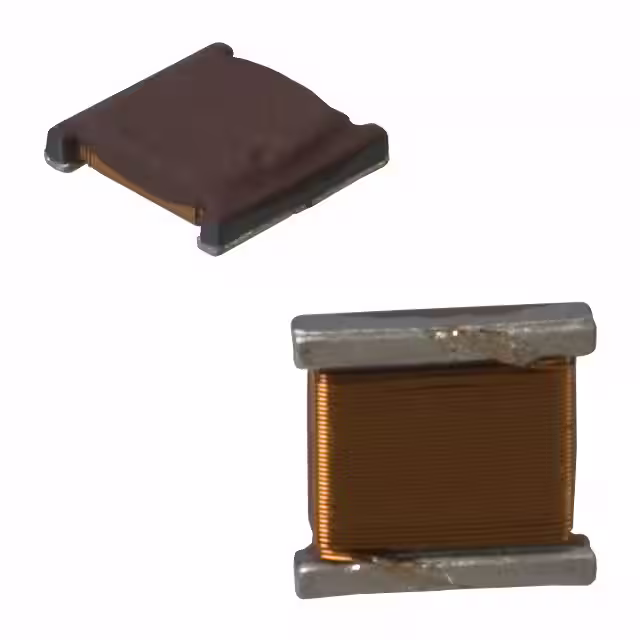

LQY33PN4R7M02LFIXED IND 4.7UH 600MA 530MOHM SM Murata Electronics |
0 |
|
规格书 |
LQY33 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 600 mA | - | Unshielded | 530mOhm | - | 160MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.037" (0.95mm) |
|
|
LQY33PN100M02LFIXED IND 10UH 420MA 1 OHM SMD Murata Electronics |
0 |
|
规格书 |
LQY33 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 420 mA | - | Unshielded | 1Ohm | - | 120MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.037" (0.95mm) |
|
LQH44PZ470MGRLFIXED IND Murata Electronics |
0 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LQW15AN8N8J8ZDFIXED IND 8.8NH 1.42A 0.07OHM SM Murata Electronics |
85 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.8 nH | ±5% | 1.42 A | - | Unshielded | 70mOhm Max | 31 @ 250MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN5N2D8ZDFIXED IND 5.2NH 1.77A 0.04OHM SM Murata Electronics |
61 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 5.2 nH | ±0.5nH | 1.77 A | - | Unshielded | 40mOhm Max | 35 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN4N9C80DFIXED IND 4.9NH 1.2A 0.071OHM SM Murata Electronics |
0 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.9 nH | ±0.2nH | 1.2 A | - | Unshielded | 71mOhm Max | 27 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
