固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQM2HPN2R2MGHLFIXED IND 2.2UH 1.5A 138MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.5A | Shielded | 138mOhm Max | - | 30MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQW15AN2N5D8ZDFIXED IND 2.5NH 2.1A 0.03OHM SMD Murata Electronics |
0 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 2.5 nH | ±0.5nH | 2.1 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 15.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN3N8D8ZDFIXED IND 3.8NH 1.95A 0.03OHM SM Murata Electronics |
0 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.8 nH | ±0.5nH | 1.95 A | - | Unshielded | 30mOhm Max | 35 @ 250MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN9N7J8ZDFIXED IND 9.7NH 1.4A 0.081OHM SM Murata Electronics |
0 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 9.7 nH | ±5% | 1.4 A | - | Unshielded | 81mOhm Max | 33 @ 250MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
.jpg)
|

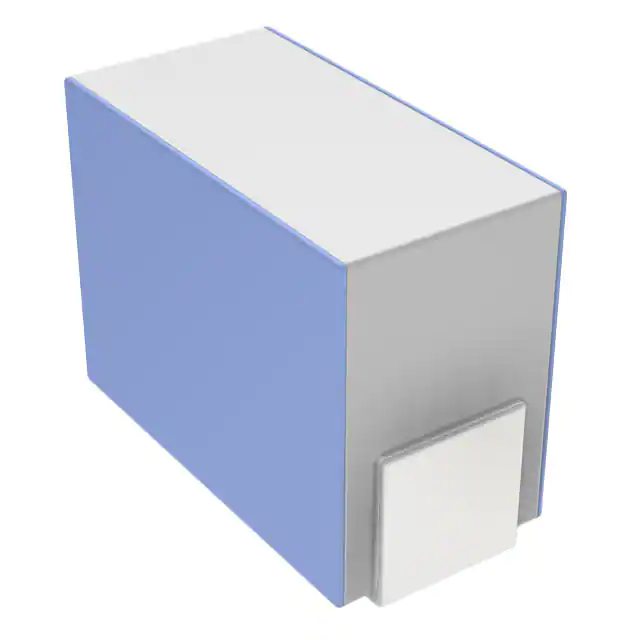

LQP02HQ2N4W02LFIXED IND 2.4NH 450MA 200MOHM SM Murata Electronics |
0 |
|
规格书 |
LQP03 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 2.4 nH | ±0.05nH | 450 mA | - | Unshielded | 200mOhm Max | 14 @ 500MHz | 9.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQM2HPN1R5MGHLFIXED IND 1.5UH 2A 81 MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 2 A | 1.5A | Shielded | 81mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
.jpg)
|

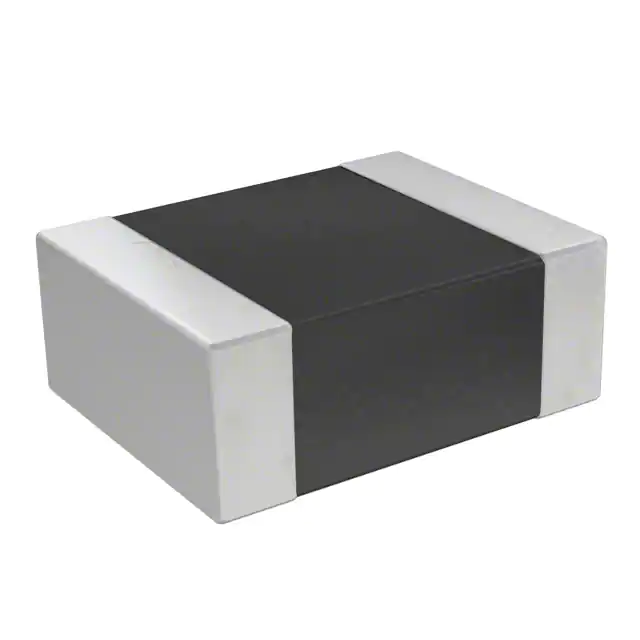

LQM2HPNR47MGHLFIXED IND 470NH 2.6A 50 MOHM SMD Murata Electronics |
0 |
|
规格书 |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 2.6 A | 4.5A | Shielded | 50mOhm Max | - | 80MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQM2HPN2R2MCHLFIXED IND Murata Electronics |
0 |
|
规格书 |
* | - | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LQH44PZ4R7MGRLFIXED IND 4.7UH 1.6A 130MOHM SMD Murata Electronics |
0 |
|
- |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.6 A | 1.2A | Shielded | 130mOhm | - | 17MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LQH44PZ100MGRLFIXED IND Murata Electronics |
0 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
