| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDH6045C-221MB=P3FIXED IND 220UH 480MA 700MOHM SM Murata Electronics |
0 |
|
规格书 |
MDH6045C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 480 mA | 360mA | Shielded | 700mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
MDH6045C-331MB=P3FIXED IND 330UH 380MA 970MOHM SM Murata Electronics |
0 |
|
规格书 |
MDH6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 380 mA | 300mA | Shielded | 970mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
MDH6045C-470MB=P3FIXED IND 47UH 1.1A 130MOHM SMD Murata Electronics |
0 |
|
规格书 |
MDH6045C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.1 A | 760mA | Shielded | 130mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
MDH6045C-680MB=P3FIXED IND 68UH 840MA 200MOHM SMD Murata Electronics |
0 |
|
规格书 |
MDH6045C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 840 mA | 680mA | Shielded | 200mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
DFEG7030D-1R5M=P3FIXED IND 1.5UH 7.6A 15MOHM SMD Murata Electronics |
0 |
|
规格书 |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 1.5 µH | ±20% | 7.6 A | 9.7A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEG7030D-220M=P3FIXED IND 22UH 1.9A 198MOHM SMD Murata Electronics |
0 |
|
规格书 |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 22 µH | ±20% | 1.9 A | 2.7A | Shielded | 198mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEG7030D-5R6M=P3FIXED IND 5.6UH 3.8A 54MOHM SMD Murata Electronics |
0 |
|
规格书 |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 5.6 µH | ±20% | 3.8 A | 5.4A | Shielded | 54mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
DFEG7030D-6R8M=P3FIXED IND 6.8UH 3.5A 59MOHM SMD Murata Electronics |
0 |
|
规格书 |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 6.8 µH | ±20% | 3.5 A | 5.2A | Shielded | 59mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
MDH7045C-101MA=P3FIXED IND 100UH 800MA 290MOHM SM Murata Electronics |
0 |
|
规格书 |
MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 800 mA | 750mA | Shielded | 290mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|

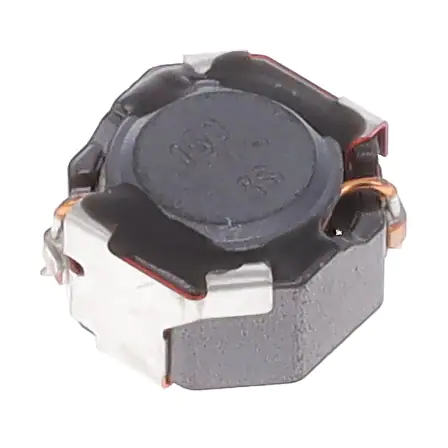

MDH7045C-150MA=P3FIXED IND 15UH 1.8A 55 MOHM SMD Murata Electronics |
0 |
|
规格书 |
MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 2A | Shielded | 55mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
