固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DFE201610E-100M=P2FIXED IND 10UH 650MA 780MOHM SMD |
28,621 |
|
规格书 |
DFE201610E | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 650 mA | 1A | Shielded | 780mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
B78108S1682K000FIXED IND 6.8UH 670MA 510MOHM TH |
26,233 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 670 mA | - | Unshielded | 510mOhm Max | 65 @ 7.96MHz | 75MHz | - | - | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1684J000FIXED IND 680UH 150MA 10 OHM TH |
26,127 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 150 mA | - | Unshielded | 10Ohm Max | 55 @ 796kHz | 1.9MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
NR6028T3R0NFIXED IND 3UH 3.4A 29.9 MOHM SMD |
23,179 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3 µH | ±30% | 3.4 A | 3.6A | Shielded | 29.9mOhm Max | - | 55MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
NR3015T150MFIXED IND 15UH 560MA 432MOHM SMD |
22,648 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 560 mA | 560mA | Shielded | 432mOhm Max | - | 23MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
ASPI-2515-3R3M-T2FIXED IND 3.3UH 1.3A 138MOHM SMD |
21,595 |
|
规格书 |
ASPI-2515 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.3 A | 1.35A | Shielded | 138mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
DFE252012F-6R8M=P2FIXED IND 6.8UH 1.2A 0.33OHM SMD |
20,021 |
|
规格书 |
DFE252012F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 1.2 A | 1.7A | Shielded | 330mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
DFE201610E-1R5M=P2FIXED IND 1.5UH 2.1A 91 MOHM SMD |
19,290 |
|
规格书 |
DFE201610E | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 2.1 A | 2.9A | Shielded | 91mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
B78108S1223K000FIXED IND 22UH 560MA 740 MOHM TH |
18,724 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 560 mA | - | Unshielded | 740mOhm Max | 55 @ 2.52MHz | 13MHz | - | - | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
NRS3015T2R2MNGHVFIXED IND 2.2UH 1.5A 69.6MOHM SM |
18,686 |
|
规格书 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.48A | Shielded | 69.6mOhm Max | - | 64MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
B78108S1185J000FIXED IND 1.8MH 95MA 26 OHM TH |
16,305 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±5% | 95 mA | - | Unshielded | 26Ohm Max | 50 @ 252kHz | 1.2MHz | - | - | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1472K000FIXED IND 4.7UH 820MA 340MOHM TH |
16,167 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 820 mA | - | Unshielded | 340mOhm Max | 60 @ 7.96MHz | 95MHz | - | - | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1222K000FIXED IND 2.2UH 1A 250 MOHM TH |
15,179 |
|
规格书 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 1 A | - | Unshielded | 250mOhm Max | 55 @ 7.96MHz | 140MHz | - | - | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
LQH32PN2R2NN0LFIXED IND 2.2UH 1.6A 91.2MOHM SM |
13,782 |
|
规格书 |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.6 A | 1.55A | Shielded | 91.2mOhm Max | - | 70MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
NR3015T6R8MFIXED IND 6.8UH 880MA 192MOHM SM |
13,394 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 880 mA | 870mA | Shielded | 192mOhm Max | - | 36MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
DFE252012F-R33M=P2FIXED IND 330NH 5.1A 0.019OHM SM |
12,599 |
|
规格书 |
DFE252012F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±20% | 5.1 A | 7.6A | Shielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

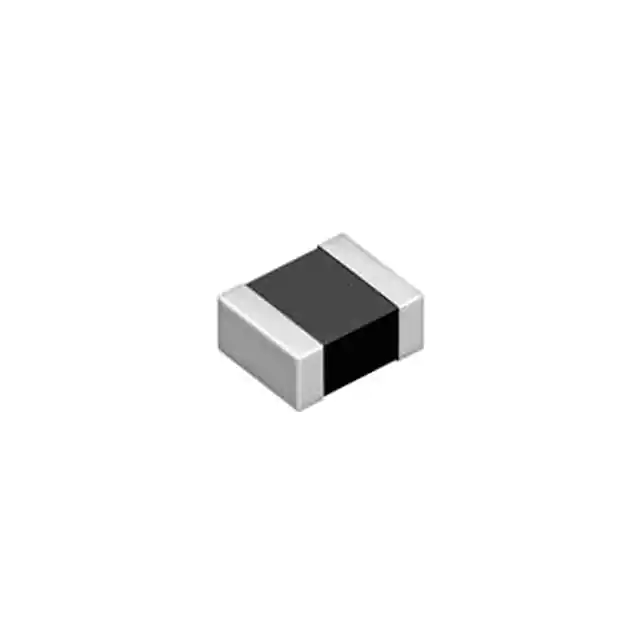

DFE252010F-2R2M=P2FIXED IND 2.2UH 2.3A 0.097OHM SM |
12,513 |
|
规格书 |
DFE252010F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 2.3 A | 3.1A | Shielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQM31PN1R5M00LFIXED IND 1.5UH 1A 175 MOHM SMD |
11,993 |
|
规格书 |
LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.5 µH | ±20% | 1 A | - | Shielded | 175mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|
|
NR6028T150MFIXED IND 15UH 1.8A 123.5MOHM SM |
11,765 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 1.6A | Shielded | 123.5mOhm Max | - | 17MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

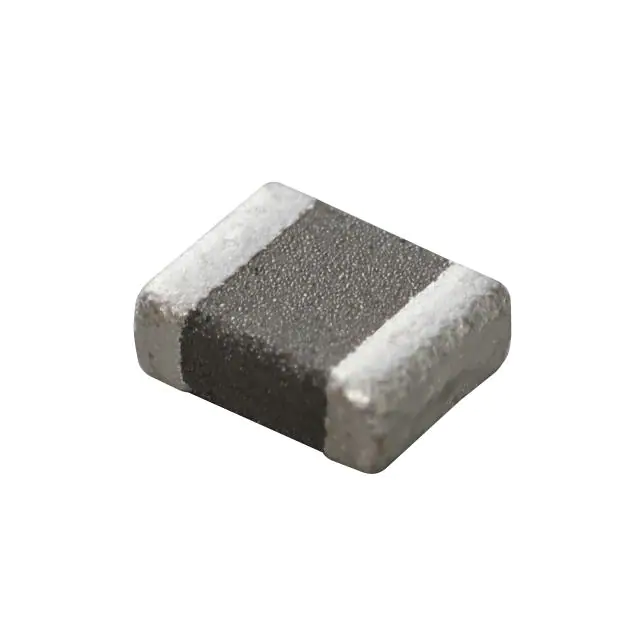

DFE252010F-R22M=P2FIXED IND 220NH 5A 0.016OHM SMD |
11,759 |
|
规格书 |
DFE252010F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±20% | 5 A | 7.2A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
