固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

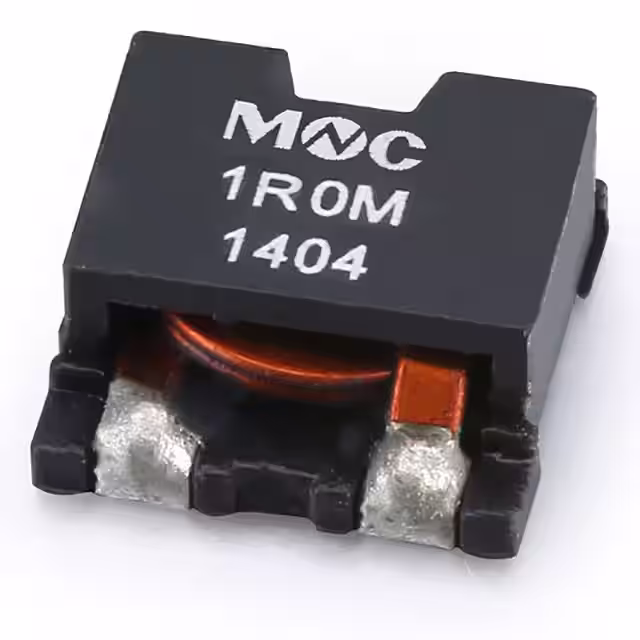

MCEP125SG1R0MFIXED IND 1UH 16.5A 2.5 MOHM SMD Mentech Technology USA Inc. |
450 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1 µH | ±20% | 16.5 A | 20A | - | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" L x 0.492" W (12.70mm x 12.50mm) | 0.217" (5.50mm) |
|

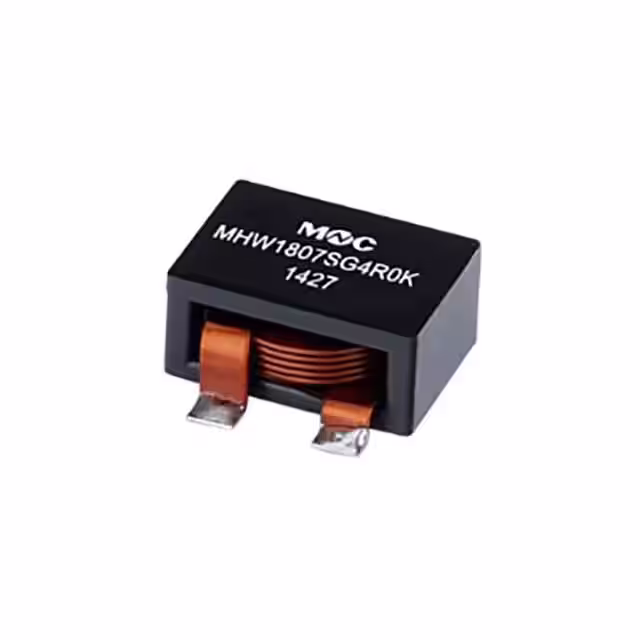

MHW1807SG4R0KFIXED IND 4UH 18A 3 MOHM SMD Mentech Technology USA Inc. |
250 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 4 µH | ±10% | 18 A | 18A | - | 3mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.800" L x 0.748" W (20.30mm x 19.00mm) | 0.335" (8.50mm) |
|

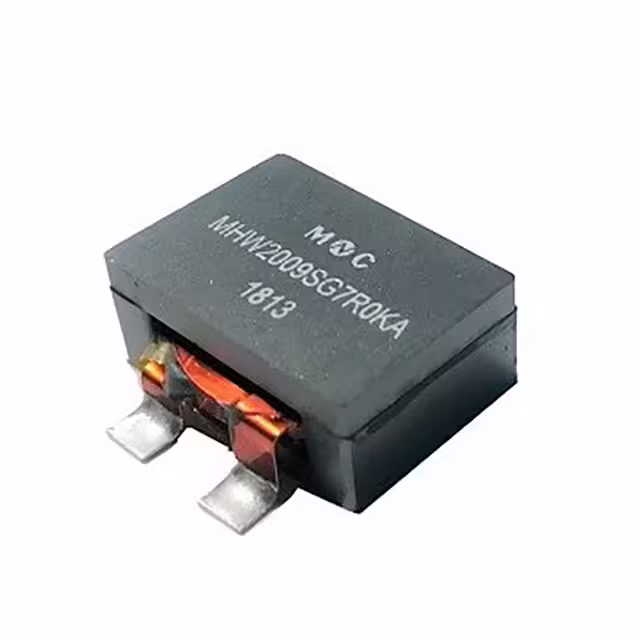

MHW2009SG7R0KAFIXED IND 7UH 7A 7 MOHM SMD Mentech Technology USA Inc. |
500 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 7 µH | ±10% | 7 A | 18A | - | 7mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.858" L x 0.835" W (21.80mm x 21.20mm) | 0.323" (8.20mm) |
|

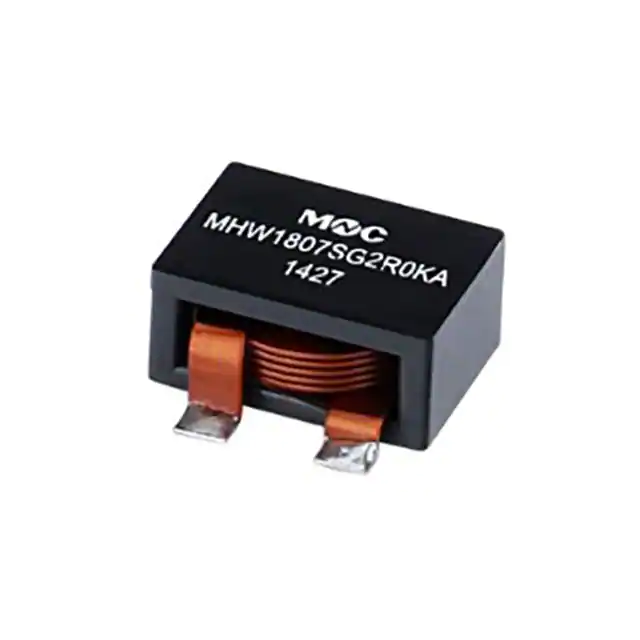

MHW1807SG2R0KAFIXED IND 2UH 25A 3 MOHM SMD Mentech Technology USA Inc. |
250 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 2 µH | ±10% | 25 A | 32A | - | 3mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.800" L x 0.748" W (20.30mm x 19.00mm) | 0.335" (8.50mm) |
|

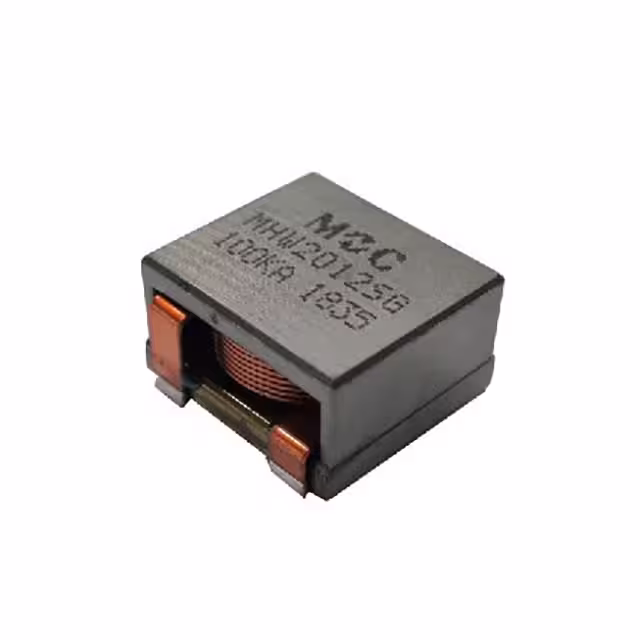

MHW2012SG100KAFIXED IND 10UH 10A 3.9 MOHM SMD Mentech Technology USA Inc. |
120 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 10 µH | ±10% | 10 A | 21A | - | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.492" (12.50mm) |
|

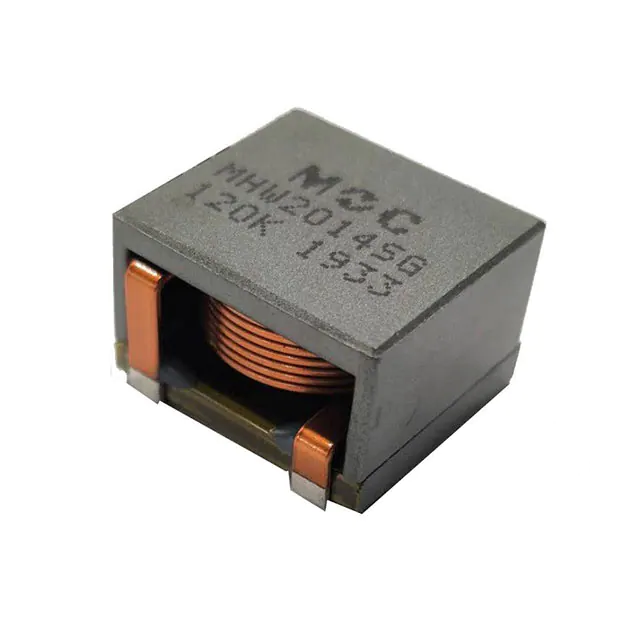

MHW2014SG120KFIXED IND 12UH 12A 5 MOHM SMD Mentech Technology USA Inc. |
65 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 12 µH | ±10% | 12 A | 22A | - | 5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.555" (14.10mm) |
|
MHW2618HBSG100KFIXED IND 10UH 28A 2.86 MOHM SMD Mentech Technology USA Inc. |
40 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 10 µH | ±10% | 28 A | 31.2A | - | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.700" (17.78mm) |
|
MHW2618HBSG4R7KFIXED IND 4.7UH 28A 2.86MOHM SMD Mentech Technology USA Inc. |
40 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 4.7 µH | ±10% | 28 A | 61.2A | - | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.700" (17.78mm) |
|

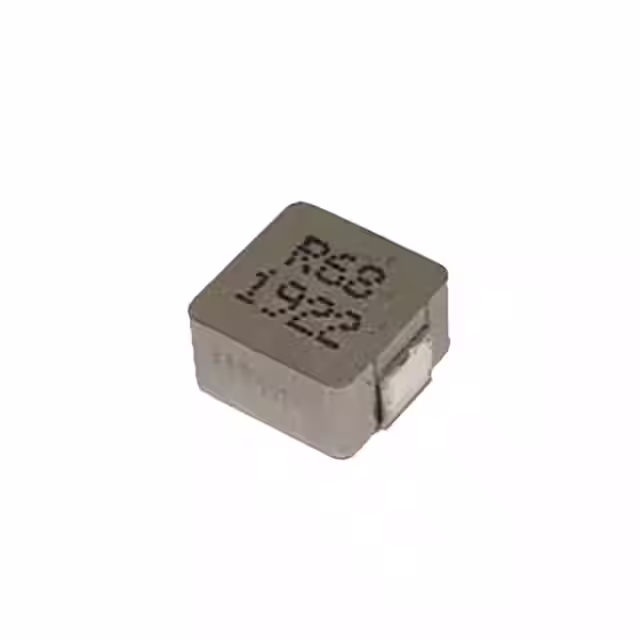

MHA0530NSGR68MFIXED IND 680NH 8.5A 9.8MOHM SMD Mentech Technology USA Inc. |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 8.5 A | 12A | - | 9.8mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.110" (2.80mm) |
|

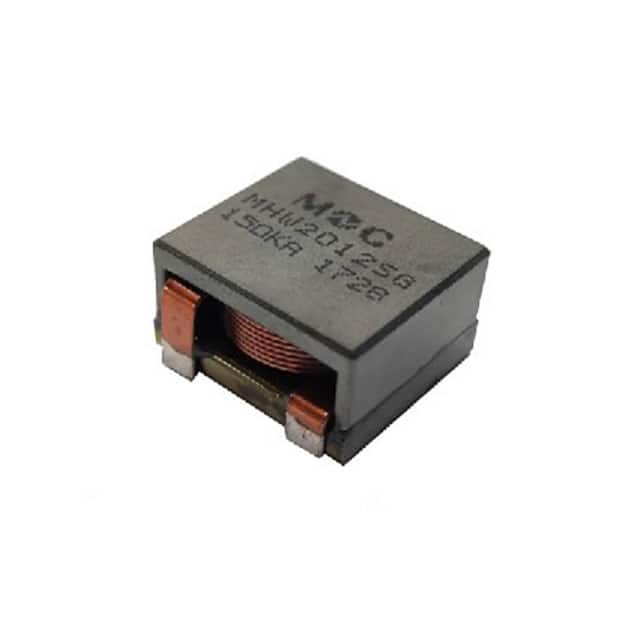

MHW2012SG150KAFIXED IND 15UH 10A 3.9 MOHM SMD Mentech Technology USA Inc. |
0 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 15 µH | ±10% | 10 A | 15.3A | - | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.492" (12.50mm) |
