固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,5x2,0x1,00mm.jpg)
|
CIGW252010GLR47MNEFIXED IND 470NH 5.9A 20MOHM SMD |
8,032 |
|
规格书 |
CIGW | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 5.9 A | 5.5A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
MLF2012DR27JTD25FIXED IND 270NH 250MA 350MOHM SM |
7,847 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 270 nH | ±5% | 250 mA | - | Shielded | 350mOhm Max | 20 @ 25MHz | 250MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
MLP2016H2R2MT0S1FIXED IND 2.2UH 1.2A 137.5 MOHM |
7,735 |
|
规格书 |
MLP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Shielded | 137.5mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LQW18AN8N2C8ZDFIXED IND 8.2NH 1.6A 0.052OHM SM |
7,685 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.2 nH | ±0.2nH | 1.6 A | - | Unshielded | 52mOhm Max | 38 @ 250MHz | 4.75GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|

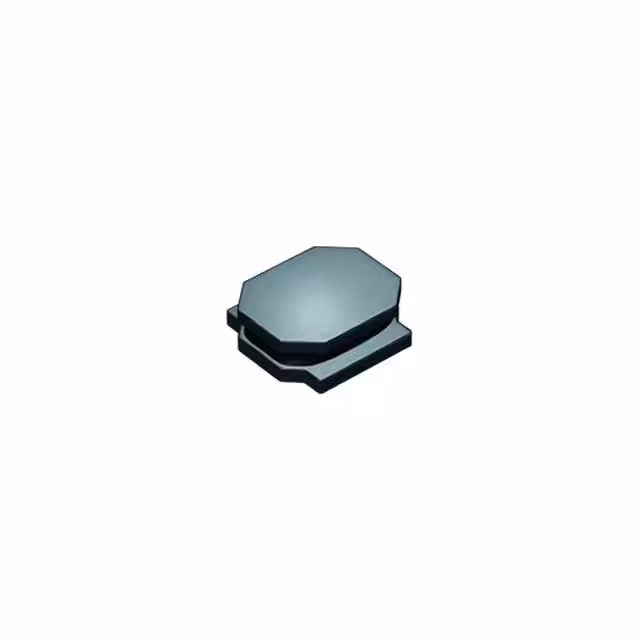

LSXND4040MKL470MDGFIXED IND 47UH 350MA 924MOHM SMD |
7,664 |
|
规格书 |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 420 mA | 350mA | Shielded | 924mOhm Max | - | 12MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
.jpg)
|
LQG15WH1N4B02DFIXED IND 1.4NH 1A 0.04OHM SMD |
7,608 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.4 nH | ±0.1nH | 1 A | - | Unshielded | 40mOhm Max | 23 @ 250MHz | 12GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LQG15WH2N7B02DFIXED IND 2.7NH 900MA 0.07OHM SM |
7,544 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 2.7 nH | ±0.1nH | 900 mA | - | Unshielded | 70mOhm Max | 23 @ 250MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
VLS201612HBX-100M-1FIXED IND 10UH 760MA 756MOHM SMD |
7,391 |
|
规格书 |
VLS-HBX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 760 mA | 670mA | Shielded | 756mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
LQW18AN28NG8ZDFIXED IND 28NH 1.2A 0.098OHM SMD |
7,226 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 28 nH | ±2% | 1.2 A | - | Unshielded | 98mOhm Max | 40 @ 250MHz | 3.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
NRS4012T3R3MDGJFIXED IND 3.3UH 1.7A 84 MOHM SMD |
6,694 |
|
规格书 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.7 A | 1.4A | Shielded | 84mOhm Max | - | 60MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
LQW18AN27NG8ZDFIXED IND 27NH 1.2A 0.098OHM SMD |
6,356 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 27 nH | ±2% | 1.2 A | - | Unshielded | 98mOhm Max | 40 @ 250MHz | 3.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQG15WH1N9B02DFIXED IND 1.9NH 1A 0.05OHM SMD |
6,150 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.9 nH | ±0.1nH | 1 A | - | Unshielded | 50mOhm Max | 23 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW18ANR15G8ZDFIXED IND 150NH 420MA 0.87OHM SM |
5,857 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 150 nH | ±2% | 420 mA | - | Unshielded | 870mOhm Max | 28 @ 150MHz | 1.58GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN47NG8ZDFIXED IND 47NH 830MA 0.23OHM SMD |
5,846 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 47 nH | ±2% | 830 mA | - | Unshielded | 230mOhm Max | 32 @ 200MHz | 2.7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18CNR33J0HDINDUCTOR FIXED 330NH 0603 |
5,825 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 nH | ±5% | 630 mA | - | Unshielded | 250mOhm Max | - | 600MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
MLF1608DR15JTD25FIXED IND 150NH 200MA 450MOHM SM |
5,627 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 150 nH | ±5% | 200 mA | - | Shielded | 450mOhm Max | 15 @ 25MHz | 350MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQG15WH3N6B02DFIXED IND 3.6NH 900MA 0.09OHM SM |
5,617 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 3.6 nH | ±0.1nH | 900 mA | - | Unshielded | 90mOhm Max | 23 @ 250MHz | 5.5GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW18AN10NG8ZDFIXED IND 10NH 1.6A 0.052OHM SMD |
5,463 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 10 nH | ±2% | 1.6 A | - | Unshielded | 52mOhm Max | 38 @ 250MHz | 4.75GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18CNR47J0HDINDUCTOR FIXED 470NH 0603 |
5,298 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±5% | 500 mA | - | Unshielded | 450mOhm Max | - | 555MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLF1608A1R0JTD25FIXED IND 1UH 50MA 500 MOHM SMD |
5,290 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±5% | 50 mA | - | Shielded | 500mOhm Max | 35 @ 10MHz | 120MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
