固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

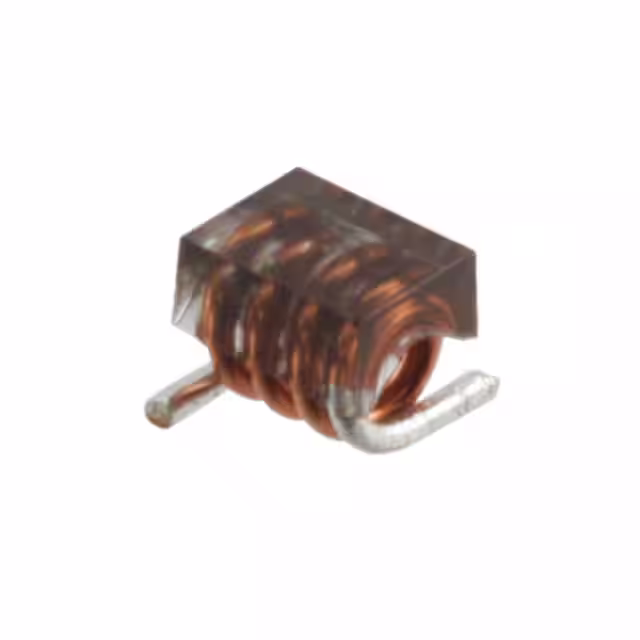

AL05A5N45GTRFIXED IND 5.45NH 1.6A 8 MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
AL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 5.45 nH | ±2% | 1.6 A | - | Unshielded | 8mOhm Max | 100 @ 800MHz | 7GHz | - | -40°C ~ 125°C | 800 MHz | - | Surface Mount | - | 0.087" L x 0.056" W (2.21mm x 1.42mm) | 0.060" (1.52mm) |
|
HLC023R9BTTRFIXED IND 3.9NH 441MA 400MOHM SM KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 3.9 nH | ±0.1nH | 441 mA | - | Unshielded | 400mOhm Max | 28 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC021R1BTTRFIXED IND 1.1NH 782MA 100MOHM SM KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.1 nH | ±0.1nH | 782 mA | - | Unshielded | 100mOhm Max | 24 @ 450MHz | 20GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC021R2BTTRFIXED IND 1.2NH 751MA 110MOHM SM KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.2 nH | ±0.1nH | 751 mA | - | Unshielded | 110mOhm Max | 24 @ 450MHz | 20GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC021R3BTTRFIXED IND 1.3NH 725MA 130MOHM SM KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.3 nH | ±0.1nH | 725 mA | - | Unshielded | 130mOhm Max | 25 @ 450MHz | 19GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC021R5BTTRFIXED IND 1.5NH 679MA 150MOHM SM KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.5 nH | ±0.1nH | 679 mA | - | Unshielded | 150mOhm Max | 25 @ 450MHz | 19GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC022R4BTTRFIXED IND 2.4NH 549MA 200MOHM SM KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2.4 nH | ±0.1nH | 549 mA | - | Unshielded | 200mOhm Max | 27 @ 450MHz | 15GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC022R7BTTRFIXED IND 2.7NH 521MA 250MOHM SM KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2.7 nH | ±0.1nH | 521 mA | - | Unshielded | 250mOhm Max | 27 @ 450MHz | 14GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC023R3BTTRFIXED IND 3.3NH 476MA 340MOHM SM KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 3.3 nH | ±0.1nH | 476 mA | - | Unshielded | 340mOhm Max | 27 @ 450MHz | 11GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC023R6BTTRFIXED IND 3.6NH 457MA 350MOHM SM KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 3.6 nH | ±0.1nH | 457 mA | - | Unshielded | 350mOhm Max | 27 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
