固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HLC021R0CTTROPC INDUCTORS KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 nH | ±0.2nH | 800 mA | - | Unshielded | 100mOhm Max | 25 @ 450MHz | 20GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HL023R3CTTROPC INDUCTORS KYOCERA AVX |
0 |
|
- |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.3 nH | ±0.2nH | 200 mA | - | Unshielded | 340mOhm Max | 15 @ 450MHz | 7GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC023R9CTTROPC INDUCTORS KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.9 nH | ±0.2nH | 441 mA | - | Unshielded | 400mOhm Max | 28 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HL023R9CTTROPC INDUCTORS KYOCERA AVX |
0 |
|
- |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.9 nH | ±0.2nH | 180 mA | - | Unshielded | 400mOhm Max | 15 @ 450MHz | 7GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC022R4BTTR\500OPC INDUCTORS KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2.4 nH | ±0.1nH | 549 mA | - | Unshielded | 200mOhm Max | 27 @ 450MHz | 15GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLC020R8BTTROPC INDUCTORS KYOCERA AVX |
0 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 800 pH | ±0.1nH | 875 mA | - | Unshielded | 100mOhm Max | 30 @ 450MHz | 20GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|

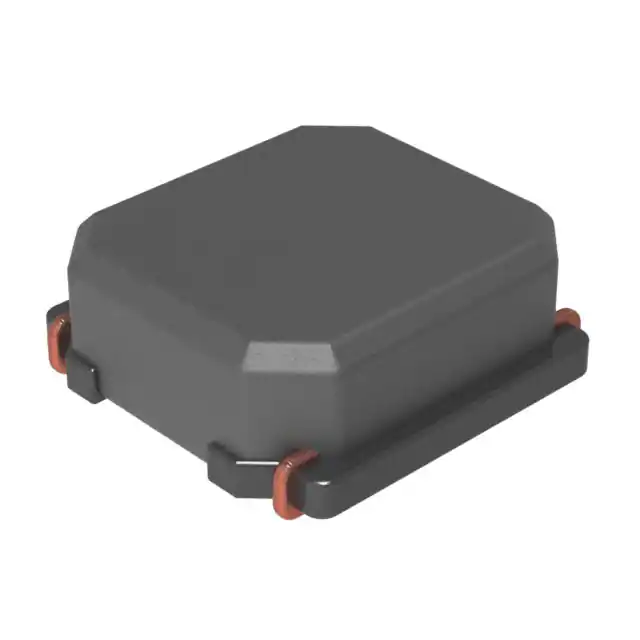

LMLP04B4N4R7CTASFIXED IND 4.7UH 1.2A 90 MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.2 A | 1.7A | Shielded | 90mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LMLP04B4M101CTASFIXED IND 100UH 270MA 1.5OHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 270 mA | 400mA | Shielded | 1.5Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LMLP04B4M150CTASFIXED IND 15UH 650MA 280MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 650 mA | 940mA | Shielded | 280mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LMLP04B4N3R3CTASFIXED IND 3.3UH 1.23A 70MOHM SMD KYOCERA AVX |
0 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 1.23 A | 2A | Shielded | 70mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
