固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBC6-101-172FIXED IND 100UH 1.7A 130 MOHM TH KEMET |
374 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.7 A | 3.5A | Unshielded | 130mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
MPXV1D1054L220FIXED IND 22UH 5.7A 54.05MOHM SM KEMET |
952 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 5.7 A | 7A | Shielded | 54.05mOhm Max | - | 6.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|
|
MPXV1D1054L3R3FIXED IND 3.3UH 14.4A 8.4MOHM SM KEMET |
857 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 14.4 A | 15A | Shielded | 8.4mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|
|
MPXV1D1040L4R7FIXED IND 4.7UH 10.3A 15.9 MOHM KEMET |
1,173 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 10.3 A | 14A | Shielded | 15.9mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|

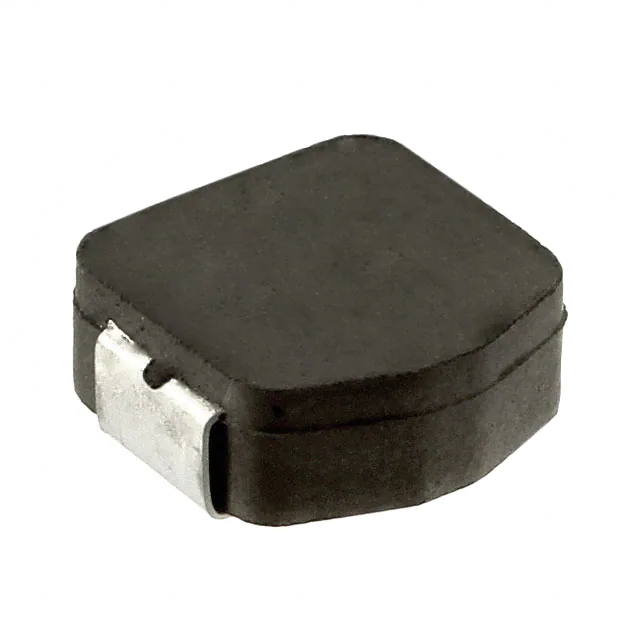

MPLCG0630L3R3FIXED IND 3.3UH 6.5A 0.03OHM SMD KEMET |
1,696 |
|
规格书 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 6.5 A | 6.3A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | 0.118" (3.00mm) |
|
MPCH0730LR12FIXED IND 120NH 31A 0.65MOHM SMD KEMET |
1,781 |
|
规格书 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 120 nH | ±20% | 31 A | 32A | Shielded | 0.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.118" (3.00mm) |
|

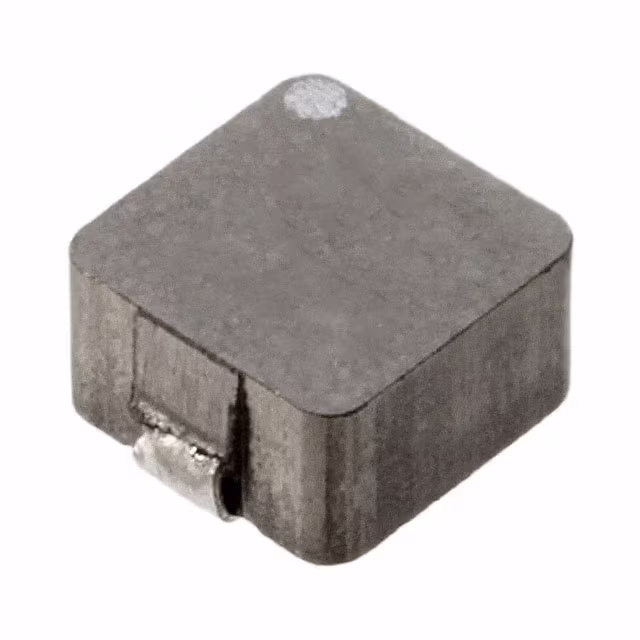

MPCH0740LR15FIXED IND 150NH 29A 0.93MOHM SMD KEMET |
2,641 |
|
规格书 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 150 nH | ±20% | 29 A | 31A | Shielded | 0.93mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|

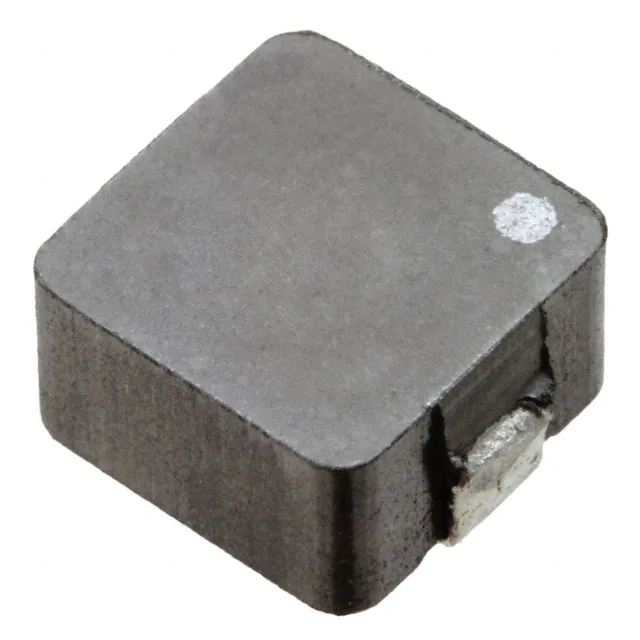

MPCH0740LR24FIXED IND 240NH 27A 1 MOHM SMD KEMET |
3,166 |
|
规格书 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 240 nH | ±20% | 27 A | 20A | Shielded | 1mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|
|
SBC6-152-451FIXED IND 1.5MH 450MA 1.8 OHM TH KEMET |
418 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 450 mA | 900mA | Unshielded | 1.8Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.728" (18.50mm) |
|
|
SBC6-102-561FIXED IND 1MH 560MA 1.21 OHM TH KEMET |
308 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 560 mA | 1.1A | Unshielded | 1.21Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.728" (18.50mm) |
