固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPCV1060L1R5FIXED IND 1.5UH 22A 2.75MOHM SMD KEMET |
940 |
|
规格书 |
MPCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 22 A | 27A | Shielded | 2.75mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.394" W (12.00mm x 10.00mm) | 0.236" (6.00mm) |
|
|
MPCV1060LR68FIXED IND 680NH 32A 1.54MOHM SMD KEMET |
215 |
|
规格书 |
MPCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 680 nH | ±20% | 32 A | 38A | Shielded | 1.54mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.394" W (12.00mm x 10.00mm) | 0.236" (6.00mm) |
|
MPLCV1054L100FIXED IND 10UH 7.1A 25 MOHM SMD KEMET |
2,320 |
|
规格书 |
MPLCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 7.1 A | 12A | Shielded | 25mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.213" (5.40mm) |
|

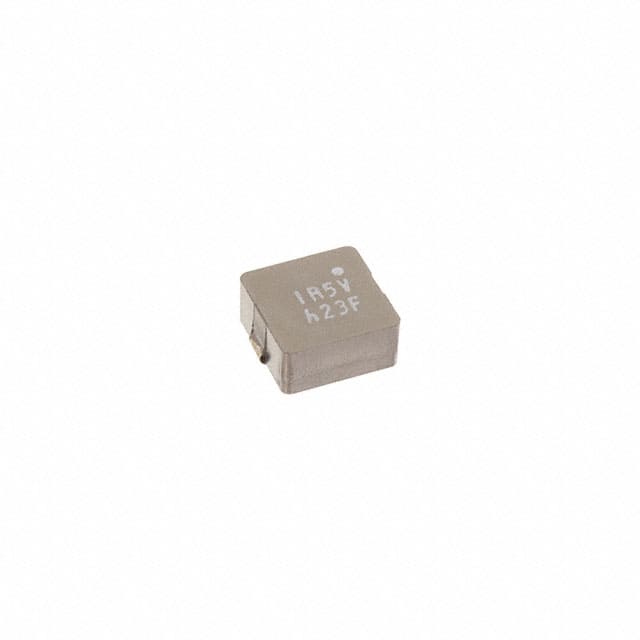

MPCV1260L1R5FIXED IND 1.5UH 28A 2.31MOHM SMD KEMET |
274 |
|
规格书 |
MPCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 28 A | 35A | Shielded | 2.31mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.492" W (14.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
MPLCV1054L220FIXED IND 22UH 5.5A 47 MOHM SMD KEMET |
3,823 |
|
规格书 |
MPLCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 5.5 A | 7A | Shielded | 47mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.213" (5.40mm) |
|
MPX1D1235LR22FIXED IND 220NH 35.2A 1.6MOHM SM KEMET |
472 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 35.2 A | 75A | Shielded | 1.6mOhm Max | - | 100MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.138" (3.50mm) |
|
|
MPX1D1250LR22FIXED IND 220NH 42.7A 1.2MOHM SM KEMET |
240 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 42.7 A | 85A | Shielded | 1.2mOhm Max | - | 95MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPX1D1264L1R5FIXED IND 1.5UH 28.8A 2.9MOHM SM KEMET |
238 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 28.8 A | 35.5A | Shielded | 2.9mOhm Max | - | 24MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
|
MPX1D1250L150FIXED IND 15UH 8.2A 30.8MOHM SMD KEMET |
219 |
|
规格书 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 8.2 A | 11A | Shielded | 30.8mOhm Max | - | 7MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
MPCG1040LR45FIXED IND 450NH 25A 1.1 MOHM SMD KEMET |
2,133 |
|
规格书 |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 450 nH | ±20% | 25 A | 27A | Shielded | 1.1mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
