固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L0603C18NJRMSTFIXED IND 18NH 300MA 350MOHM SMD KEMET |
0 |
|
规格书 |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 18 nH | ±5% | 300 mA | - | Unshielded | 350mOhm Max | 15 @ 100MHz | 3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
-0,60x0,30x0,33mm.jpg)
|
L0201C15NJRMSTFIXED IND 15NH 100MA 800MOHM SMD KEMET |
0 |
|
规格书 |
L-RMS | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 15 nH | ±5% | 100 mA | - | Unshielded | 800mOhm Max | 7 @ 100MHz | 3.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
L0603C1N0SRMSTFIXED IND 1NH 300MA 50 MOHM SMD KEMET |
0 |
|
规格书 |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 1 nH | ±0.3nH | 300 mA | - | Unshielded | 50mOhm Max | 14 @ 100MHz | 13GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|

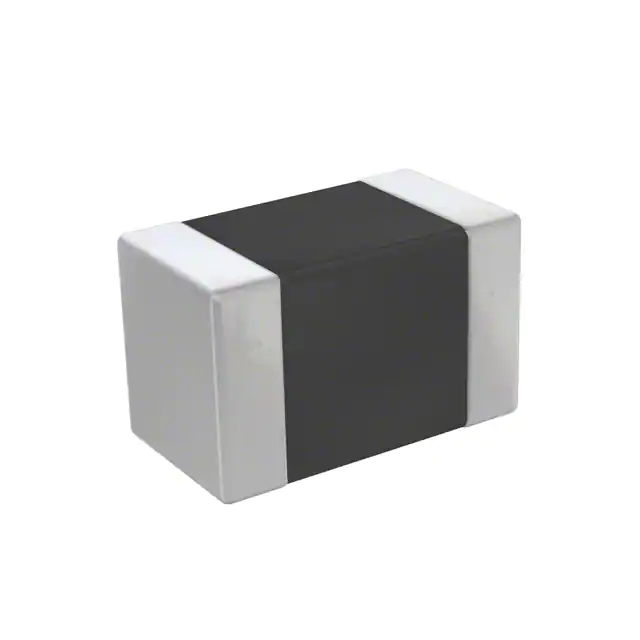

L1207C470KPWSTFIXED IND 47UH 205MA 920MOHM SMD KEMET |
0 |
|
规格书 |
L-PWS | 1207 (3218 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 205 mA | - | Unshielded | 920mOhm | - | 12MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1207 (3218 Metric) | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
|
L1210R101MDWITFIXED IND 100UH 270MA 1.4OHM SMD KEMET |
0 |
|
规格书 |
L-DWI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 270 mA | - | Unshielded | 1.4Ohm | - | 6MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
L1210R220MDWITFIXED IND 22UH 620MA 270MOHM SMD KEMET |
0 |
|
规格书 |
L-DWI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 620 mA | - | Unshielded | 270mOhm | - | 17MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
L1210R4R7MDWITFIXED IND 4.7UH 1.25A 100MOHM SM KEMET |
0 |
|
规格书 |
L-DWI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.25 A | - | Unshielded | 100mOhm | - | 70MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
L0603C47NJRMSTFIXED IND 47NH 300MA 700MOHM SMD KEMET |
0 |
|
规格书 |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 47 nH | ±5% | 300 mA | - | Unshielded | 700mOhm Max | 17 @ 100MHz | 1.6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L0603C10NJRMSTFIXED IND 10NH 300MA 260MOHM SMD KEMET |
0 |
|
规格书 |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 10 nH | ±5% | 300 mA | - | Unshielded | 260mOhm Max | 14 @ 100MHz | 4.6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
L0805C100MDWITFIXED IND 10UH 240MA 1.2 OHM SMD KEMET |
0 |
|
规格书 |
L-DWI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 240 mA | - | Unshielded | 1.2Ohm | - | 40MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
