固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBCP-80HY6R8HFIXED IND 6.8UH 3.3A 50 MOHM TH KEMET |
0 |
|
规格书 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.3 A | 6.5A | Unshielded | 50mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
SBCP-80HY4R7HFIXED IND 4.7UH 3.3A 40 MOHM TH KEMET |
0 |
|
规格书 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.3 A | 7.6A | Unshielded | 40mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
SBCP-80HY471HFIXED IND 470UH 650MA 950MOHM TH KEMET |
0 |
|
规格书 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 650 mA | 710mA | Unshielded | 950mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
SBCP-80HY3R3HFIXED IND 3.3UH 3.6A 40 MOHM TH KEMET |
0 |
|
规格书 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.6 A | 9.2A | Unshielded | 40mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
SBCP-80HY330HFIXED IND 33UH 2.1A 90 MOHM TH KEMET |
0 |
|
规格书 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.1 A | 2.7A | Unshielded | 90mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
SBCP-80HY220HFIXED IND 22UH 2.4A 80 MOHM TH KEMET |
0 |
|
规格书 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.4 A | 3.4A | Unshielded | 80mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
SBCP-80HY1R5HFIXED IND 1.5UH 4.5A 20 MOHM TH KEMET |
0 |
|
规格书 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.5 A | 13.5A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
SBCP-80HY150HFIXED IND 15UH 2.5A 80 MOHM TH KEMET |
0 |
|
规格书 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 4A | Unshielded | 80mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
SBCP-80HY122HFIXED IND 1.2MH 320MA 2.6 OHM TH KEMET |
0 |
|
规格书 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 320 mA | 450mA | Unshielded | 2.6Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|

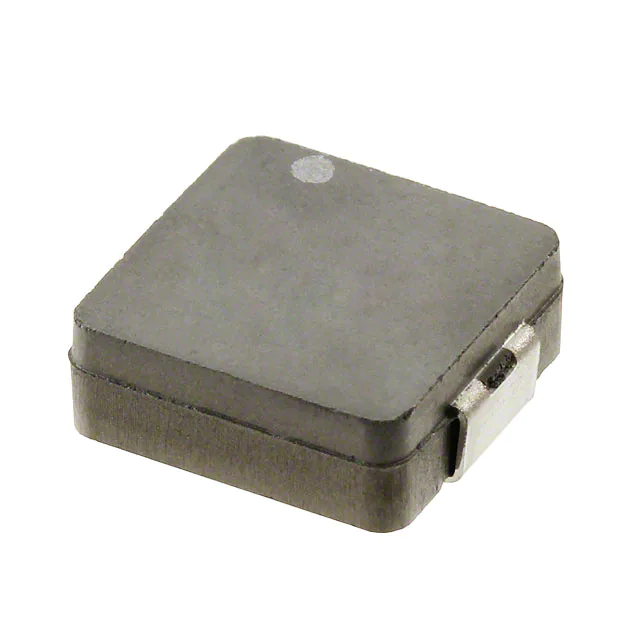

MPLC1040L4R7FIXED IND 4.7UH 8A 19 MOHM SMD KEMET |
0 |
|
规格书 |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 8 A | 8A | Shielded | 19mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
