上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCHC40-102J-RC1000UH 5% Molded Chip Inductor Allied Components International |
0 |
|
规格书 |
MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 mH | ±5% | - | 85mA | Unshielded | 15Ohm Max | 20 @ 252kHz | 1.8MHz | - | -40°C ~ 125°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|
|
MCHC40-103K-RC10mH 10% Molded Chip Inductor Allied Components International |
0 |
|
规格书 |
MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 mH | ±10% | - | 25mA | Unshielded | 150Ohm Max | 20 @ 79.6kHz | 500kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|
VTC230-101L-RC100uH +/-15% V.M. Toroidal Choke Allied Components International |
0 |
|
规格书 |
TC230 | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 100 µH | ±15% | 7 A | - | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.280" Dia (32.51mm) | - |
|
|
VTC100-220K-RC22uH +/-10% V.M. Toroidal Choke Allied Components International |
0 |
|
规格书 |
TC100 | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 22 µH | ±10% | 3.5 A | 3.9A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.600" Dia (15.24mm) | - |
|
|
VTC230HT-2R7L-RC2.7uH +/-15% V.M. Toroidal Choke Allied Components International |
0 |
|
规格书 |
TC230HT | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 2.7 µH | ±15% | 31.6 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.280" Dia (32.51mm) | - |
|
MLPC12-2R2M-RC2.2uH +/-20% Multilayer Pwr Chip Allied Components International |
0 |
|
规格书 |
MLPC12 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1 A | - | Shielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
VTC3221-500-20A50uH @ 20A Vert. Mount Toroid Allied Components International |
0 |
|
规格书 |
VTC3221-500-20A | Vertical, No Base, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | - | 58.75 µH | ±12% | 20 A | - | Unshielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.827" (21.00mm) |
|

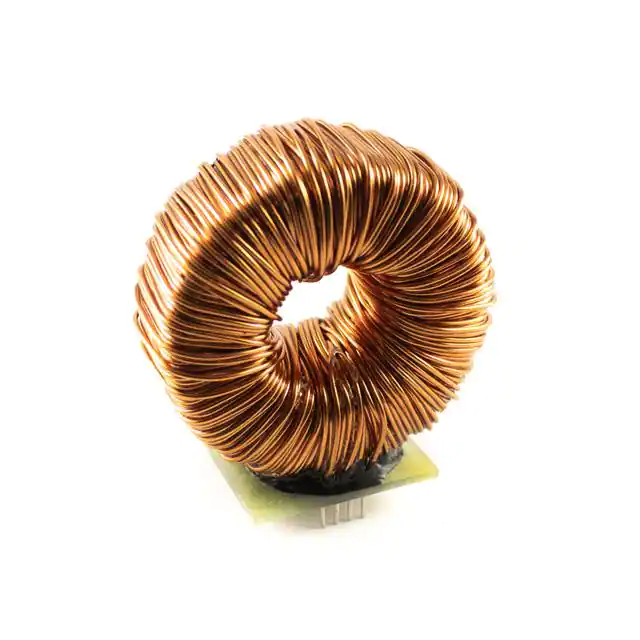

VTCB5427-431-10A570uh @ 16.5A Vert. Mount Toroid Allied Components International |
0 |
|
规格书 |
VTCB5427-431-10A | Vertical, 8 PC Pin | Tape & Reel (TR) | Active | Toroidal | - | 570 µH | ±15% | 16.5 A | - | Unshielded | 50mOhm Max | - | - | - | -20°C ~ 125°C | 10 kHz | - | Through Hole | Vertical, 8 PC Pin | 2.126" L x 1.102" W (54.00mm x 28.00mm) | 2.146" (54.50mm) |
|
FWPQ2817H-330K33uH+/-10% Flat Wire Pwr Induct. Allied Components International |
0 |
|
规格书 |
FWTPQ2817H | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | 33 µH | ±10% | 28 A | 9.6A | Shielded | 2.82mOhm Max | - | 10MHz | - | -40°C ~ 85°C | 500 kHz | - | Surface Mount | 2-SMD | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.669" (17.00mm) |
|
PCI30-151M-RC150uH +/-20% SMD Power Inductor Allied Components International |
0 |
|
规格书 |
PCI30 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | - | 740mA | Unshielded | 940mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
