固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

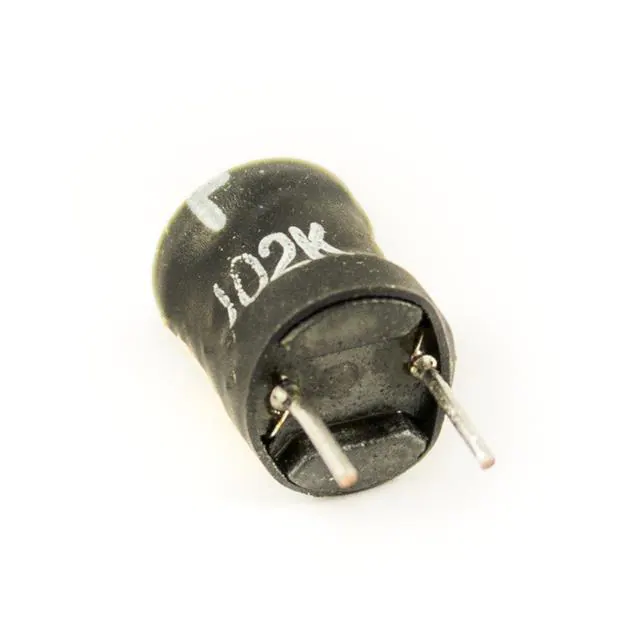

RB40-102K-RC1000uH +/-10% Radial Inductor Allied Components International |
0 |
|
规格书 |
RB40 | Radial, Vertical Cylinder | Bag | Active | Wirewound | - | 1 mH | ±10% | 150 mA | - | Unshielded | 6Ohm Max | 90 @ 252kHz | 1.3MHz | - | -55°C ~ 125°C | 252 kHz | - | Through Hole | Radial | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RB40-103K-RC10mH +/-10% Radial Inductor Allied Components International |
0 |
|
规格书 |
RB40 | Radial, Vertical Cylinder | Bag | Active | Wirewound | - | 10 mH | ±10% | 40 mA | - | Unshielded | 40Ohm Max | 100 @ 79.6kHz | 400kHz | - | -55°C ~ 125°C | 79.6 kHz | - | Through Hole | Radial | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
RDC40-153K-RC15uH +/-10% Radial Drum Core Allied Components International |
0 |
|
规格书 |
RDC40 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core | - | 15 mH | ±10% | 1.3 A | 1.5A | Unshielded | 3.39Ohm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
RDC40-101K-RC100uH +/-10% Radial Drum Core Allied Components International |
0 |
|
规格书 |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 100 µH | ±10% | 14.4 A | 20A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
RDC40-821K-RC820uH +/-10% Radial Drum Core Allied Components International |
0 |
|
规格书 |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 820 µH | ±10% | 2.7 A | 6.8A | Unshielded | 154mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
RDC40-270K-RC27uH +/-10% Radial Drum Core Allied Components International |
0 |
|
规格书 |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 27 µH | ±10% | 21 A | 36A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
RDC50-100K-RC10uH +/-10% Radial Drum Core Allied Components International |
0 |
|
规格书 |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 10 µH | ±10% | 35 A | 67A | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-181K-RC180uH +/-10% Radial Drum Core Allied Components International |
0 |
|
规格书 |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 180 µH | ±10% | 13.5 A | 14A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-150K-RC15uH +/-10% Radial Drum Core Allied Components International |
0 |
|
规格书 |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 15 µH | ±10% | 35 A | 49A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-221K-RC220uH +/-10% Radial Drum Core Allied Components International |
0 |
|
规格书 |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 220 µH | ±10% | 13.5 A | 13A | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
