固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

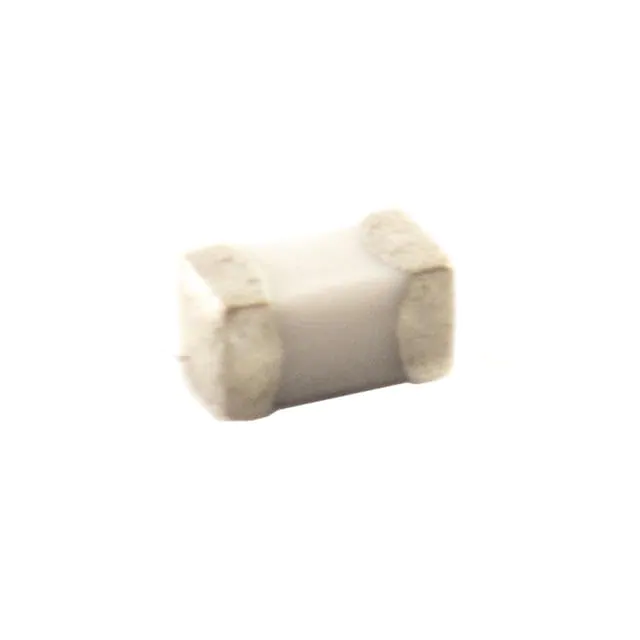

HFC05-1N0S-RC1.0nH +/-0.3nH 0603 Hi-Freq Chip Allied Components International |
0 |
|
规格书 |
HFC05 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1 nH | ±0.3nH | 600 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
HFC05-100NK-RC100nH +/-10% 0603 Hi-Freq. Chip Allied Components International |
0 |
|
规格书 |
HFC05 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 100 nH | ±10% | 300 mA | - | Unshielded | 1.2Ohm Max | 12 @ 100MHz | 770MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
HFC05-15NJ-RC15nH +/-5% 0603 Hi-Freq. Chip Allied Components International |
0 |
|
规格书 |
HFC05 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±5% | 600 mA | - | Unshielded | 320mOhm Max | 12 @ 100MHz | 2.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
HFC05-22NJ-RC22nH +/-5% 0603 High Freq Chip Allied Components International |
0 |
|
规格书 |
HFC05 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 22 nH | ±5% | 500 mA | - | Unshielded | 400mOhm Max | 12 @ 100MHz | 2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
HFC05-82NJ-RC82nH +/-5% 0603 High Freq Chip Allied Components International |
0 |
|
规格书 |
HFC05 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 82 nH | ±5% | 300 mA | - | Unshielded | 1Ohm Max | 12 @ 100MHz | 900MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

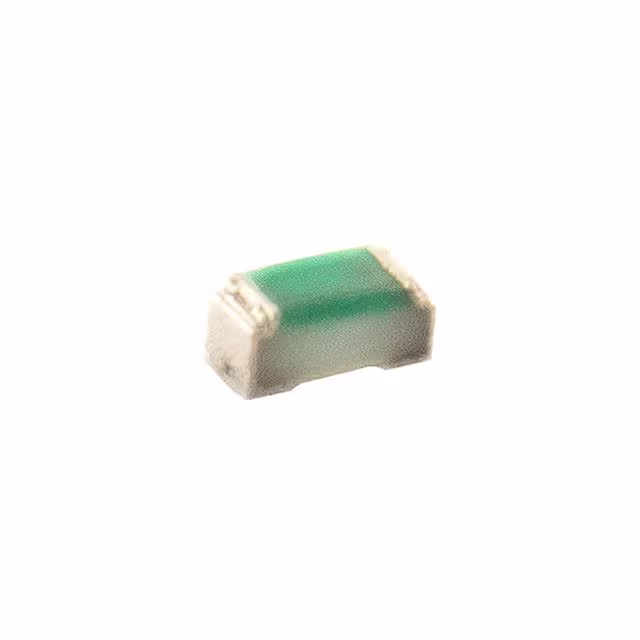

HFQ02-1N0B-RC1.0nH +/-0.1nH 0201 High Q Chip Allied Components International |
0 |
|
规格书 |
HFQ02 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1 nH | ±0.1nH | - | 850mA | Unshielded | 70mOhm Max | 14 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
LS03-R15J-RC.15uH +/-5% Ferrite Core Chip Allied Components International |
0 |
|
规格书 |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 nH | ±5% | - | 1.45A | Unshielded | 150mOhm Max | 17 @ 7.9MHz | 1.35GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-R10J-RC.10uH +/-5% Ferrite Core Chip Allied Components International |
0 |
|
规格书 |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 nH | ±5% | - | 1.5A | Unshielded | 130mOhm Max | 17 @ 7.9MHz | 1.65GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-R39J-RC.39uH +/-5% Ferrite Core Chip Allied Components International |
0 |
|
规格书 |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 390 nH | ±5% | - | 1.2A | Unshielded | 510mOhm Max | 17 @ 7.9MHz | 810MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-R27J-RC.27uH +/-5% Ferrite Core Chip Allied Components International |
0 |
|
规格书 |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 270 nH | ±5% | - | 1.05A | Unshielded | 300mOhm Max | 17 @ 7.9MHz | 1.05GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
