场效应晶体管（FETs）、MOSFETs
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF135S203MOSFET N-CH 135V 129A TO263-3 |
759 |
|
规格书 |
HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 135 V | 129A (Tc) | 10V | 8.4mOhm @ 77A, 10V | 4V @ 250µA | 270 nC @ 10 V | ±20V | 9700 pF @ 50 V | - | 441W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
SIDR104AEP-T1-RE3N-CHANNEL 100 V (D-S) 175C MOSFE |
8,048 |
|
规格书 |

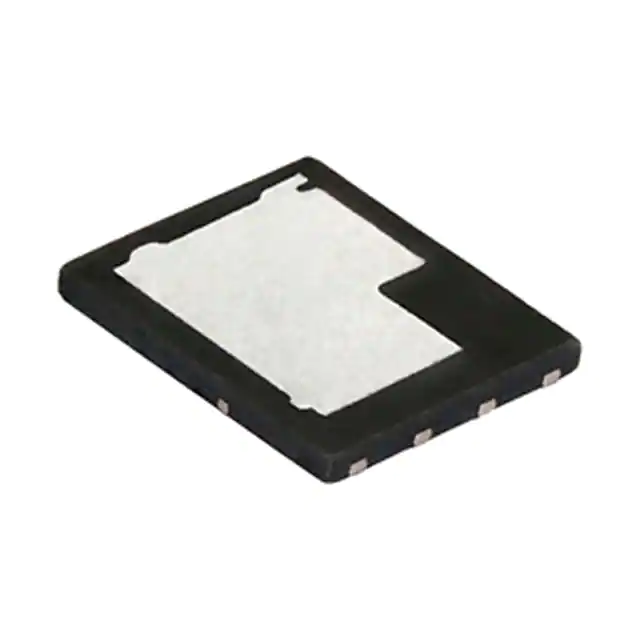

TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 21.1A (Ta), 90.5A (Tc) | 7.5V, 10V | 6.1mOhm @ 15A, 10V | 4V @ 250µA | 70 nC @ 10 V | ±20V | 3250 pF @ 50 V | - | 6.5W (Ta), 120W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8DC |
|
STF24N60DM2MOSFET N-CH 600V 18A TO220 |
780 |
|
规格书 |
FDmesh™ II Plus | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 200mOhm @ 9A, 10V | 5V @ 250µA | 29 nC @ 10 V | ±25V | 1055 pF @ 100 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Full Pack |
|
R6011ENXMOSFET N-CH 600V 11A TO220FM |
476 |
|
规格书 |
- | TO-220-3 Full Pack | Bulk | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 390mOhm @ 3.8A, 10V | 4V @ 1mA | 32 nC @ 10 V | ±20V | 670 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
STW7N105K5MOSFET N-CH 1050V 4A TO247 |
367 |
|
规格书 |
SuperMESH5™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1050 V | 4A (Tc) | 10V | 2Ohm @ 2A, 10V | 5V @ 100µA | 17 nC @ 10 V | ±30V | 380 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
SUM70040M-GE3MOSFET N-CH 100V 120A TO263-7 |
1,290 |
|
规格书 |
TrenchFET® | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 7.5V, 10V | 3.8mOhm @ 20A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 5100 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
SUP70090E-GE3MOSFET N-CH 100V 50A TO220AB |
364 |
|
规格书 |
ThunderFET® | TO-220-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 50A (Tc) | 7.5V, 10V | 8.9mOhm @ 20A, 10V | 4V @ 250µA | 50 nC @ 10 V | ±20V | 1950 pF @ 50 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
SUP70040E-GE3MOSFET N-CH 100V 120A TO220AB |
310 |
|
规格书 |
TrenchFET® | TO-220-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 7.5V, 10V | 4mOhm @ 20A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 5100 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
SUP50020EL-GE3MOSFET N-CH 60V 120A TO220AB |
261 |
|
规格书 |
TrenchFET® | TO-220-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 4.5V, 10V | 2.3mOhm @ 30A, 10V | 2.5V @ 250µA | 126 nC @ 10 V | ±20V | 11113 pF @ 30 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
STB10LN80K5MOSFET N-CHANNEL 800V 8A D2PAK |
890 |
|
规格书 |
MDmesh™ K5 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 630mOhm @ 4A, 10V | 5V @ 100µA | 15 nC @ 10 V | ±30V | 427 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IPI045N10N3GXKSA1MOSFET N-CH 100V 100A TO262-3 |
844 |
|
规格书 |
OptiMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 100A (Tc) | 6V, 10V | 4.5mOhm @ 100A, 10V | 3.5V @ 150µA | 117 nC @ 10 V | ±20V | 8410 pF @ 50 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO262-3 |
|
|
SUP70042E-GE3N-CHANNEL 100 V (D-S) MOSFET TO- |
575 |
|
规格书 |
TrenchFET® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 150A (Tc) | 7.5V, 10V | 4mOhm @ 20A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 6490 pF @ 50 V | - | 278W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220AB |
|
IAUS165N08S5N029ATMA1MOSFET N-CH 80V 165A HSOG-8 |
1,665 |
|
规格书 |
OptiMOS™ | 8-PowerSMD, Gull Wing | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 165A (Tc) | 6V, 10V | 2.9mOhm @ 80A, 10V | 3.8V @ 108µA | 90 nC @ 10 V | ±20V | 6370 pF @ 40 V | - | 167W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-HSOG-8-1 |
|
IPA60R160P6XKSA1MOSFET N-CH 600V 23.8A TO220-FP |
389 |
|
规格书 |
CoolMOS™ P6 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 23.8A (Tc) | 10V | 160mOhm @ 9A, 10V | 4.5V @ 750µA | 44 nC @ 10 V | ±20V | 2080 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
IRF3805PBFMOSFET N-CH 55V 75A TO220AB |
1,658 |
|
规格书 |
HEXFET® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 3.3mOhm @ 75A, 10V | 4V @ 250µA | 290 nC @ 10 V | ±20V | 7960 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IPB65R190CFD7AATMA1MOSFET N-CH 650V 14A TO263-3 |
962 |
|
规格书 |
CoolMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 14A (Tc) | - | 190mOhm @ 6.4A, 10V | 4.5V @ 320µA | 28 nC @ 10 V | ±20V | 1291 pF @ 400 V | - | 77W (Tc) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO263-3 |
|
BUK963R3-60E,118MOSFET N-CH 60V 120A D2PAK |
3,882 |
|
规格书 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 5V | 3mOhm @ 25A, 10V | 2.1V @ 1mA | 95 nC @ 5 V | ±10V | 13490 pF @ 25 V | - | 293W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
STP240N10F7MOSFET N-CH 100V 180A TO220 |
9,232 |
|
规格书 |
DeepGATE™, STripFET™ VII | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 3.2mOhm @ 60A, 10V | 4.5V @ 250µA | 176 nC @ 10 V | ±20V | 12600 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
SUP60020E-GE3MOSFET N-CH 80V 150A TO220AB |
500 |
|
规格书 |
TrenchFET® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 150A (Tc) | 7.5V, 10V | 2.4mOhm @ 30A, 10V | 4V @ 250µA | 227 nC @ 10 V | ±20V | 10680 pF @ 40 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
FDPF17N60NTMOSFET N-CH 600V 17A TO220F |
1,234 |
|
规格书 |
UniFET™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Tc) | 10V | 340mOhm @ 8.5A, 10V | 5V @ 250µA | 65 nC @ 10 V | ±30V | 3040 pF @ 25 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
