场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DI040N03PT-AQMOSFET, POWERQFN 3X3, 30V, 40A, Diotec Semiconductor |
4,859 | - |
|
- |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Tc) | 4.5V, 10V | 7mOhm @ 15A, 10V | 2.5V @ 250µA | 12 nC @ 4.5 V | ±20V | 1120 pF @ 15 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (3x3) |
|
|
DI035P04PT-AQMOSFET, POWERQFN 3X3, -40V, -35A Diotec Semiconductor |
3,149 | - |
|
- |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 35A (Tc) | 4.5V, 10V | 19mOhm @ 10A, 10V | 2.5V @ 250µA | 30 nC @ 10 V | ±20V | 2570 pF @ 20 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (3x3) |
|

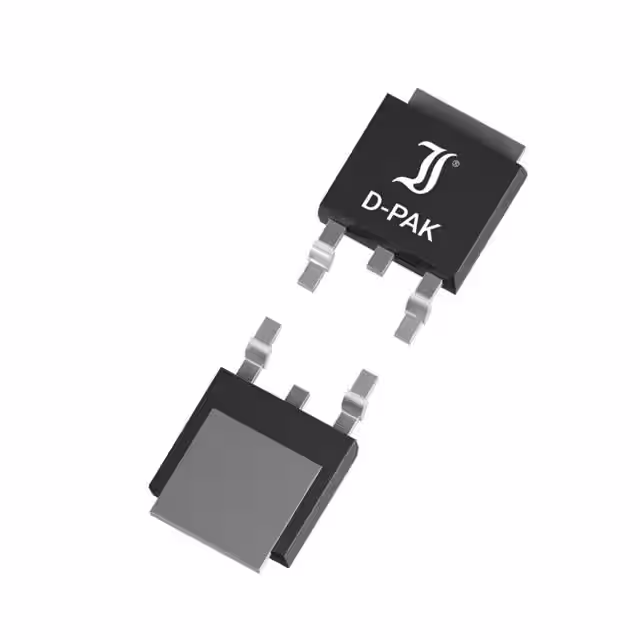

DI050N06D1-AQMOSFET DPAK N 60V 50A 0.0085OHM Diotec Semiconductor |
2,455 | - |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 65 V | 50A (Tc) | 4.5V, 10V | 11mOhm @ 10A, 10V | 2.5V @ 250µA | 14 nC @ 10 V | ±20V | 825 pF @ 30 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
DI035N10PT-AQMOSFET POWERQFN 3X3 N 100V 35A 0 Diotec Semiconductor |
4,890 | - |
|
规格书 |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 4.5V, 10V | 18mOhm @ 7A, 10V | 2.5V @ 250µA | 22 nC @ 10 V | ±20V | 1220 pF @ 15 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (3x3) |
|
|
DI035N10PTMOSFET POWERQFN 3X3 N 100V 35A 0 Diotec Semiconductor |
4,854 | - |
|
规格书 |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 4.5V, 10V | 18mOhm @ 7A, 10V | 2.5V @ 250µA | 22 nC @ 10 V | ±20V | 1220 pF @ 15 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-QFN (3x3) |
|
|
DI2A7N70D1KMOSFET DPAK N 700V 1.6OHM 150C Diotec Semiconductor |
2,485 | - |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 2.7A (Tc) | 10V | 1.6Ohm @ 1A, 10V | 3.5V @ 250µA | 5.8 nC @ 10 V | ±20V | 209 pF @ 350 V | - | 34.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
DIT090N06MOSFET TO220AB N 65V 0.0057OHM Diotec Semiconductor |
994 | - |
|
规格书 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 65 V | 90A (Tc) | 10V | 7mOhm @ 30A, 10V | 4V @ 250µA | 94 nC @ 10 V | ±20V | 3400 pF @ 25 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
DI050N06D1MOSFET, DPAK, 60V, 50A, 0, 42W Diotec Semiconductor |
898 | - |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 65 V | 50A (Tc) | 4.5V, 10V | 11mOhm @ 10A, 10V | 2.5V @ 250µA | 14 nC @ 10 V | ±20V | 825 pF @ 30 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|

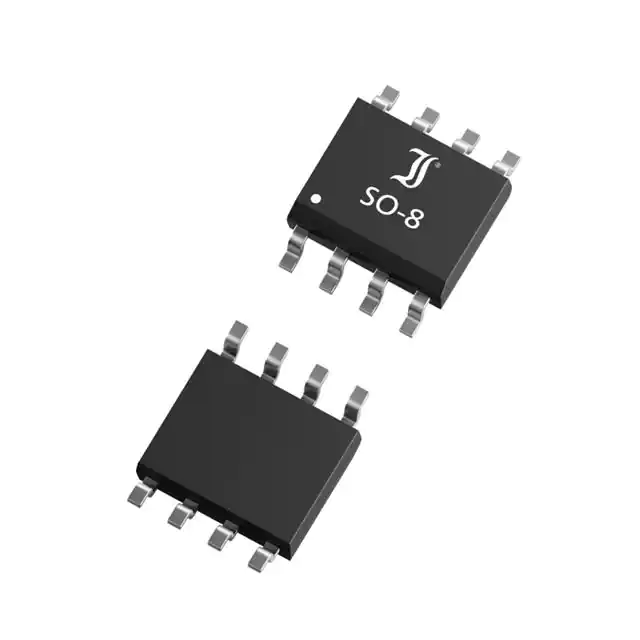

DI008N09SQMOSFET SO8 90V 8A 0.075OHM 150C Diotec Semiconductor |
4,000 | - |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | - | - | 8A | - | - | - | - | - | - | - | 2W | - | - | - | Surface Mount | 8-SO |
|
|
DI105N04PQ-AQMOSFET PWRQFN 5X6 40V 0.0026OHM Diotec Semiconductor |
4,680 | - |
|
规格书 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 105A (Tc) | 4.5V, 10V | 2.6mOhm @ 50A, 10V | 2.4V @ 250µA | 23 nC @ 10 V | ±20V | 3033 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-QFN (5x6) |
