场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DI045N10PQ-AQMOSFET PWRQFN 5X6 100V 0.0065OHM Diotec Semiconductor |
0 | - |
|
规格书 |
- | - | Tape & Reel (TR) | Active | N-Channel | - | - | 45A | - | - | - | - | - | - | - | 110W | - | - | - | Surface Mount | PowerQFN 5x6 |
|
MMFTP5618-QMOSFET, SOT-23, P, -60V, -1.25A Diotec Semiconductor |
0 | - |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 1.25A (Ta) | 4.5V, 10V | 170mOhm @ 1.25A, 10V | 3V @ 1mA | 7 nC @ 10 V | ±20V | 361 pF @ 30 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|

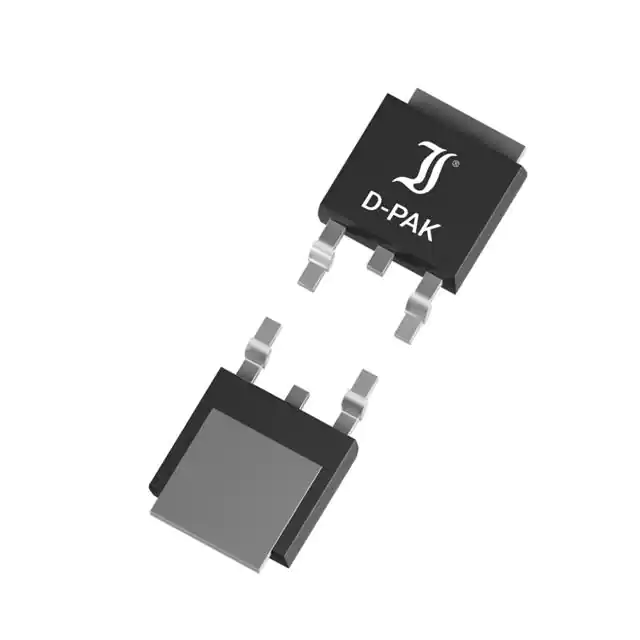

DI087N03D1-AQMOSFET DPAK N 30V 87A Diotec Semiconductor |
0 | - |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 87A (Tc) | 4.5V, 10V | 3mOhm @ 20A, 10V | 2.5V @ 250µA | 39 nC @ 15 V | ±20V | 2486 pF @ 15 V | - | 41.67W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252 (DPAK) |
|
DI064P04D1MOSFET DPAK P -40V -64A Diotec Semiconductor |
0 | - |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 64A (Tc) | 10V | 7.6mOhm @ 30A, 10V | 4V @ 250µA | 105 nC @ 10 V | ±20V | 7475 pF @ 20 V | - | 48.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
DI110N03PQ-AQMOSFET POWERQFN 5X6 N 30V Diotec Semiconductor |
0 | - |
|
规格书 |
- | 8-PowerTDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 110A (Tc) | 4.5V, 10V | 2.65mOhm @ 20A, 10V | 2.5V @ 250µA | 14 nC @ 4.5 V | ±20V | 1860 pF @ 15 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-QFN (5x6) |
|

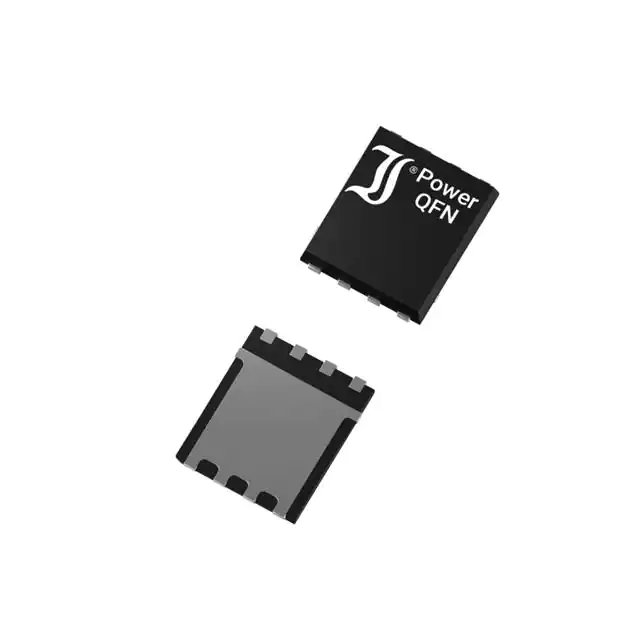

DI070P04PQMOSFET POWERQFN 5X6 P -40V Diotec Semiconductor |
0 | - |
|
规格书 |
- | 8-PowerTDFN | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 70A (Tc) | 4.5V, 10V | 6.5mOhm @ 20A, 10V | 2.5V @ 250µA | 125 nC @ 10 V | ±20V | 7560 pF @ 20 V | - | 46W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-QFN (5x6) |
|
|
DI065N08D1-AQMOSFET DPAK N 80V 65A Diotec Semiconductor |
0 | - |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 65A (Tc) | 4.5V, 10V | 7mOhm @ 20A, 10V | 2.5V @ 250µA | 35 nC @ 10 V | ±20V | 1812 pF @ 30 V | - | 62.5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252 (DPAK) |
|
|
DI068P04D1MOSFET DPAK P -40V -68A Diotec Semiconductor |
0 | - |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 68A (Tc) | 4.5V, 10V | 7.3mOhm @ 20A, 10V | 2.5V @ 250µA | 125 nC @ 10 V | ±20V | 7560 pF @ 20 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
DI100N04D1MOSFET DPAK N 40V 100A Diotec Semiconductor |
0 | - |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 4.5V, 10V | 4mOhm @ 30A, 10V | 2.5V @ 250µA | 143 nC @ 10 V | ±20V | 7000 pF @ 20 V | - | 83.3W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
DI064P04D1-AQMOSFET DPAK P -40V -64A Diotec Semiconductor |
0 | - |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 64A (Tc) | 10V | 7.6mOhm @ 30A, 10V | 4V @ 250µA | 105 nC @ 10 V | ±20V | 7475 pF @ 20 V | - | 48.3W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252 (DPAK) |
