场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTA88N085TMOSFET N-CH 85V 88A TO263 IXYS |
0 | - |
|
- |
TrenchMV™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 88A (Tc) | 10V | 11mOhm @ 25A, 10V | 4V @ 100µA | 69 nC @ 10 V | ±20V | 3140 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
IXTA90N055TMOSFET N-CH 55V 90A TO263 IXYS |
0 | - |
|
- |
TrenchT2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 90A (Tc) | 10V | 8.8mOhm @ 25A, 10V | 4V @ 50µA | 61 nC @ 10 V | ±20V | 2500 pF @ 25 V | - | 176W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IXTC160N085TMOSFET N-CH 85V 110A ISOPLUS220 IXYS |
0 | - |
|
- |
- | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 110A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Through Hole | ISOPLUS220™ |
|

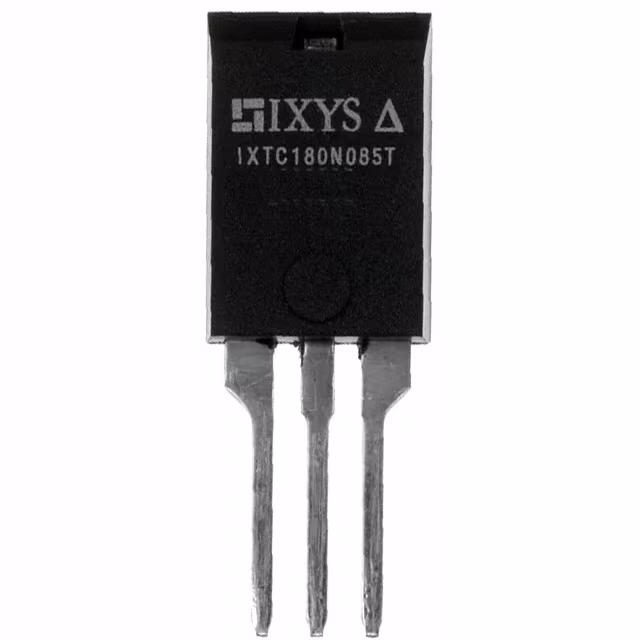

IXTC180N085TMOSFET N-CH 85V 110A ISOPLUS220 IXYS |
0 | - |
|
- |
- | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 110A (Tc) | 10V | 6.1mOhm @ 25A, 10V | 4V @ 250µA | 170 nC @ 10 V | ±20V | 8800 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|

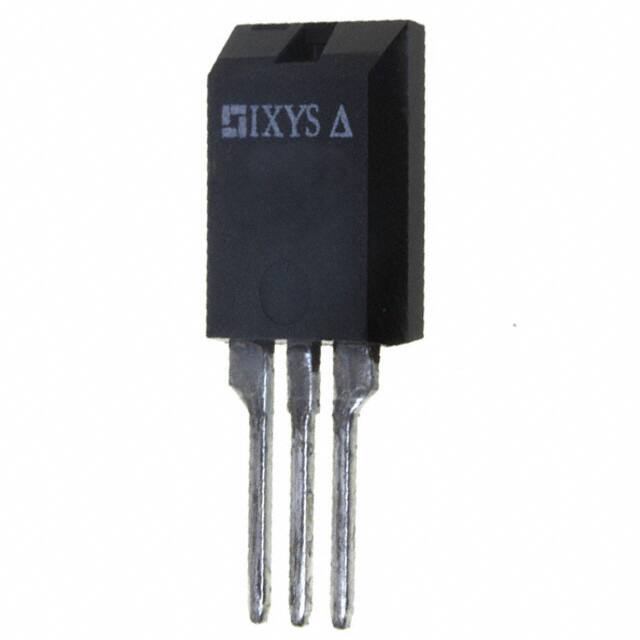

IXTC220N055TMOSFET N-CH 55V 130A ISOPLUS220 IXYS |
0 | - |
|
- |
TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 130A (Tc) | 10V | 4.4mOhm @ 25A, 10V | 4V @ 250µA | 158 nC @ 10 V | ±20V | 7200 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|

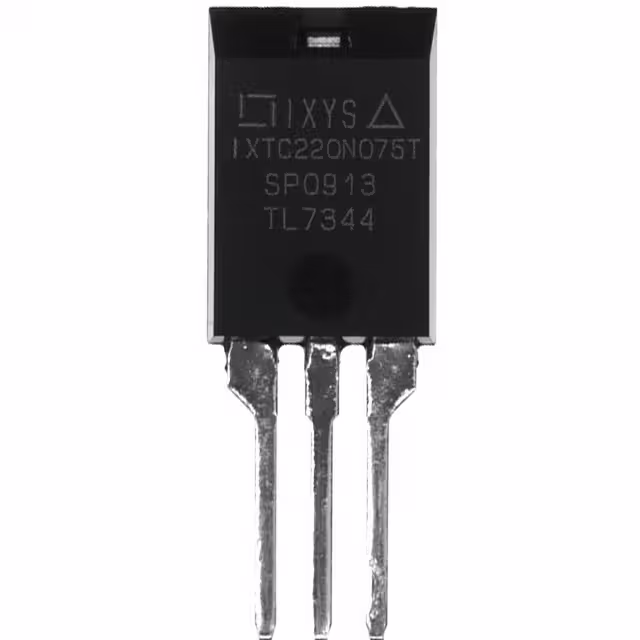

IXTC220N075TMOSFET N-CH 75V 115A ISOPLUS220 IXYS |
0 | - |
|
- |
TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 115A (Tc) | 10V | 5mOhm @ 25A, 10V | 4V @ 250µA | 165 nC @ 10 V | ±20V | 7700 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXTC240N055TMOSFET N-CH 55V 132A ISOPLUS220 IXYS |
0 | - |
|
- |
TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 132A (Tc) | 10V | 4mOhm @ 50A, 10V | 4V @ 1mA | 170 nC @ 10 V | ±20V | 7600 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|

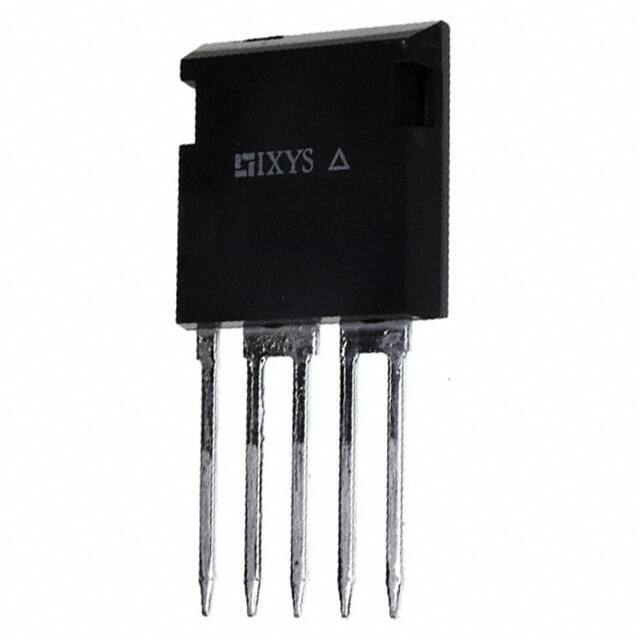

IXTF230N085TMOSFET N-CH 85V 130A I4PAC IXYS |
0 | - |
|
- |
TrenchMV™ | i4-Pac™-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 130A (Tc) | 10V | 5.3mOhm @ 50A, 10V | 4V @ 250mA | 187 nC @ 10 V | ±20V | 9900 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|

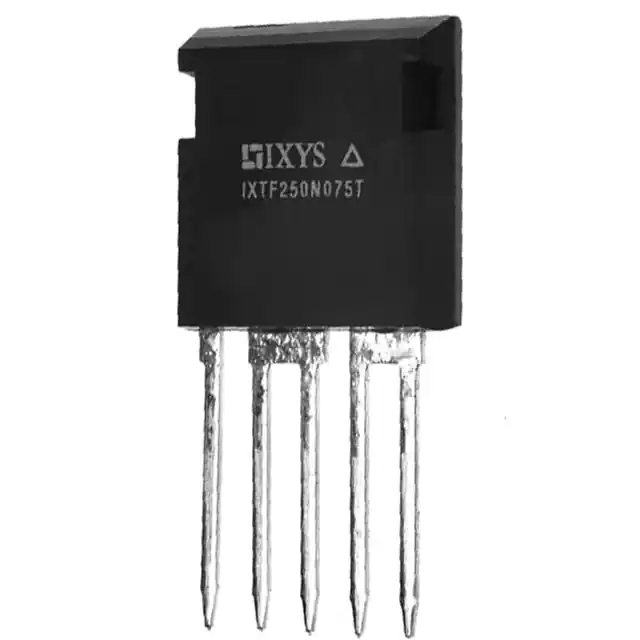

IXTF250N075TMOSFET N-CH 75V 140A I4PAC IXYS |
0 | - |
|
- |
TrenchMV™ | i4-Pac™-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 140A (Tc) | 10V | 4.4mOhm @ 50A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 9900 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
.jpg)
|
IXTH152N085TMOSFET N-CH 85V 152A TO247 IXYS |
0 | - |
|
- |
TrenchMV™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 152A (Tc) | 10V | 7mOhm @ 25A, 10V | 4V @ 250µA | 114 nC @ 10 V | ±20V | 5500 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
