场效应晶体管（FETs）、MOSFETs
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NVMFS5C450NLWFAFT1GMOSFET N-CH 40V 110A 5DFN |
1,850 |
|
规格书 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 4.5V, 10V | 2.8mOhm @ 40A, 10V | 2V @ 250µA | 35 nC @ 10 V | ±20V | 2100 pF @ 20 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 5-DFN (5x6) (8-SOFL) |
|
SIHP12N50E-BE3N-CHANNEL 500V |
836 |
|
规格书 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 10.5A (Tc) | 10V | 380mOhm @ 6A, 10V | 4V @ 250µA | 50 nC @ 10 V | ±30V | 886 pF @ 100 V | - | 114W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
DMT61M5SPSW-13MOSFET BVDSS: 41V~60V POWERDI506 |
2,181 |
|
规格书 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 215A (Tc) | 10V | 1.5mOhm @ 30A, 10V | 4V @ 250µA | 130.6 nC @ 10 V | ±20V | 8306 pF @ 30 V | - | 2.7W (Ta), 139W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI5060-8 (SWP) |
|
FDPF041N06BL1-F154MOSFET N-CH 60V 77A TO220F-3 |
772 |
|
规格书 |
PowerTrench® | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 77A (Tc) | - | 4.1mOhm @ 77A, 10V | 4V @ 250µA | 69 nC @ 10 V | ±20V | 5690 pF @ 30 V | - | 44.1W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
|
NTMYS9D3N06CLTWGMOSFET N-CH 60V T6 LFPAK4 |
2,995 |
|
规格书 |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | - | - | - | 14A (Ta), 50A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | LFPAK4 (5x6) |
|
|
SIR5110DP-T1-RE3N-CHANNEL 100 V (D-S) MOSFET POW |
11,972 |
|
规格书 |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 13.5A (Ta), 47.6A (Tc) | 7.5V, 10V | 6mOhm @ 35A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±20V | 920 pF @ 50 V | - | 4.8W (Ta), 59.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SIR402DP-T1-GE3MOSFET N-CH 30V 35A PPAK SO-8 |
3,000 |
|
规格书 |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 35A (Tc) | 4.5V, 10V | 6mOhm @ 20A, 10V | 2.2V @ 250µA | 42 nC @ 10 V | ±20V | 1700 pF @ 15 V | - | 4.2W (Ta), 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
RH6R025BHTB1NCH 150V 25A, HSMT8, POWER MOSFE |
2,679 |
|
规格书 |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 25A (Tc) | 6V, 10V | 60mOhm @ 25A, 10V | 4V @ 1mA | 16.7 nC @ 10 V | ±20V | 1010 pF @ 75 V | - | 59W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-HSMT (3.2x3) |
|
SIHA12N50E-E3MOSFET N-CH 500V 10.5A TO220 |
995 |
|
规格书 |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 10.5A (Tc) | 10V | 380mOhm @ 6A, 10V | 4V @ 250µA | 50 nC @ 10 V | ±30V | 886 pF @ 100 V | - | 32W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Full Pack |
|
|
STL125N10F8AGAUTOMOTIVE N-CHANNEL 100 V, 4.6 |
956 |
|
规格书 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
STL305N4F8AGN-CHANNEL ENHANCEMENT MODE 40V, |
170 |
|
规格书 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPA126N10NM3SXKSA1MOSFET N-CH 100V 39A TO220 |
231 |
|
规格书 |
OptiMOS™ 3 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 6V, 10V | 12.6mOhm @ 35A, 10V | 3.5V @ 45µA | 35 nC @ 10 V | ±20V | 2500 pF @ 50 V | - | 33W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220 Full Pack |
|
|
TPH1400CQ5,LQ150V UMOS 10-H SOP ADVANCE |
4,975 |
|
规格书 |
U-MOSX-H | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 77A (Ta), 32A (Tc) | 8V, 10V | 14.1mOhm @ 16A, 10V | 4.5V @ 600µA | 31 nC @ 10 V | ±20V | 3800 pF @ 75 V | - | 3W (Ta), 170W (Tc) | 175°C | - | - | Surface Mount | 8-SOP Advance (5x5.75) |
|
NTTFS4C50NTAGMOSFET N-CH 30V 75A 8WDFN |
1,292 |
|
- |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | - | 19.4A (Ta) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
STL305N4LF8AGPOWERFLAT 5X6 WF |
976 |
|
规格书 |
STripFET™ F8 | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 4.5V, 10V | 1mOhm @ 60A, 10V | 2V @ 250µA | 70 nC @ 10 V | ±16V | 5400 pF @ 25 V | - | 167W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerFlat™ (5x6) |
|
NTMYS4D6N04CLTWGMOSFET N-CH 40V 21A/78A LFPAK4 |
0 |
|
规格书 |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 21A (Ta), 78A (Tc) | 4.5V, 10V | 4.5mOhm @ 35A, 10V | 2V @ 40µA | 23 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 3.6W (Ta), 50W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK4 (5x6) |
|
|
NVMJS3D0N06CTWGT6 60V SL LFPAK8 5X6 |
3,000 |
|
规格书 |
- | SOT-1205, 8-LFPAK56 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 26.9A (Ta), 139.3A (Tc) | 10V | 2.9mOhm @ 27A, 10V | 4V @ 135µA | 34 nC @ 10 V | ±20V | 2675 pF @ 25 V | - | 4.2W (Ta), 112.5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-LFPAK |
|
|
TK12P50W,RQPB-F POWER MOSFET TRANSISTOR DPA |
1,877 |
|
规格书 |
DTMOSIV | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 11.5A (Ta) | 10V | 340mOhm @ 5.8A, 10V | 3.7V @ 600µA | 25 nC @ 10 V | ±30V | 890 pF @ 300 V | - | 100W (Tc) | 150°C | - | - | Surface Mount | DPAK |
|
IPP65R420CFDXKSA2MOSFET N-CH 650V 8.7A TO220-3 |
488 |
|
规格书 |
CoolMOS™ CFD2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8.7A (Tc) | 10V | 420mOhm @ 3.4A, 10V | 4.5V @ 300µA | 31.5 nC @ 10 V | ±20V | 870 pF @ 100 V | - | 83.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|

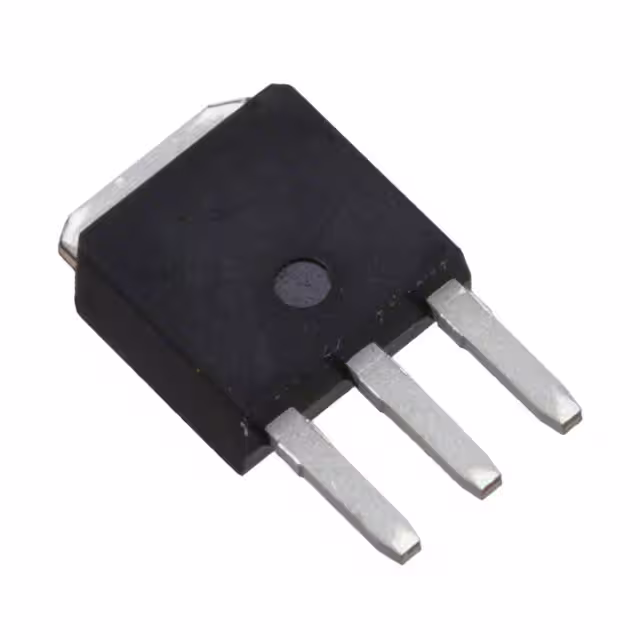

TK6Q60W,S1VQMOSFET N-CH 600V 6.2A IPAK |
183 |
|
规格书 |
DTMOSIV | TO-251-3 Stub Leads, IPAK | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.2A (Ta) | 10V | 820mOhm @ 3.1A, 10V | 3.7V @ 310µA | 12 nC @ 10 V | ±30V | 390 pF @ 300 V | - | 60W (Tc) | 150°C (TJ) | - | - | Through Hole | IPAK |
