场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NVMFS5C420NLWFT1GPOWER MOSFET, SINGLE, N-CHANNEL, onsemi |
1,499 | - |
|
规格书 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 45A (Ta), 277A (Tc) | 4.5V, 10V | 1mOhm @ 50A, 10V | 2.2V @ 200µA | 100 nC @ 10 V | ±20V | 7020 pF @ 20 V | - | 3.8W (Ta), 146W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
|
|
NVMFS5C420NWFT1GPOWER MOSFET, N-CHANNEL, SO8FL, onsemi |
1,430 | - |
|
规格书 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 43A (Ta), 268A (Tc) | 10V | 1.1mOhm @ 50A, 10V | 4V @ 200µA | 82 nC @ 10 V | ±20V | 5340 pF @ 20 V | - | 3.8W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 5-DFN (5x6) (8-SOFL) |
|
FCPF11N60TMOSFET N-CH 600V 11A TO220F onsemi |
911 | - |
|
规格书 |
SuperFET™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 380mOhm @ 5.5A, 10V | 5V @ 250µA | 52 nC @ 10 V | ±30V | 1490 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
NTPF360N80S3ZMOSFET N-CH 800V 13A TO220FP onsemi |
1,963 | - |
|
规格书 |
SuperFET® III | TO-220-3 Full Pack | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 800 V | 13A (Tc) | 10V | 360mOhm @ 6.5A, 10V | 3.8V @ 300µA | 25.3 nC @ 10 V | ±20V | 1143 pF @ 400 V | - | 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
NTMFS0D8N02P1ET1GMOSFET N-CH 25V 55A/365A 5DFN onsemi |
366 | - |
|
规格书 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 55A (Ta), 365A (Tc) | 4.5V, 10V | 0.68mOhm @ 46A, 10V | 2V @ 2mA | 52 nC @ 4.5 V | +16V, -12V | 8600 pF @ 13 V | - | 3.2W (Ta), 139W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|

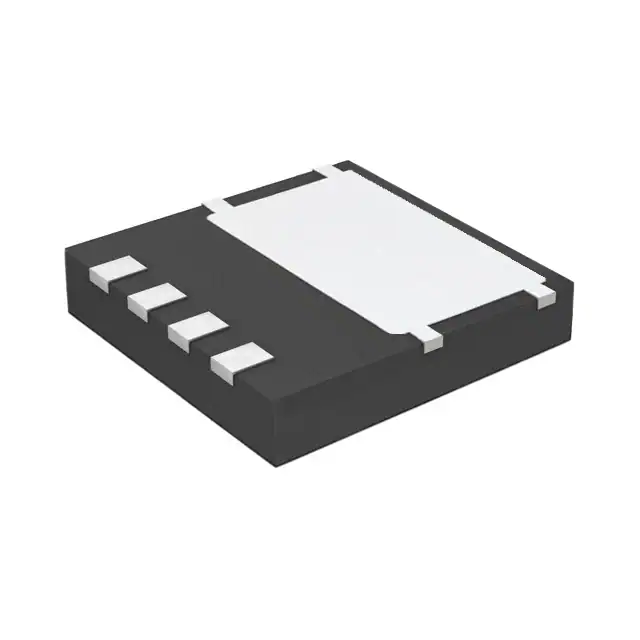

FCMT299N60MOSFET N-CH 600V 12A POWER88 onsemi |
2,390 | - |
|
规格书 |
SuperFET® II | 4-PowerTSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Ta) | 10V | 299mOhm @ 6A, 10V | 3.5V @ 250µA | 51 nC @ 10 V | ±20V | 1948 pF @ 380 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power88 |
|
FCPF260N60EMOSFET N CH 600V 15A TO-220F onsemi |
1,867 | - |
|
规格书 |
SuperFET® II | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tj) | 10V | 260mOhm @ 7.5A, 10V | 3.5V @ 250µA | 62 nC @ 10 V | ±20V | 2500 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
NTMFS7D8N10GTWGN-CHANNEL SHIELDED GATE POWERTRE onsemi |
2,937 | - |
|
规格书 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 14A (Ta), 110A (Tc) | 10V | 7.6mOhm @ 48A, 10V | 4V @ 254µA | 92 nC @ 10 V | ±20V | 6180 pF @ 50 V | - | 3W (Ta), 187W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
|
FCPF150N65FMOSFET N-CH 650V 14.9A TO220F onsemi |
990 | - |
|
规格书 |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 14.9A (Tc) | 10V | 150mOhm @ 12A, 10V | 5V @ 2.4mA | 94 nC @ 10 V | ±20V | 3737 pF @ 100 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
FCP400N80ZMOSFET N-CH 800V 14A TO220-3 onsemi |
840 | - |
|
规格书 |
SuperFET® II | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 14A (Tc) | 10V | 400mOhm @ 5.5A, 10V | 4.5V @ 1.1mA | 56 nC @ 10 V | ±20V | 2350 pF @ 1000 V | - | 195W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
