场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RFD3055LESMMOSFET N-CH 60V 11A TO252AA onsemi |
0 | - |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 11A (Tc) | 5V | 107mOhm @ 8A, 5V | 3V @ 250µA | 11.3 nC @ 10 V | ±16V | 350 pF @ 25 V | - | 38W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
FDZ204PMOSFET P-CH 20V 4.5A 9BGA onsemi |
0 | - |
|
规格书 |
PowerTrench® | 9-WFBGA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Ta) | 2.5V, 4.5V | 45mOhm @ 4.5A, 4.5V | 1.5V @ 250µA | 13 nC @ 4.5 V | ±12V | 884 pF @ 10 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 9-BGA (2x2.1) |
|
|
FDZ299PMOSFET P-CH 20V 4.6A 9BGA onsemi |
0 | - |
|
规格书 |
PowerTrench® | 9-WFBGA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.6A (Ta) | 2.5V, 4.5V | 55mOhm @ 4.6A, 4.5V | 1.5V @ 250µA | 9 nC @ 4.5 V | ±12V | 742 pF @ 10 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 9-BGA (2x2.1) |
|
NTHD5904NT1MOSFET N-CH 20V 2.5A CHIPFET onsemi |
0 | - |
|
规格书 |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.5A (Ta) | 2.5V, 4.5V | 65mOhm @ 3.3A, 4.5V | 1.2V @ 250µA | 6 nC @ 4.5 V | ±8V | 465 pF @ 16 V | - | 640mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | ChipFET™ |
|
FDC3512_F095MOSFET N-CH 80V 3A SUPERSOT6 onsemi |
0 | - |
|
规格书 |
PowerTrench® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 3A (Ta) | 6V, 10V | 77mOhm @ 3A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 634 pF @ 40 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 |
|

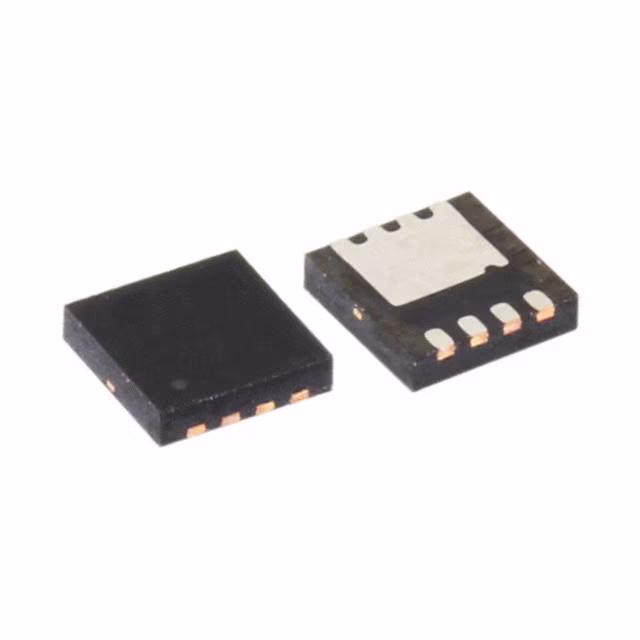

FDMC8878_F126MOSFET N-CH 30V 9.6A/16.5A 8MLP onsemi |
0 | - |
|
规格书 |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.6A (Ta), 16.5A (Tc) | 4.5V, 10V | 14mOhm @ 9.6A, 10V | 3V @ 250µA | 26 nC @ 10 V | ±20V | 1230 pF @ 15 V | - | 2.1W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
|
IRLS510AMOSFET N-CH 100V 4.5A TO220F onsemi |
0 | - |
|
规格书 |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.5A (Tc) | 5V | 440mOhm @ 2.25A, 5V | 2V @ 250µA | 8 nC @ 5 V | ±20V | 235 pF @ 25 V | - | 23W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
FQP1N60MOSFET N-CH 600V 1.2A TO220-3 onsemi |
0 | - |
|
规格书 |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.2A (Tc) | 10V | 11.5Ohm @ 600mA, 10V | 5V @ 250µA | 6 nC @ 10 V | ±30V | 150 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
FQP10N20CTSTUMOSFET N-CH 200V 9.5A TO220-3 onsemi |
0 | - |
|
规格书 |
QFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 9.5A (Tc) | 10V | 360mOhm @ 4.75A, 10V | 4V @ 250µA | 26 nC @ 10 V | ±30V | 510 pF @ 25 V | - | 72W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
FQD13N10LTFMOSFET N-CH 100V 10A DPAK onsemi |
0 | - |
|
规格书 |
QFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 10A (Tc) | 5V, 10V | 180mOhm @ 5A, 10V | 2V @ 250µA | 12 nC @ 5 V | ±20V | 520 pF @ 25 V | - | 2.5W (Ta), 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
