场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTC040N120SC1SIC MOS WAFER SALES 40MOHM 1200V onsemi |
819 | - |
|
规格书 |
- | Die | Tray | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 60A (Tc) | 20V | 56mOhm @ 35A, 20V | 4.3V @ 10mA | 106 nC @ 20 V | +25V, -15V | 1781 pF @ 800 V | - | 348W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | Die |
|
FCH47N60NMOSFET N-CH 600V 47A TO247-3 onsemi |
18 | - |
|
规格书 |
SupreMOS™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 62mOhm @ 23.5A, 10V | 4V @ 250µA | 151 nC @ 10 V | ±30V | 6700 pF @ 100 V | - | 368W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
.jpg)
|

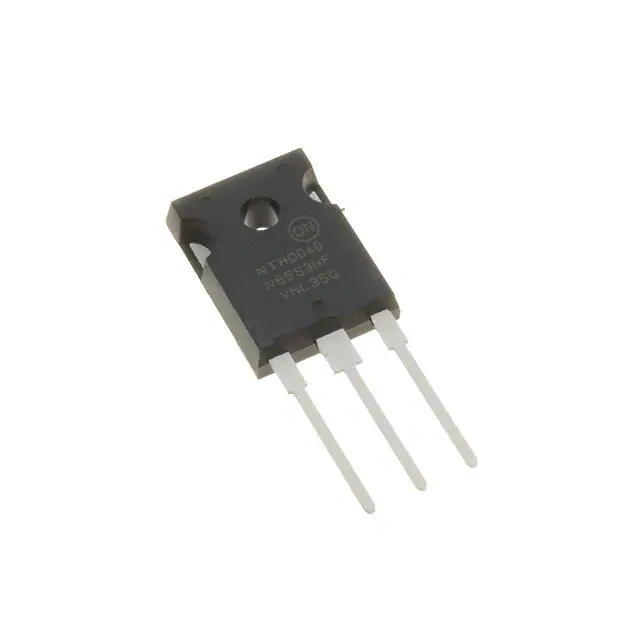

NTHLD040N65S3HFMOSFET N-CH 650V 65A TO247 onsemi |
0 | - |
|
规格书 |
FRFET®, SuperFET® III | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 65A (Tc) | 10V | 40mOhm @ 32.5A, 10V | 5V @ 2.1mA | 159 nC @ 10 V | ±30V | 5945 pF @ 400 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
NVBLS0D7N06CMOSFET N-CH 60V 54A/470A 8HPSOF onsemi |
1,600 | - |
|
规格书 |
- | 8-PowerSFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 54A (Ta), 470A (Tc) | 10V | 0.75mOhm @ 80A, 10V | 4V @ 661µA | 170 nC @ 10 V | ±20V | 13730 pF @ 30 V | - | 4.2W (Ta), 314W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-HPSOF |
|
FCH041N60F-F085MOSFET N-CH 600V 76A TO247-3 onsemi |
444 | - |
|
规格书 |
SuperFET® II | TO-247-3 | Tube | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 76A (Tc) | 10V | 41mOhm @ 38A, 10V | 5V @ 250µA | 347 nC @ 10 V | ±20V | 10900 pF @ 25 V | - | 595W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
NTBGS001N06CPOWER MOSFET, 60 V, 1.1 M?, 342 onsemi |
546 | - |
|
规格书 |
- | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 42A (Ta), 342A (Tc) | 10V, 12V | 1.1mOhm @ 112A, 12V | 4V @ 562µA | 139 nC @ 10 V | ±20V | 11110 pF @ 30 V | - | 3.7W (Ta), 245W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
FCH085N80-F155MOSFET N-CH 800V 46A TO247 onsemi |
437 | - |
|
规格书 |
SuperFET® II | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 46A (Tc) | 10V | 85mOhm @ 23A, 10V | 4.5V @ 4.6mA | 255 nC @ 10 V | ±20V | 10825 pF @ 100 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
NVBGS4D1N15MCMOSFET N-CH 150V 20A/185A D2PAK onsemi |
364 | - |
|
规格书 |
- | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 20A (Ta), 185A (Tc) | 8V, 10V | 4.1mOhm @ 104A, 10V | 4.5V @ 574µA | 88.9 nC @ 10 V | ±20V | 7285 pF @ 75 V | - | 3.7W (Ta), 316W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
FCA76N60NMOSFET N-CH 600V 76A TO3PN onsemi |
1,348 | - |
|
规格书 |
SupreMOS™ | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 76A (Tc) | 10V | 36mOhm @ 38A, 10V | 4V @ 250µA | 285 nC @ 10 V | ±30V | 12385 pF @ 100 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PN |
|
SCP114AMX180TCG300 MA CMOS LDO, AD OPTION, VOUT onsemi |
90,000 | - |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
