场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFT1446-TL-HMOSFET N-CH 60V 20A TP-FA onsemi |
0 | - |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Ta) | 4V, 10V | 51mOhm @ 10A, 10V | 2.6V @ 1mA | 16 nC @ 10 V | ±20V | 750 pF @ 20 V | - | 1W (Ta), 23W (Tc) | 150°C (TJ) | - | - | Surface Mount | TP-FA |
|
NTTFS4985NFTWGMOSFET N-CH 30V 16.3A/64A 8WDFN onsemi |
0 | - |
|
规格书 |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16.3A (Ta), 64A (Tc) | 4.5V, 10V | 3.5mOhm @ 20A, 10V | 2.3V @ 250µA | 29.4 nC @ 10 V | ±20V | 2075 pF @ 15 V | - | 1.47W (Ta), 22.73W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
2SJ636-TL-EPCH 4V DRIVE SERIES onsemi |
14,700 | - |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NTB6N60N-CHANNEL POWER MOSFET onsemi |
9,939 | - |
|
规格书 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

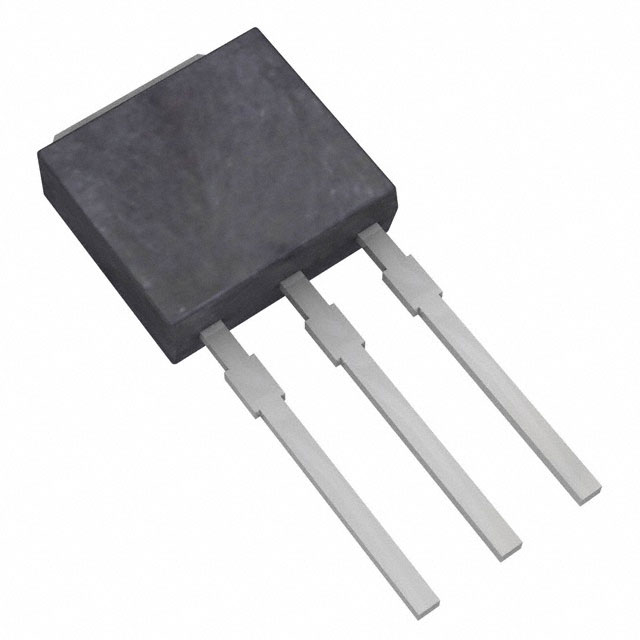

FQU3N60CTUMOSFET N-CH 600V 2.4A IPAK onsemi |
0 | - |
|
规格书 |
QFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.4A (Tc) | 10V | 3.4Ohm @ 1.2A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±30V | 565 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
FDS6630AMOSFET N-CH 30V 6.5A 8SOIC onsemi |
0 | - |
|
规格书 |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.5A (Ta) | 4.5V, 10V | 38mOhm @ 6.5A, 10V | 3V @ 250µA | 7 nC @ 5 V | ±20V | 460 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
NDPL070N10BGMOSFET N-CH 100V 70A TO220-3 onsemi |
0 | - |
|
- |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 70A (Ta) | 10V, 15V | 10.8mOhm @ 35A, 15V | 4V @ 1mA | 26 nC @ 10 V | ±20V | 2010 pF @ 50 V | - | 2.1W (Ta), 72W (Tc) | 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
NDF10N60ZGMOSFET N-CH 600V 10A TO220FP onsemi |
0 | - |
|
规格书 |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 750mOhm @ 5A, 10V | 4.5V @ 100µA | 68 nC @ 10 V | ±30V | 1645 pF @ 25 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|

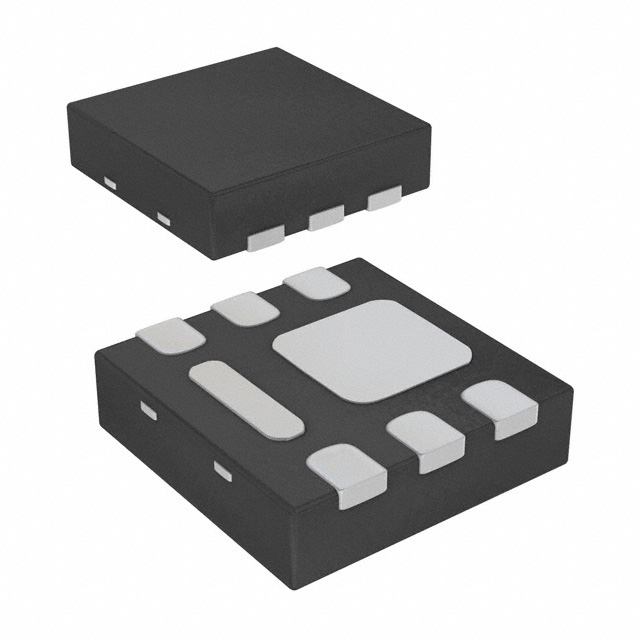

NTLUS3A40PZTBGMOSFET P-CH 20V 4A 6UDFN onsemi |
0 | - |
|
规格书 |
µCool™ | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.5V, 4.5V | 29mOhm @ 6.4A, 4.5V | 1V @ 250µA | 29 nC @ 4.5 V | ±8V | 2600 pF @ 15 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-UDFN (2x2) |
|
1HN04CH-TL-WMOSFET N-CH 100V 270MA 3CPH onsemi |
0 | - |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 270mA (Ta) | 4V, 10V | 8Ohm @ 140mA, 10V | 2.6V @ 100µA | 0.9 nC @ 10 V | ±20V | 15 pF @ 20 V | - | - | 150°C (TJ) | - | - | Surface Mount | 3-CPH |
