场效应晶体管（FETs）、MOSFETs
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDB3632-F085MOSFET N-CH 100V 12A TO263AB |
0 |
|
规格书 |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 12A (Ta) | 10V | 9mOhm @ 80A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
FDD10AN06A0-F085MOSFET N-CH 60V 11A TO252AA |
0 |
|
规格书 |
PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 11A (Ta) | 10V | 10.5mOhm @ 50A, 10V | 4V @ 250µA | 37 nC @ 10 V | ±20V | 1840 pF @ 25 V | - | 135W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
|
FDD8870-F085MOSFET N-CH 30V 21A TO252AA |
0 |
|
规格书 |
PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta) | 4.5V, 10V | 3.9mOhm @ 35A, 10V | 2.5V @ 250µA | 118 nC @ 10 V | ±20V | 5160 pF @ 15 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|

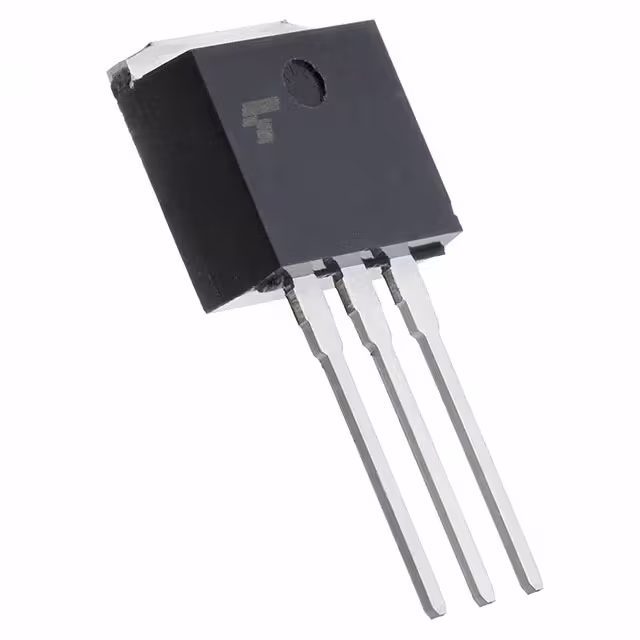

TK14C65W,S1QMOSFET N-CH 650V 13.7A I2PAK |
0 |
|
- |
DTMOSIV | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 13.7A (Ta) | 10V | 250mOhm @ 6.9A, 10V | 3.5V @ 690µA | 35 nC @ 10 V | ±30V | 1300 pF @ 300 V | - | 130W (Tc) | 150°C (TJ) | - | - | Through Hole | I2PAK |
|
|
TK14C65W5,S1QMOSFET N-CH 650V 13.7A I2PAK |
0 |
|
- |
DTMOSIV | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 13.7A (Ta) | 10V | 300mOhm @ 6.9A, 10V | 4.5V @ 690µA | 40 nC @ 10 V | ±30V | 1300 pF @ 300 V | - | 130W (Tc) | 150°C (TJ) | - | - | Through Hole | I2PAK |
|
SUP50N10-21P-GE3MOSFET N-CH 100V 50A TO220AB |
0 |
|
规格书 |
TrenchFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 50A (Tc) | 6V, 10V | 21mOhm @ 10A, 10V | 4V @ 250µA | 68 nC @ 10 V | ±20V | 2055 pF @ 50 V | - | 3.1W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
FDP2710-F085MOSFET N-CH 250V 4A TO220-3 |
0 |
|
规格书 |
PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 4A (Ta) | 10V | 47mOhm @ 50A, 10V | 5V @ 250µA | 101 nC @ 10 V | ±30V | 5690 pF @ 25 V | - | 403W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
FQP2N40-F080MOSFET N-CH 400V 1.8A TO220-3 |
0 |
|
规格书 |
QFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 1.8A (Tc) | 10V | 5.8Ohm @ 900mA, 10V | 5V @ 250µA | 5.5 nC @ 10 V | ±30V | 150 pF @ 25 V | - | 40W (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
HUFA75852G3-F085MOSFET N-CH 150V 75A TO247-3 |
0 |
|
- |
UltraFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 75A (Tc) | 10V | 16mOhm @ 75A, 10V | 4V @ 250µA | 480 nC @ 20 V | ±20V | 7690 pF @ 25 V | - | 500W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
|
FDB8832-F085MOSFET N-CH 30V 34A TO263AB |
0 |
|
规格书 |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 34A (Ta) | 4.5V, 10V | 1.9mOhm @ 80A, 10V | 3V @ 250µA | 265 nC @ 10 V | ±20V | 11400 pF @ 15 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
FDB8896-F085MOSFET N-CH 30V 19A/93A TO263AB |
0 |
|
规格书 |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 19A (Ta), 93A (Tc) | 4.5V, 10V | 5.7mOhm @ 35A, 10V | 2.5V @ 250µA | 67 nC @ 10 V | ±20V | 2525 pF @ 15 V | - | 80W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
|
HUFA75639S3ST-F085AMOSFET N-CH 100V 56A D2PAK |
0 |
|
规格书 |
UltraFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 56A (Tc) | 10V | 25mOhm @ 56A, 10V | 4V @ 250µA | 130 nC @ 20 V | ±20V | 2000 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
NDUL03N150CGMOSFET N-CH 1500V 2.5A TO3P |
0 |
|
规格书 |
- | TO-3PL | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2.5A (Ta) | 10V | 10.5Ohm @ 1.25A, 10V | - | 34 nC @ 10 V | ±30V | 650 pF @ 30 V | - | 3W (Ta), 50W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(L) |
|
STF12NM65MOSFET N-CH 650V TO220FP |
0 |
|
- |
- | TO-220-3 Full Pack | Tube | Active | - | - | - | 11A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Through Hole | TO-220FP |
|
STF30N10F7MOSFET N-CH 100V 24A TO220FP |
0 |
|
规格书 |
DeepGATE™, STripFET™ VII | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 24A (Tc) | 10V | 24mOhm @ 16A, 10V | 4.5V @ 250µA | 19 nC @ 10 V | ±20V | 1270 pF @ 50 V | - | 25W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
STF6N68K3MOSFET N-CH 680V TO220FP |
0 |
|
- |
- | TO-220-3 Full Pack | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | TO-220FP |
|
STP25N10F7MOSFET N-CH 100V 25A TO220 |
0 |
|
规格书 |
DeepGATE™, STripFET™ VII | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 25A (Tc) | 10V | 35mOhm @ 12.5A, 10V | 4.5V @ 250µA | 14 nC @ 10 V | ±20V | 920 pF @ 50 V | - | 50W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
STP80N10F7MOSFET N-CH 100V 80A TO220 |
0 |
|
规格书 |
DeepGATE™, STripFET™ VII | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A (Tc) | 10V | 10mOhm @ 40A, 10V | 4.5V @ 250µA | 45 nC @ 10 V | ±20V | 3100 pF @ 50 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
AOI530MOSFET N-CH 30V 23A/70A TO251A |
0 |
|
规格书 |
AlphaMOS | TO-251-3 Stub Leads, IPAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 23A (Ta), 70A (Tc) | 4.5V, 10V | 2.7mOhm @ 20A, 10V | 2.2V @ 250µA | 62 nC @ 10 V | ±20V | 3130 pF @ 15 V | - | 2.5W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-251A |
|
AOTF10T60PLMOSFET N-CH 600V 10A TO220F |
0 |
|
规格书 |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 700mOhm @ 5A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±30V | 1595 pF @ 100 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F |
