上传BOM
场效应晶体管（FETs）、MOSFETs
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

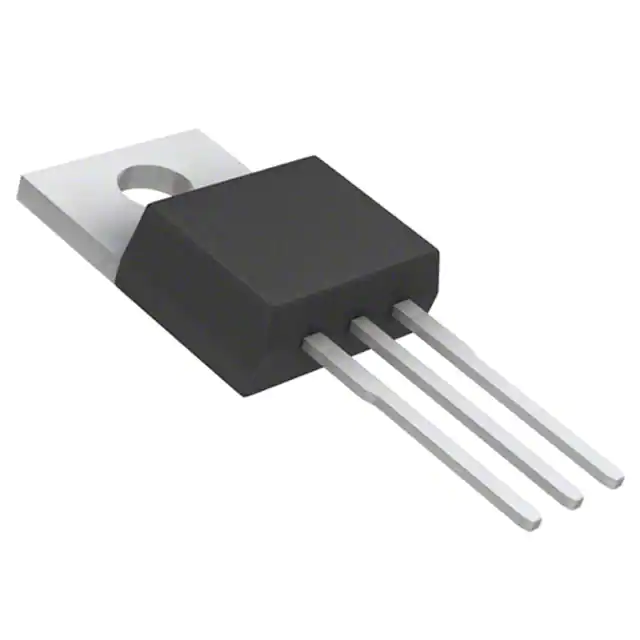

BUK753R8-80E,127MOSFET N-CH 80V 120A TO220AB |
0 |
|
规格书 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 10V | 4mOhm @ 25A, 10V | 4V @ 1mA | 169 nC @ 10 V | ±20V | 12030 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220AB |
|
BUK755R4-100E,127MOSFET N-CH 100V 120A TO220AB |
0 |
|
规格书 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 10V | 5.2mOhm @ 25A, 10V | 4V @ 1mA | 180 nC @ 10 V | ±20V | 11810 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220AB |
|
|
BUK758R3-40E,127MOSFET N-CH 40V 75A TO220AB |
0 |
|
规格书 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 7.4mOhm @ 20A, 10V | 4V @ 1mA | 24 nC @ 10 V | ±20V | 1730 pF @ 25 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220AB |
_SOT226 Pkg.jpg)
|
BUK7E1R8-40E,127MOSFET N-CH 40V 120A I2PAK |
0 |
|
规格书 |
TrenchMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 1.8mOhm @ 25A, 10V | 4V @ 1mA | 145 nC @ 10 V | ±20V | 11340 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | I2PAK |
|
|
BUK7E2R6-60E,127MOSFET N-CH 60V 120A I2PAK |
0 |
|
规格书 |
TrenchMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 2.6mOhm @ 25A, 10V | 4V @ 1mA | 158 nC @ 10 V | ±20V | 11180 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | I2PAK |
|
BUK7E4R6-60E,127MOSFET N-CH 60V 100A I2PAK |
0 |
|
规格书 |
TrenchMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 10V | 4.6mOhm @ 25A, 10V | 4V @ 1mA | 82 nC @ 10 V | ±20V | 6230 pF @ 25 V | - | 234W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | I2PAK |
|
BUK9515-60E,127MOSFET N-CH 60V 54A TO220AB |
0 |
|
- |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 54A (Tc) | 5V, 10V | 13mOhm @ 15A, 10V | 2.1V @ 1mA | 20.5 nC @ 5 V | ±10V | 2651 pF @ 25 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK951R6-30E,127MOSFET N-CH 30V 120A TO220AB |
0 |
|
- |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 120A (Tc) | 5V, 10V | 1.4mOhm @ 25A, 10V | 2.1V @ 1mA | 113 nC @ 5 V | ±10V | 16150 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK951R9-40E,127MOSFET N-CH 40V 120A TO220AB |
0 |
|
规格书 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 5V, 10V | 1.7mOhm @ 25A, 10V | 2.1V @ 1mA | 120 nC @ 5 V | ±10V | 16400 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK952R8-60E,127MOSFET N-CH 60V 120A TO220AB |
0 |
|
规格书 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 5V, 10V | 2.6mOhm @ 25A, 10V | 2.1V @ 1mA | 120 nC @ 5 V | ±10V | 17450 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK953R2-40E,127MOSFET N-CH 40V 100A TO220AB |
0 |
|
规格书 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 5V, 10V | 2.8mOhm @ 25A, 10V | 2.1V @ 1mA | 69.5 nC @ 5 V | ±10V | 9150 pF @ 25 V | - | 234W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK953R5-60E,127MOSFET N-CH 60V 120A TO220AB |
0 |
|
规格书 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 5V, 10V | 3.4mOhm @ 25A, 10V | 2.1V @ 1mA | 95 nC @ 5 V | ±10V | 13490 pF @ 25 V | - | 293W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220AB |
|
|
BUK954R4-80E,127MOSFET N-CH 80V 120A TO220AB |
0 |
|
规格书 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 5V, 10V | 4.2mOhm @ 25A, 10V | 2.1V @ 1mA | 123 nC @ 5 V | ±10V | 17130 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK956R1-100E,127MOSFET N-CH 100V 120A TO220AB |
0 |
|
规格书 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 5V, 10V | 5.9mOhm @ 25A, 10V | 2.1V @ 1mA | 133 nC @ 5 V | ±10V | 17460 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK9E3R2-40E,127MOSFET N-CH 40V 100A I2PAK |
0 |
|
规格书 |
TrenchMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 5V, 10V | 2.8mOhm @ 25A, 10V | 2.1V @ 1mA | 69.5 nC @ 5 V | ±10V | 9150 pF @ 25 V | - | 234W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | I2PAK |
|
DMP1080UCB4-7MOSFET P-CH 12V 3.3A U-WLB1010-4 |
0 |
|
规格书 |
- | 4-UFBGA, WLBGA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 3.3A (Ta) | 1.5V, 4.5V | 80mOhm @ 500mA, 4.5V | 1V @ 250µA | 5 nC @ 4.5 V | -6V | 350 pF @ 6 V | - | 820mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-WLB1010-4 |
|
BUK762R0-40E,118MOSFET N-CH 40V 120A D2PAK |
0 |
|
规格书 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 2mOhm @ 25A, 10V | 4V @ 1mA | 109.2 nC @ 10 V | ±20V | 8500 pF @ 25 V | - | 293W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
BUK762R6-40E,118MOSFET N-CH 40V 100A D2PAK |
0 |
|
规格书 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 2.6mOhm @ 25A, 10V | 4V @ 1mA | 91 nC @ 10 V | ±20V | 7130 pF @ 25 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
BUK954R8-60E,127MOSFET N-CH 60V 100A TO220AB |
0 |
|
规格书 |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 5V, 10V | 4.5mOhm @ 25A, 10V | 2.1V @ 1mA | 65 nC @ 5 V | ±10V | 9710 pF @ 25 V | - | 234W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220AB |
|
|
BUK9E1R8-40E,127MOSFET N-CH 40V 120A I2PAK |
0 |
|
规格书 |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 5V, 10V | 1.7mOhm @ 25A, 10V | 2.1V @ 1mA | 120 nC @ 5 V | ±10V | 16400 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | I2PAK |
