场效应晶体管（FETs）、MOSFETs
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTD6415ANT4GMOSFET N-CH 100V 23A DPAK |
0 |
|
规格书 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 23A (Tc) | 10V | 55mOhm @ 23A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±20V | 700 pF @ 25 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
NTD6416AN-1GMOSFET N-CH 100V 17A IPAK |
0 |
|
规格书 |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 17A (Tc) | 10V | 81mOhm @ 17A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±20V | 620 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
|
NTD6416ANL-1GMOSFET N-CH 100V 19A IPAK |
0 |
|
规格书 |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 19A (Tc) | 4.5V, 10V | 74mOhm @ 19A, 10V | 2.2V @ 250µA | 40 nC @ 10 V | ±20V | 1000 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
NTMFS4921NT3GMOSFET N-CH 30V 8.8A/58.5A 5DFN |
0 |
|
规格书 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 8.8A (Ta), 58.5A (Tc) | 4.5V, 11.5V | 6.95mOhm @ 30A, 10V | 2.5V @ 250µA | 25 nC @ 11.5 V | ±20V | 1400 pF @ 12 V | - | 870mW (Ta), 38.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
NTP6411ANGMOSFET N-CH 100V 77A TO220AB |
0 |
|
规格书 |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 77A (Tc) | 10V | 14mOhm @ 72A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 3700 pF @ 25 V | - | 217W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
NTP6413ANGMOSFET N-CH 100V 42A TO220AB |
0 |
|
规格书 |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 42A (Tc) | 10V | 28mOhm @ 42A, 10V | 4V @ 250µA | 51 nC @ 10 V | ±20V | 1800 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
NTTFS4937NTAGMOSFET N-CH 30V 11A/75A 8WDFN |
0 |
|
规格书 |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 75A (Tc) | 4.5V, 10V | 4.5mOhm @ 20A, 10V | 2.2V @ 250µA | 35.5 nC @ 10 V | ±20V | 2540 pF @ 15 V | - | 860mW (Ta), 43.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
NTTFS4937NTWGMOSFET N-CH 30V 11A/75A 8WDFN |
0 |
|
规格书 |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 75A (Tc) | 4.5V, 10V | 4.5mOhm @ 20A, 10V | 2.2V @ 250µA | 35.5 nC @ 10 V | ±20V | 2540 pF @ 15 V | - | 860mW (Ta), 43.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
NTTFS4943NTWGMOSFET N-CH 30V 8A/41A 8WDFN |
0 |
|
规格书 |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Ta), 41A (Tc) | 4.5V, 10V | 7.2mOhm @ 20A, 10V | 2.2V @ 250µA | 20.4 nC @ 10 V | ±20V | 1386 pF @ 15 V | - | 840mW (Ta), 22.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
NTTFS4945NTWGMOSFET N-CH 30V 7.1A/34A 8WDFN |
0 |
|
规格书 |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.1A (Ta), 34A (Tc) | 4.5V, 10V | 9mOhm @ 20A, 10V | 2.2V @ 250µA | 17.3 nC @ 10 V | ±20V | 1194 pF @ 15 V | - | 890mW (Ta), 20W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
IRFH5250DTRPBFMOSFET N-CH 25V 40A/100A 8PQFN |
0 |
|
规格书 |
HEXFET® | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 40A (Ta), 100A (Tc) | 4.5V, 10V | 1.4mOhm @ 50A, 10V | 2.35V @ 150µA | 83 nC @ 10 V | ±20V | 6115 pF @ 13 V | - | 3.6W (Ta), 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
IRFH5255TRPBFMOSFET N-CH 25V 15A/51A 8PQFN |
0 |
|
规格书 |
HEXFET® | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 15A (Ta), 51A (Tc) | 4.5V, 10V | 6mOhm @ 15A, 10V | 2.35V @ 25µA | 14.5 nC @ 10 V | ±20V | 988 pF @ 13 V | - | 3.6W (Ta), 26W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
IRLR8256PBFMOSFET N-CH 25V 81A DPAK |
0 |
|
规格书 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 25 V | 81A (Tc) | 4.5V, 10V | 5.7mOhm @ 25A, 10V | 2.35V @ 25µA | 15 nC @ 4.5 V | ±20V | 1470 pF @ 13 V | - | 63W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR8259PBFMOSFET N-CH 25V 57A DPAK |
0 |
|
规格书 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 25 V | 57A (Tc) | 4.5V, 10V | 8.7mOhm @ 21A, 10V | 2.35V @ 25µA | 10 nC @ 4.5 V | ±20V | 900 pF @ 13 V | - | 48W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR8256TRPBFMOSFET N-CH 25V 81A DPAK |
0 |
|
规格书 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 81A (Tc) | 4.5V, 10V | 5.7mOhm @ 25A, 10V | 2.35V @ 25µA | 15 nC @ 4.5 V | ±20V | 1470 pF @ 13 V | - | 63W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
IXTV03N400SMOSFET N-CH 4000V 300MA PLUS220 |
0 |
|
- |
- | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 4000 V | 300mA (Tc) | 10V | 290Ohm @ 500mA, 10V | 4V @ 250µA | 16.3 nC @ 10 V | ±20V | 435 pF @ 25 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
DMN4027SSS-13MOSFET N-CH 40V 6A 8SO |
0 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 6A (Ta) | 4.5V, 10V | 27mOhm @ 7A, 10V | 3V @ 250µA | 12.9 nC @ 10 V | ±20V | 604 pF @ 20 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
PHD18NQ10T,118MOSFET N-CH 100V 18A DPAK |
0 |
|
规格书 |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 18A (Tc) | 10V | 90mOhm @ 9A, 10V | 4V @ 1mA | 21 nC @ 10 V | ±20V | 633 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
PHP45NQ10TA,127MOSFET N-CH 100V 47A TO220AB |
0 |
|
- |
TrenchMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 47A (Tc) | - | 25mOhm @ 25A, 10V | 4V @ 1mA | 61 nC @ 10 V | - | 2600 pF @ 25 V | - | - | - | - | - | Through Hole | TO-220AB |
|

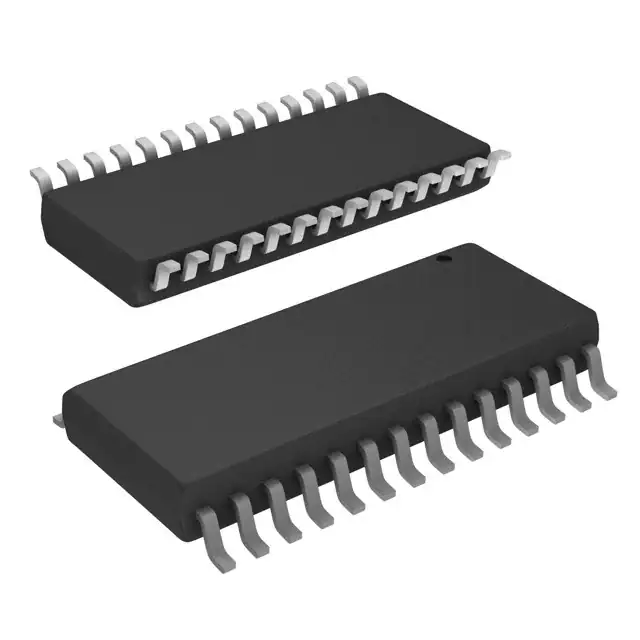

BUK9GTHP-55PJTR,51MOSFET N-CH 55V 28SO |
0 |
|
- |
- | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 28-SO |
