穿心电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

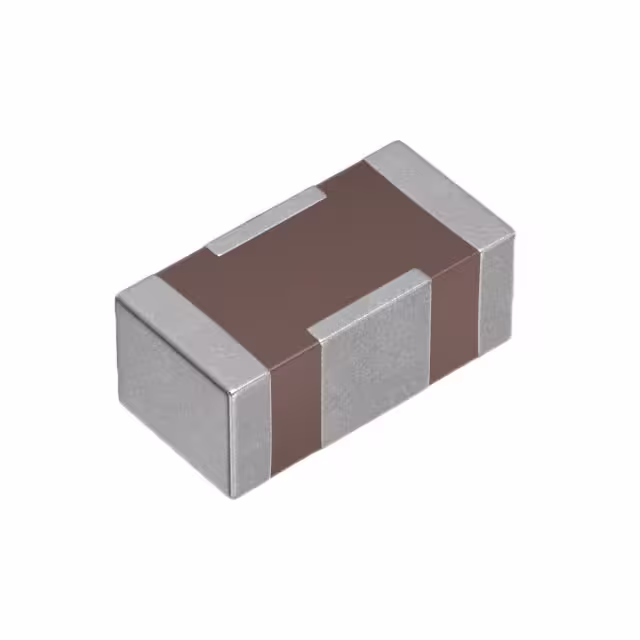

YFF31PC0J226MTJ00NCOMMERCIAL GRADE FEED THROUGH FI TDK Corporation |
8,774 |
|
规格书 |
YFF-P | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 22 µF | ±20% | 6.3V | 6 A | 5mOhm | -55°C ~ 125°C | 40dB @ 40MHz ~ 1.3GHz | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) | - |
|
YFF31HC1H153MT000NCAP FEEDTHRU 0.015UF 50V 1206 TDK Corporation |
6,490 |
|
规格书 |
YFF-HC | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 0.015 µF | ±20% | 50V | 10 A | 1.5mOhm | -55°C ~ 125°C | 40dB @ 40MHz ~ 2GHz | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.057" (1.45mm) | - |
|
YFF21PC0J226MT000NCAP FEEDTHRU 22UF 20% 6.3V 0805 TDK Corporation |
12,952 |
|
规格书 |
YFF-P | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 22 µF | ±20% | 6.3V | 4 A | 5mOhm | -55°C ~ 85°C | 40dB @ 40kHz ~ 1GHz | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | - |
|
YFF18AC1H470MT0Y0NAUTOMOTIVE GRADE FEED THROUGH FI TDK Corporation |
8,573 |
|
规格书 |
YFF-AC | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 47 pF | ±20% | 50V | 1 A | - | -55°C ~ 125°C | 30dB @ 2GHz ~ 6GHz | - | AEC-Q200 | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) | - |
|
|
YFF18AC1H471MT0Y0NAUTOMOTIVE GRADE FEED THROUGH FI TDK Corporation |
3,775 |
|
规格书 |
YFF-AC | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 470 pF | ±20% | 50V | 1 A | - | -55°C ~ 125°C | 30dB @ 400MHz ~ 6GHz | - | AEC-Q200 | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) | - |
|
|
YFF18AC1H221MT0Y0NAUTOMOTIVE GRADE FEED THROUGH FI TDK Corporation |
11,604 |
|
规格书 |
YFF-AC | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 220 pF | ±20% | 50V | 1 A | - | -55°C ~ 125°C | 30dB @ 800MHz ~ 6GHz | - | AEC-Q200 | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) | - |
|
|
YFF18AC1H472MT0Y0NAUTOMOTIVE GRADE FEED THROUGH FI TDK Corporation |
18,871 |
|
规格书 |
YFF-AC | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 4700 pF | ±20% | 50V | 1 A | - | -55°C ~ 125°C | 30dB @ 40MHz ~ 3GHz | - | AEC-Q200 | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) | - |
|
|
YFF18AC1H101MT0Y0NAUTOMOTIVE GRADE FEED THROUGH FI TDK Corporation |
8,385 |
|
规格书 |
YFF-AC | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 100 pF | ±20% | 50V | 1 A | - | -55°C ~ 125°C | 30dB @ 1.5GHz ~ 6GHz | - | AEC-Q200 | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) | - |
|
|
YFF18PW0J105MT0H0NCAP FEEDTHRU 1UF 20% 6.3V 0603 TDK Corporation |
4,017 |
|
规格书 |
YFF-P | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 1 µF | ±20% | 6.3V | 4 A | 30mOhm | -55°C ~ 105°C | 40dB @ 800kHz ~ 2GHz | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) | - |
|
|
YFF18AC1H102MT0Y0NAUTOMOTIVE GRADE FEED THROUGH FI TDK Corporation |
7,309 |
|
规格书 |
YFF-AC | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 1000 pF | ±20% | 50V | 1 A | - | -55°C ~ 125°C | 30dB @ 200MHz ~ 3GHz | - | AEC-Q200 | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) | - |
