上传BOM
穿心电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2450-001-X5U0-102PLFCAP FEEDTHRU 1000PF 500V AXIAL |
50 |
|
规格书 |
2450 | Axial, Discoidal - 1 Notched lead | Bulk | Active | 1000 pF | 0%, +100% | 500V | 20 A | - | -55°C ~ 85°C | 20dB @ 100MHz | X5U | - | Chassis Mount | 0.281" Dia x 0.186" L (7.14mm x 4.72mm) | - | - |
|

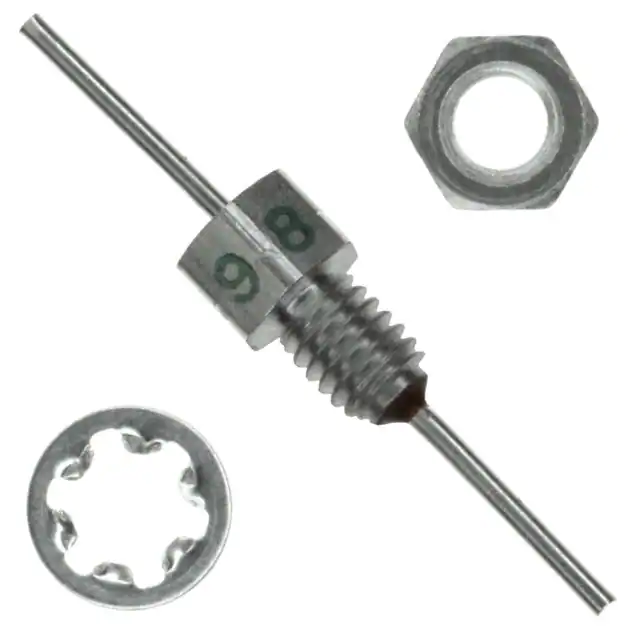

4400-098LFCAP FEEDTHRU 50V AXIAL |
15 |
|
规格书 |
4400 | Axial, Bushing | Bulk | Active | - | - | 50V | 10 A | - | -55°C ~ 125°C | 42dB @ 100MHz | - | - | - | 0.157" Dia x 0.276" L (4.00mm x 7.00mm) | - | M3x0.5 |
|
W2H11A10184T1FAEC-Q200 0805 100V 100PF |
119 |
|
规格书 |
W2H | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 100 pF | -20%, +50% | 100V | 500 mA | 150mOhm | -55°C ~ 125°C | - | C0G, NP0 | AEC-Q200 | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
|
SBSGP5000473MXBSURFACE MOUNT C AND PI FILTER |
41 |
|
规格书 |
SBSG | 1812 (4532 Metric), 3 PC Pad | Bulk | Active | 0.047 µF | ±20% | 500V | 5 A | - | -55°C ~ 125°C | 39dB @ 100MHz | X7R | - | Surface Mount | 0.179" L x 0.126" W (4.55mm x 3.20mm) | 0.104" (2.65mm) | - |
|
|
SBSMP1000224MXBSURFACE MOUNT C AND PI FILTER |
50 |
|
规格书 |
SBSM | 2220 (5750 Metric), 3 PC Pad | Bulk | Active | 0.22 µF | ±20% | 100V | 10 A | - | -55°C ~ 125°C | 44dB @ 100MHz | X7R | - | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.133" (3.38mm) | - |
|
|
SFSWG5000102MX0SOLDER MOUNT HERMETIC EMI FILTER |
100 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 1000 pF | ±20% | 500V | 5 A | - | -55°C ~ 125°C | 23dB @ 100MHz | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG5000681MX0SOLDER MOUNT HERMETIC EMI FILTER |
100 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 680 pF | ±20% | 500V | 5 A | - | -55°C ~ 125°C | 19dB @ 100MHz | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG2000153MX0SOLDER MOUNT HERMETIC EMI FILTER |
74 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 0.015 µF | ±20% | 200V | 5 A | - | -55°C ~ 125°C | 44dB @ 100MHz | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG5000472MX0SOLDER MOUNT HERMETIC EMI FILTER |
100 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 4700 pF | ±20% | 500V | 5 A | - | -55°C ~ 125°C | 36dB @ 100MHz | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG5000332MX0SOLDER MOUNT HERMETIC EMI FILTER |
100 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 3300 pF | ±20% | 500V | 5 A | - | -55°C ~ 125°C | 33dB @ 100MHz | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG5000152MX0SOLDER MOUNT HERMETIC EMI FILTER |
100 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 1500 pF | ±20% | 500V | 5 A | - | -55°C ~ 125°C | 26dB @ 100MHz | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG5000222MX0SOLDER MOUNT HERMETIC EMI FILTER |
100 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 2200 pF | ±20% | 500V | 5 A | - | -55°C ~ 125°C | 30dB @ 100MHz | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG5000103MX0SOLDER MOUNT HERMETIC EMI FILTER |
100 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 10000 pF | ±20% | 500V | 5 A | - | -55°C ~ 125°C | 41dB @ 100MHz | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG2000223MX0SOLDER MOUNT HERMETIC EMI FILTER |
100 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 0.022 µF | ±20% | 200V | 5 A | - | -55°C ~ 125°C | 46dB @ 100MHz | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG5000682MX0SOLDER MOUNT HERMETIC EMI FILTER |
100 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 6800 pF | ±20% | 500V | 5 A | - | -55°C ~ 125°C | 39dB @ 100MHz | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG1000333MX0SOLDER MOUNT HERMETIC EMI FILTER |
80 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 0.033 µF | ±20% | 100V | 5 A | - | -55°C ~ 125°C | 48dB @ 100MHz | X7R | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG5000220ZC0SOLDER MOUNT HERMETIC EMI FILTER |
100 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 22 pF | -20%, +80% | 500V | 5 A | - | -55°C ~ 125°C | 10dB @ 1GHz | C0G, NP0 | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG5000100ZC0SOLDER MOUNT HERMETIC EMI FILTER |
95 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 10 pF | -20%, +80% | 500V | 5 A | - | -55°C ~ 125°C | 4dB @ 1GHz | C0G, NP0 | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG5000330ZC0SOLDER MOUNT HERMETIC EMI FILTER |
100 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 33 pF | -20%, +80% | 500V | 5 A | - | -55°C ~ 125°C | 12dB @ 1GHz | C0G, NP0 | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
SFSWG5000101MC0SOLDER MOUNT HERMETIC EMI FILTER |
100 |
|
规格书 |
SFSWG | Axial | Bulk | Active | 100 pF | ±20% | 500V | 5 A | - | -55°C ~ 125°C | 4dB @ 100MHz | C0G, NP0 | - | Through Hole | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
