穿心电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

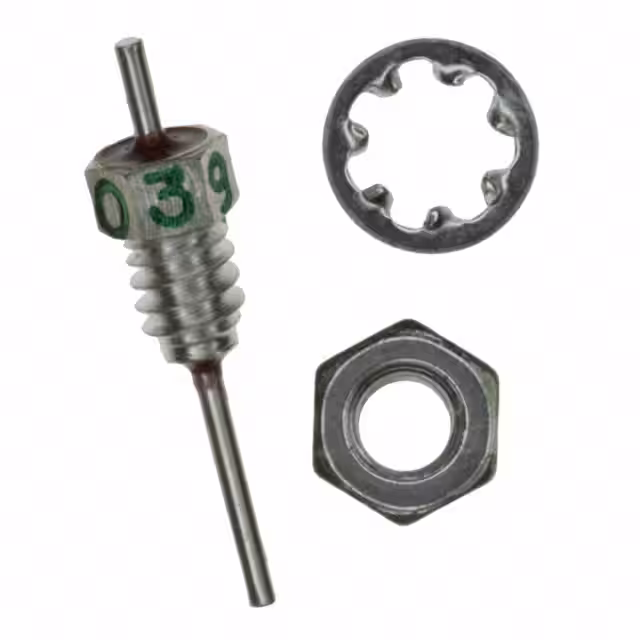

4403-039LFCAP FEEDTHRU 200V AXIAL |
0 |
|
规格书 |
4403 | Axial, Bushing | Tray | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 10dB @ 1GHz | - | - | - | 0.125" Dia x 0.215" L (3.18mm x 5.47mm) | - | 4-40 |
, 3 PC Pad.JPG)
|
NFM3DCC220U1H3LCAP FEEDTHRU 22PF 50V 1205 |
0 |
|
规格书 |
EMIFIL®, NFM3 | 1205 (3212 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | 22 pF | -20%, +50% | 50V | 300 mA | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.126" L x 0.049" W (3.20mm x 1.25mm) | 0.035" (0.90mm) | - |
|
|
NFM3DCC470U1H3LCAP FEEDTHRU 47PF 50V 1205 |
0 |
|
规格书 |
EMIFIL®, NFM3 | 1205 (3212 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | 47 pF | -20%, +50% | 50V | 300 mA | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.126" L x 0.049" W (3.20mm x 1.25mm) | 0.035" (0.90mm) | - |
|
NFM41CC220U2A3LCAP FEEDTHRU 22PF 100V 1806 |
0 |
|
规格书 |
EMIFIL®, NFM41 | 1806 (4516 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | 22 pF | -20%, +50% | 100V | 300 mA | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.177" L x 0.063" W (4.50mm x 1.60mm) | 0.047" (1.20mm) | - |
|
|
NFM41CC470U2A3LCAP FEEDTHRU 47PF 100V 1806 |
0 |
|
规格书 |
EMIFIL®, NFM41 | 1806 (4516 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | 47 pF | -20%, +50% | 100V | 300 mA | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.177" L x 0.063" W (4.50mm x 1.60mm) | 0.047" (1.20mm) | - |
|
YFF21PC1A225MT000NCAP FEEDTHRU 2.2UF 20% 10V 0805 |
0 |
|
规格书 |
YFF-P | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 10V | 2 A | 12mOhm | -55°C ~ 85°C | 40dB @ 300kHz ~ 1GHz | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | - |
|
|
YFF21PC0J106MT000NCAP FEEDTHRU 10UF 20% 6.3V 0805 |
0 |
|
规格书 |
YFF-P | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 6.3V | 4 A | 5mOhm | -55°C ~ 85°C | 40dB @ 80kHz ~ 1GHz | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | - |
|
YFF31PC0J226MT000NCAP FEEDTHRU 22UF 20% 6.3V 1206 |
0 |
|
规格书 |
YFF-P | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 6.3V | 4 A | 12mOhm | -55°C ~ 85°C | 40dB @ 40kHz ~ 1GHz | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.057" (1.45mm) | - |
|
2499-003-X7R0-101MLFCAP FEEDTHRU 100PF 250V AXIAL |
0 |
|
规格书 |
2499 | Axial, Bushing | Bulk | Active | 100 pF | ±20% | 250V | 20 A | - | -55°C ~ 125°C | - | X7R | - | - | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - | 12-28 |
|
2499-540-X7R0-102PLFCAP FEEDTHRU 1000PF 500V AXIAL |
0 |
|
规格书 |
2499 | Axial, Bushing | Bulk | Active | 1000 pF | 0%, +100% | 500V | 10 A | - | -55°C ~ 125°C | - | X7R | - | - | 0.236" Dia x 0.610" L (6.00mm x 15.50mm) | - | M5x0.8 |
|
B85321A6304B201FILTER LC(PI) 0.15UF TH |
0 |
|
规格书 |
B85321 | Axial - Threaded Terminals | Tray | Obsolete | - | - | 750V | 200 A | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - |
|
B85321A4205B630FILTER LC(PI) 1UF TH |
0 |
|
规格书 |
B85321 | Axial - Threaded Terminals | Tray | Active | - | - | 600V | 63 A | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - |
|
B85321A2363G300FILTER LC(PI) 0.018UF TH |
0 |
|
规格书 |
B85321 | Axial - Threaded Terminals | Tray | Obsolete | - | - | 600V | 30 A | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - |
|
B85121A2504A101CAP FEEDTHRU 0.5UF 600V AXIAL |
0 |
|
规格书 |
B85121 | Axial - Threaded Terminals | Tray | Obsolete | 0.5 µF | ±20% | 600V | 100 A | - | -40°C ~ 85°C | 80dB @ 100MHz | - | - | - | 2.165" Dia x 1.181" L (55.00mm x 30.00mm) | - | M8 |
|
B85121A2502C160CAP FEEDTHRU 5000PF 600V AXIAL |
0 |
|
规格书 |
B85121 | Axial, Bushing | Tray | Obsolete | 5000 pF | ±20% | 600V | 16 A | - | -40°C ~ 85°C | 40dB @ 100MHz | - | - | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - | M10x0.75 |
|
B85121A2475A630CAP FEEDTHRU 4.7UF 600V AXIAL |
0 |
|
规格书 |
B85121 | Axial - Threaded Terminals | Tray | Obsolete | 4.7 µF | ±20% | 600V | 63 A | - | -40°C ~ 85°C | 90dB @ 100MHz | - | - | - | 2.165" Dia x 2.362" L (55.00mm x 60.00mm) | - | M6 |
|

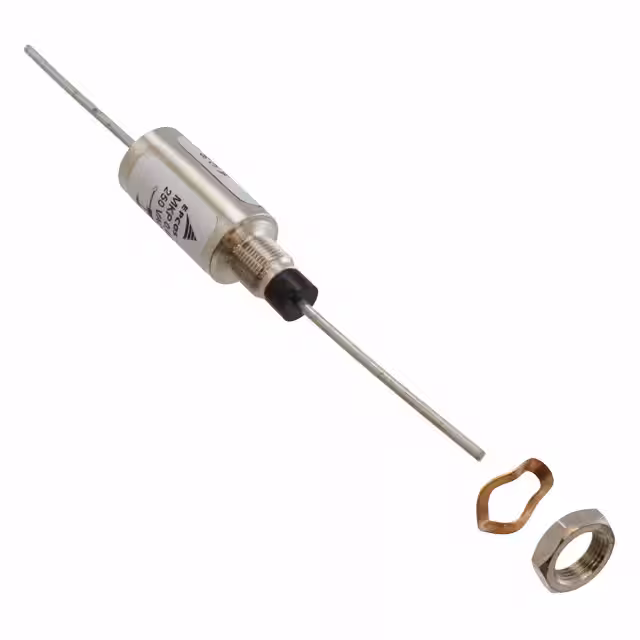

B85121A2253C160CAP FEEDTHRU 0.025UF 600V AXIAL |
0 |
|
规格书 |
B85121 | Axial, Bushing | Tray | Obsolete | 0.025 µF | ±20% | 600V | 16 A | - | -40°C ~ 85°C | 55dB @ 100MHz | - | - | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - | M10x0.75 |
|

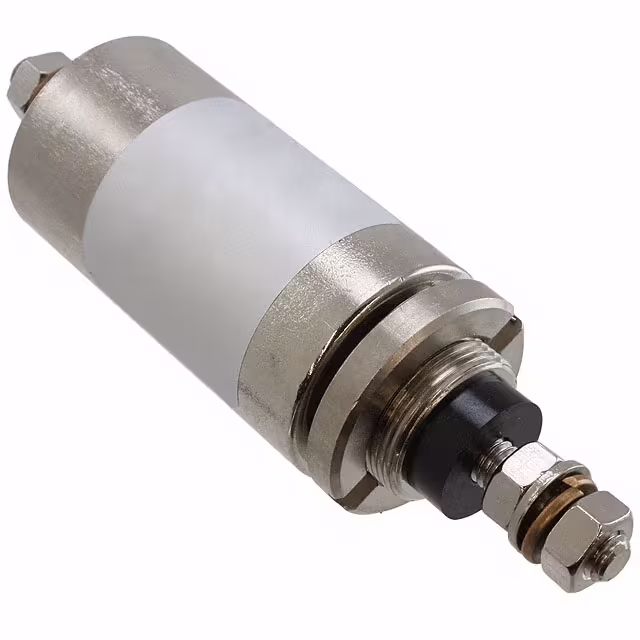

B85121A2105A750CAP FEEDTHRU 1UF 20% 600V AXIAL |
0 |
|
规格书 |
B85121 | Axial - Threaded Terminals | Tray | Obsolete | 1 µF | ±20% | 600V | 75 A | - | -40°C ~ 85°C | 85dB @ 100MHz | - | - | - | 1.181" Dia x 2.165" L (30.00mm x 55.00mm) | - | M6 |
|

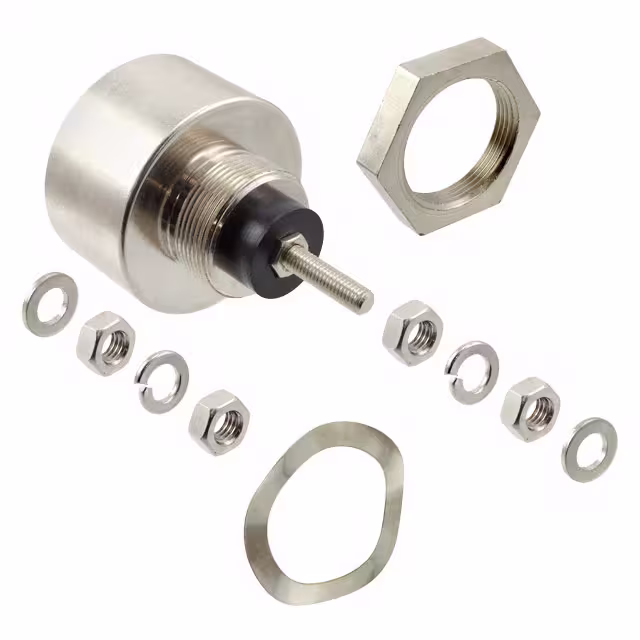

B85121A2105A630CAP FEEDTHRU 1UF 20% 600V AXIAL |
0 |
|
规格书 |
B85121 | Axial - Threaded Terminals | Tray | Obsolete | 1 µF | ±20% | 600V | 63 A | - | -40°C ~ 85°C | 85dB @ 100MHz | - | - | - | 2.165" Dia x 1.181" L (55.00mm x 30.00mm) | - | M6 |
|

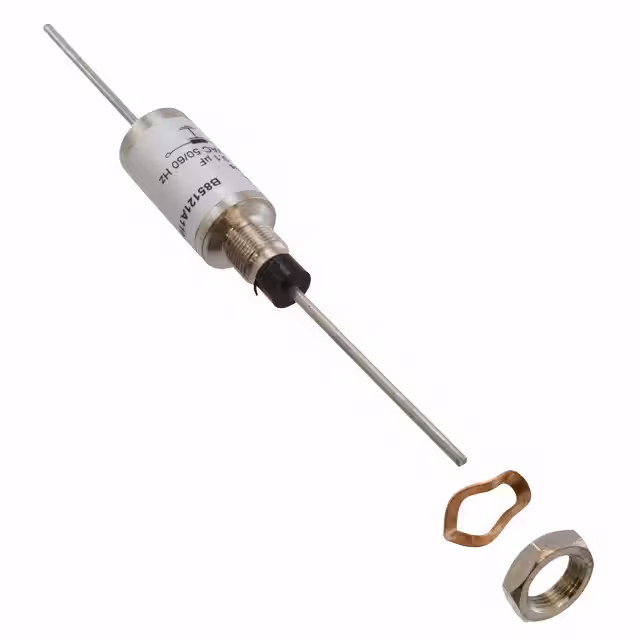

B85121A1104C160CAP FEEDTHRU 0.1UF 160V AXIAL |
0 |
|
规格书 |
B85121 | Axial, Bushing | Tray | Obsolete | 0.1 µF | ±20% | 160V | 16 A | - | -40°C ~ 85°C | 60dB @ 100MHz | - | - | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - | M10x0.75 |
