穿心电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,-4-PC-Pad.jpg)
|
NFM15PC146R0G3D0402 (1005M) CAP FEEDTHRU 14UF 4 Murata Electronics |
7,967 |
|
规格书 |
EMIFIL®, NFM15 | 0402 (1005 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 14 µF | ±20% | 4V | 2 A | 30mOhm | -55°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | - |
|
NFM18CC222R1C3DCAP FEEDTHRU 2200PF 20% 16V 0603 Murata Electronics |
24,389 |
|
规格书 |
EMIFIL®, NFM18 | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 2200 pF | ±20% | 16V | 700 mA | 300mOhm | -55°C ~ 125°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) | - |
|
|
NFM18CC223R1C3DCAP FEEDTHRU 0.022UF 16V 0603 Murata Electronics |
10,706 |
|
规格书 |
EMIFIL®, NFM18 | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 0.022 µF | ±20% | 16V | 1 A | 50mOhm | -55°C ~ 125°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) | - |
|
|
NFM18CC471R1C3DCAP FEEDTHRU 470PF 20% 16V 0603 Murata Electronics |
29,060 |
|
规格书 |
EMIFIL®, NFM18 | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 470 pF | ±20% | 16V | 500 mA | 300mOhm | -55°C ~ 125°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) | - |
|
|
NFM18CC101R1C3DCAP FEEDTHRU 100PF 20% 16V 0603 Murata Electronics |
1,893 |
|
规格书 |
EMIFIL®, NFM18 | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 100 pF | ±20% | 16V | 500 mA | 300mOhm | -55°C ~ 125°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.028" (0.70mm) | - |
|
NFM21CC223R1H3DCAP FEEDTHRU 0.022UF 50V 0805 Murata Electronics |
59,668 |
|
规格书 |
EMIFIL®, NFM21 | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 0.022 µF | ±20% | 50V | 2 A | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) | - |
|
|
NFM21CC102R1H3DCAP FEEDTHRU 1000PF 20% 50V 0805 Murata Electronics |
24,735 |
|
规格书 |
EMIFIL®, NFM21 | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 1000 pF | ±20% | 50V | 1 A | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) | - |
|
|
NFM21CC222R1H3DCAP FEEDTHRU 2200PF 20% 50V 0805 Murata Electronics |
23,791 |
|
规格书 |
EMIFIL®, NFM21 | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 2200 pF | ±20% | 50V | 1 A | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) | - |
|
|
NFM21CC221R1H3DCAP FEEDTHRU 220PF 20% 50V 0805 Murata Electronics |
17,596 |
|
规格书 |
EMIFIL®, NFM21 | 0805 (2012 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 220 pF | ±20% | 50V | 700 mA | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) | - |
|

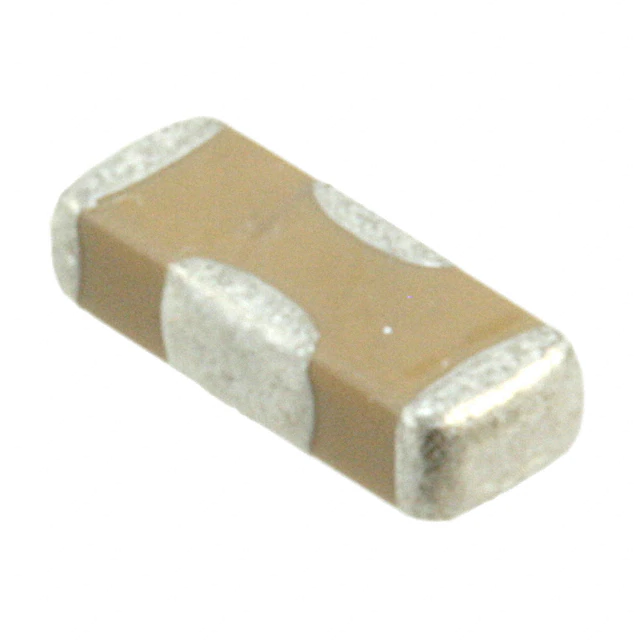

NFM3DPC223R1H3LCAP FEEDTHRU 0.022UF 50V 1205 Murata Electronics |
14,900 |
|
规格书 |
EMIFIL®, NFM3 | 1205 (3212 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 0.022 µF | -20%, +50% | 50V | 2 A | 50mOhm | -55°C ~ 125°C | - | - | - | Surface Mount | 0.126" L x 0.049" W (3.20mm x 1.25mm) | 0.035" (0.90mm) | - |
