穿心电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

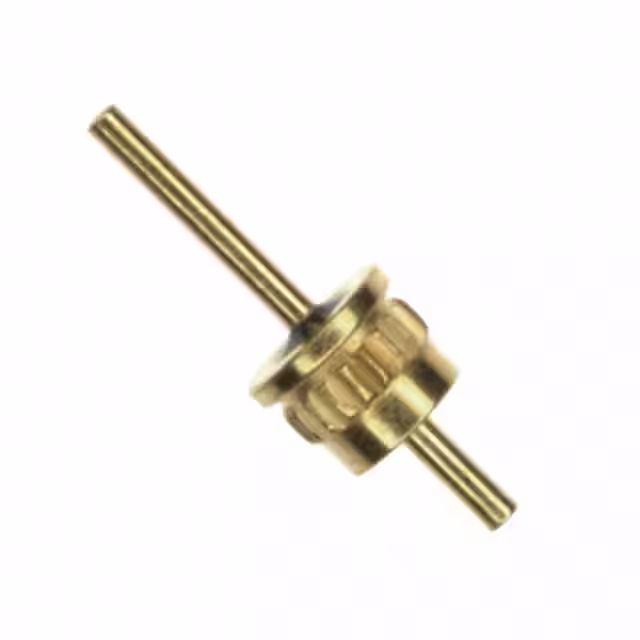

4306-016LFCAP FEEDTHRU 500PF 200V AXIAL |
0 |
|
规格书 |
4306 | Axial, Press Fit | Bulk | Active | 500 pF | 0%, +100% | 200V | 5 A | - | -55°C ~ 125°C | 15dB @ 100MHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|

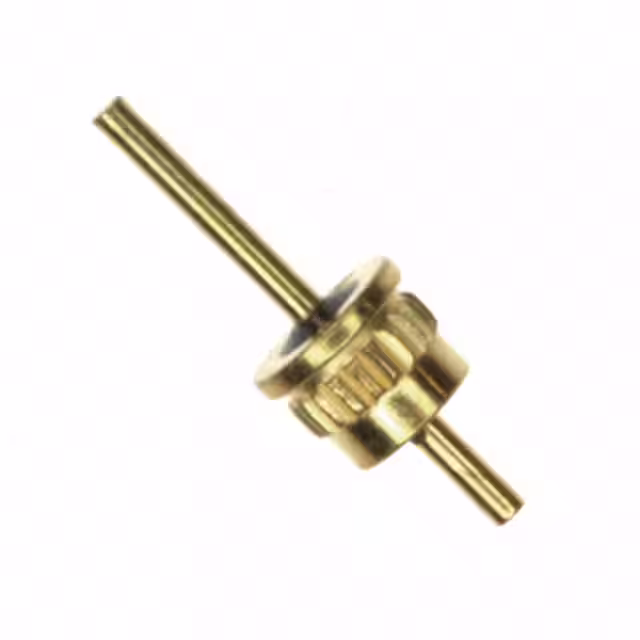

4306-017LFCAP FEEDTHRU 5000PF 100V AXIAL |
0 |
|
规格书 |
4306 | Axial, Press Fit | Bulk | Active | 5000 pF | 0%, +100% | 100V | 5 A | - | -55°C ~ 125°C | 30dB @ 100MHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-019LFCAP FEEDTHRU 25PF 200V AXIAL |
0 |
|
规格书 |
4306 | Axial, Press Fit | Bulk | Active | 25 pF | 0%, +100% | 200V | 5 A | - | -55°C ~ 125°C | 10dB @ 1GHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|

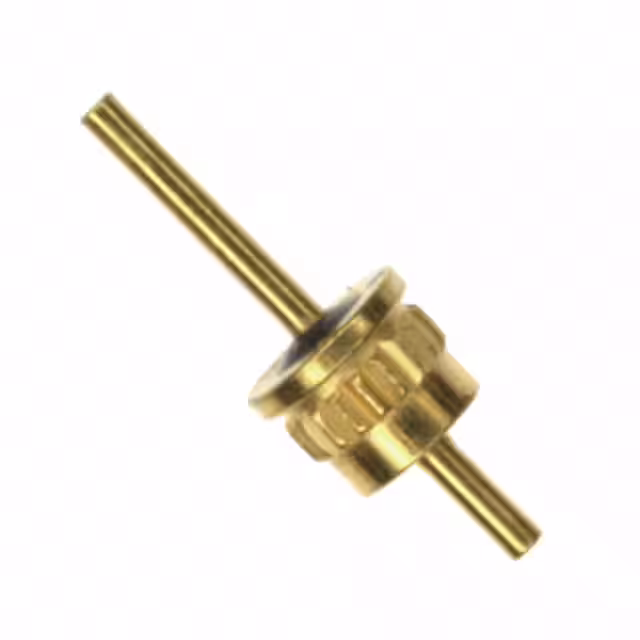

4306-021LFCAP FEEDTHRU 1000PF 200V AXIAL |
0 |
|
规格书 |
4306 | Axial, Press Fit | Bulk | Active | 1000 pF | 0%, +100% | 200V | 5 A | - | -55°C ~ 125°C | 20dB @ 100MHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|

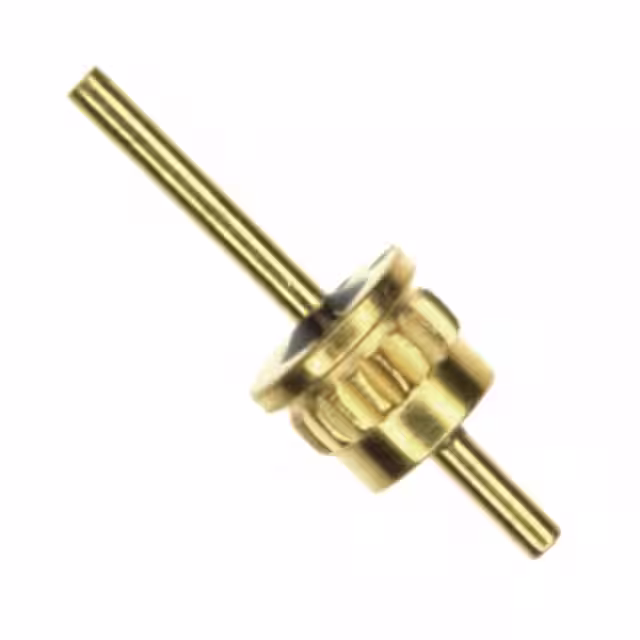

4306-022LFCAP FEEDTHRU 1500PF 200V AXIAL |
0 |
|
规格书 |
4306 | Axial, Press Fit | Bulk | Active | 1500 pF | 0%, +100% | 200V | 5 A | - | -55°C ~ 125°C | 22dB @ 100MHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|

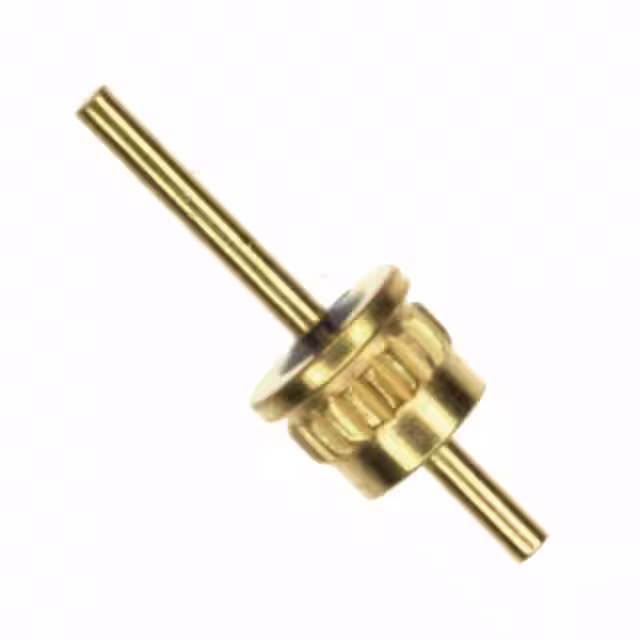

4306-023LFCAP FEEDTHRU 0.01UF 50V AXIAL |
0 |
|
规格书 |
4306 | Axial, Press Fit | Bulk | Active | 10000 pF | 0%, +100% | 50V | 5 A | - | -55°C ~ 125°C | 35dB @ 100MHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-024LFCAP FEEDTHRU 0.027UF 50V AXIAL |
0 |
|
规格书 |
4306 | Axial, Press Fit | Bulk | Active | 0.027 µF | 0%, +100% | 50V | 5 A | - | -55°C ~ 125°C | 42dB @ 100MHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|

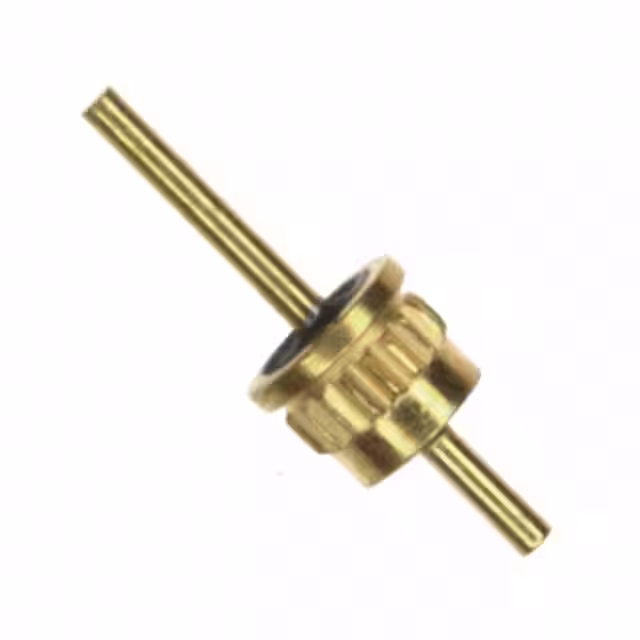

4306-028LFCAP FEEDTHRU 10PF 200V AXIAL |
0 |
|
规格书 |
4306 | Axial, Press Fit | Bulk | Active | 10 pF | 0%, +100% | 200V | 5 A | - | -55°C ~ 125°C | 5dB @ 1GHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|

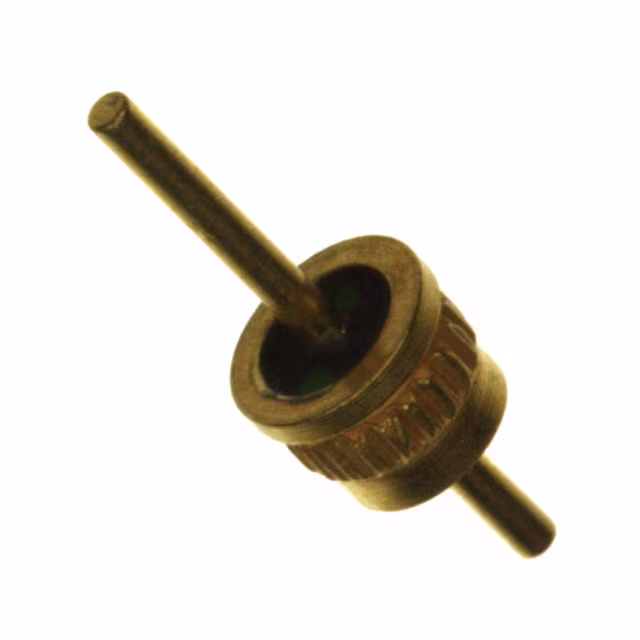

4306-029LFCAP FEEDTHRU 100PF 200V AXIAL |
0 |
|
规格书 |
4306 | Axial, Press Fit | Bulk | Active | 100 pF | 0%, +100% | 200V | 5 A | - | -55°C ~ 125°C | 3dB @ 100MHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-680LFCAP FEEDTHRU 200V AXIAL |
0 |
|
规格书 |
4306 | Axial, Press Fit | Bulk | Active | - | - | 200V | 5 A | - | -55°C ~ 125°C | - | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|

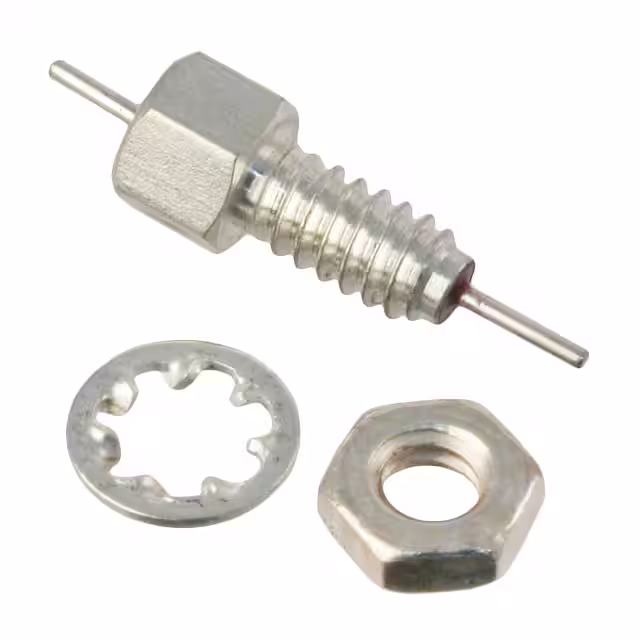

4400-004LFCAP FEEDTHRU 100V AXIAL |
0 |
|
规格书 |
4400 | Axial, Bushing | Bulk | Active | - | - | 100V | 10 A | - | -55°C ~ 125°C | 30dB @ 100MHz | - | - | - | 0.156" Dia x 0.340" L (3.97mm x 8.64mm) | - | 4-40 |
|

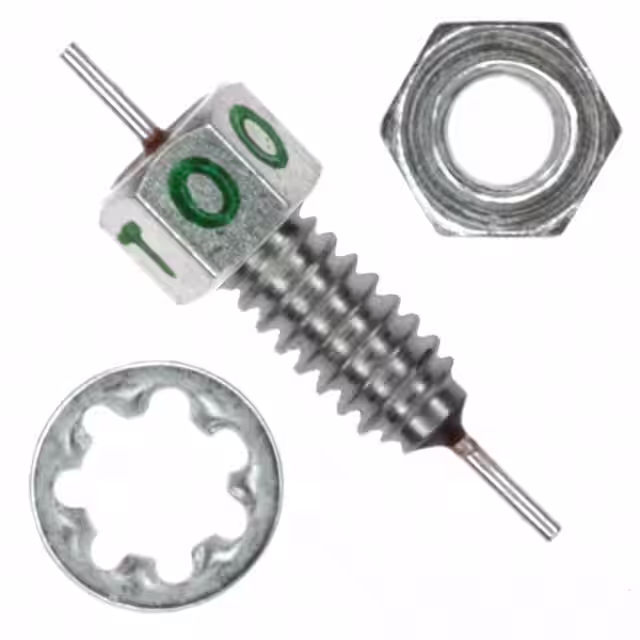

4400-007LFCAP FEEDTHRU 200V AXIAL |
0 |
|
规格书 |
4400 | Axial, Bushing | Bulk | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 20dB @ 100MHz | - | - | - | 0.156" Dia x 0.340" L (3.97mm x 8.64mm) | - | 4-40 |
|

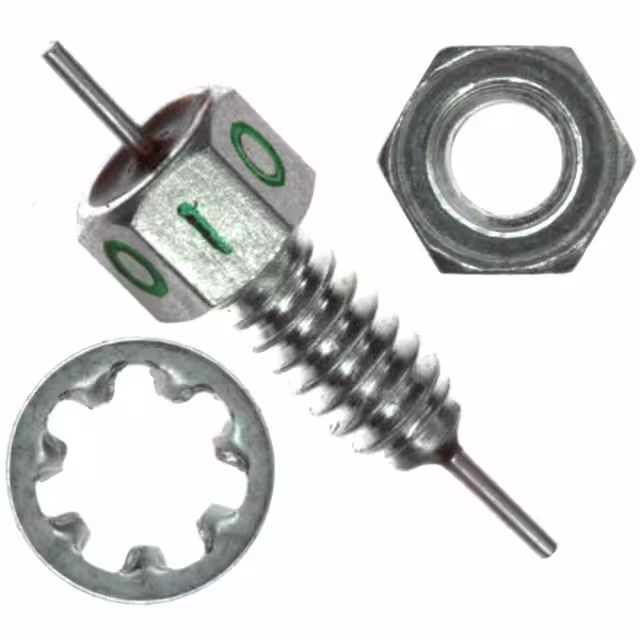

4400-010LFFILTER EMI 27000 PF C TYPE |
0 |
|
规格书 |
4400 | Axial, Bushing | Bulk | Active | 0.027 µF | - | - | 10 A | - | -55°C ~ 125°C | - | - | - | - | 0.156" Dia x 0.340" L (3.97mm x 8.64mm) | - | 4-40 |
|

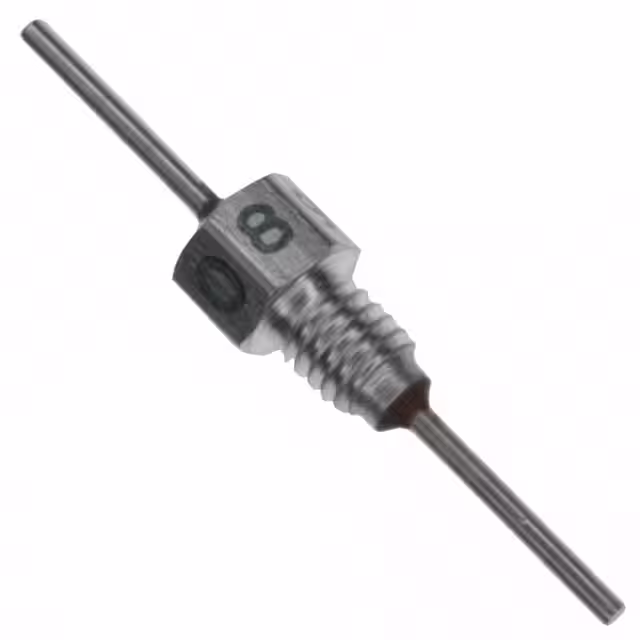

4400-089LFCAP FEEDTHRU 50V AXIAL |
0 |
|
规格书 |
4400 | Axial, Bushing | Bulk | Active | - | - | 50V | 10 A | - | -55°C ~ 125°C | 35dB @ 100MHz | - | - | - | 0.157" Dia x 0.276" L (4.00mm x 7.00mm) | - | M3x0.5 |
|

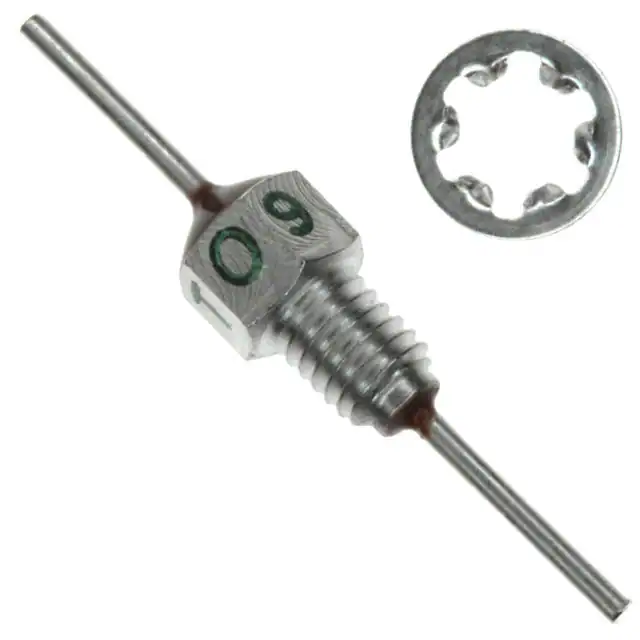

4400-091LFCAP FEEDTHRU 200V AXIAL |
0 |
|
规格书 |
4400 | Axial, Bushing | Bulk | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 20dB @ 100MHz | - | - | - | 0.157" Dia x 0.276" L (4.00mm x 7.00mm) | - | M3x0.5 |
|

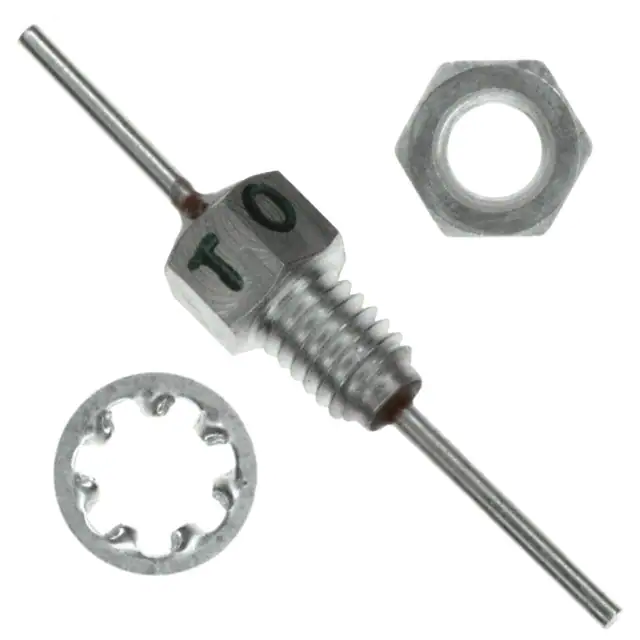

4400-096LFCAP FEEDTHRU 200V AXIAL |
0 |
|
规格书 |
4400 | Axial, Bushing | Bulk | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 15dB @ 100MHz | - | - | - | 0.157" Dia x 0.276" L (4.00mm x 7.00mm) | - | M3x0.5 |
|
4401-000LFCAP FEEDTHRU 200V AXIAL |
0 |
|
规格书 |
4401 | Axial, Bushing | Tray | Active | - | - | 200V | 10 A | - | -55°C ~ 125°C | 3dB @ 100MHz | - | - | - | 0.187" Dia x 0.130" L (4.75mm x 3.31mm) | - | 8-36 |
|
4403-037LFFILTER EMI 1000 PF C TYPE |
0 |
|
规格书 |
4400 | Axial, Bushing | Tray | Active | 1000 pF | - | - | 10 A | - | -55°C ~ 125°C | - | - | - | - | 0.125" Dia x 0.215" L (3.18mm x 5.47mm) | - | 4-40 |
|
4300-027CAP FEEDTHRU 1000PF 200V AXIAL |
0 |
|
规格书 |
4300 | Axial | Bulk | Active | 1000 pF | - | 200V | 5 A | - | -55°C ~ 125°C | 20dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
|
4300-000CAP FEEDTHRU 200V AXIAL |
0 |
|
规格书 |
4300 | Axial | Bulk | Active | - | - | 200V | 5 A | - | -55°C ~ 125°C | 3dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
