电动执行器/气缸
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EGSK-33-200-10PELECTRICAL SLIDE |
0 |
|
规格书 |
Electric slide drive | Bulk | Active | Linear Axis (Without Motor) | - | 7.874" (200.00mm) | 33.27lbf (148.0N) | - | 31.10 in/s (790.0 mm/s) | - | - | Ball Screw | ±10µm | 20.00 m/s² | - | - | - | Connector | 0°C ~ 40°C | IP10 | - |
|
|
EGSK-33-200-6PELECTRICAL SLIDE |
0 |
|
规格书 |
Electric slide drive | Bulk | Active | Linear Axis (Without Motor) | - | 7.874" (200.00mm) | 33.72lbf (150.0N) | - | 18.50 in/s (470.0 mm/s) | - | - | Ball Screw | ±10µm | 20.00 m/s² | - | - | - | Connector | 0°C ~ 40°C | IP10 | - |
|
|
ESBF-BS-50-300-5PELECTRIC CYLINDER |
0 |
|
规格书 |
ESBF | Bulk | Active | Linear Actuator | Stepper | 11.811" (300.00mm) | 1124.04lbf (5000.0N) | - | 12.99 in/s (330.0 mm/s) | 100% | - | Ball Screw | ±10µm | 5.00 m/s² | - | - | - | Connector | 0°C ~ 60°C | IP40 | - |
|
|
ELGT-BS-90-800-20PSPINDLE AXIS |
0 |
|
- |
ELGT | Bulk | Active | Linear Axis | Servo, Stepper | 31.496" (800.00mm) | 182.10lbf (810.00N) | - | 3.30 ft/s (1.0 m/s) | 100% | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP20 | - |
|
|
ELGT-BS-90-800-10PSPINDLE AXIS |
0 |
|
- |
ELGT | Bulk | Active | Linear Axis | Servo, Stepper | 31.496" (800.00mm) | 236.95lbf (1054.00N) | - | 19.69 in/s (500.0 mm/s) | 100% | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP20 | - |
|
|
ESBF-BS-50-200-20PELECTRIC CYLINDER |
0 |
|
规格书 |
ESBF | Bulk | Active | Linear Actuator | Stepper | 7.874" (200.00mm) | 1124.04lbf (5000.0N) | - | 4.36 f/s (1.3 m/s) | 100% | - | Ball Screw | ±10µm | 25.00 m/s² | - | - | - | Connector | 0°C ~ 60°C | IP40 | - |
|
|
ELGT-BS-90-900-10PSPINDLE AXIS |
0 |
|
- |
ELGT | Bulk | Active | Linear Axis | Servo, Stepper | 35.433" (900.00mm) | 236.95lbf (1054.00N) | - | 19.69 in/s (500.0 mm/s) | 100% | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP20 | - |
|
|
ELGT-BS-90-900-20PSPINDLE AXIS |
0 |
|
- |
ELGT | Bulk | Active | Linear Axis | Servo, Stepper | 35.433" (900.00mm) | 182.10lbf (810.00N) | - | 3.30 ft/s (1.0 m/s) | 100% | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP20 | - |
|
|
ESBF-BS-50-300-10PELECTRIC CYLINDER |
0 |
|
规格书 |
ESBF | Bulk | Active | Linear Actuator | Stepper | 11.811" (300.00mm) | 1124.04lbf (5000.0N) | - | 26.38 in/s (670.0 mm/s) | 100% | - | Ball Screw | ±10µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 60°C | IP40 | - |
|
|
ESBF-BS-50-400-5PELECTRIC CYLINDER |
0 |
|
规格书 |
ESBF | Bulk | Active | Linear Actuator | Stepper | 15.748" (400.00mm) | 1124.04lbf (5000.0N) | - | 12.99 in/s (330.0 mm/s) | 100% | - | Ball Screw | ±10µm | 5.00 m/s² | - | - | - | Connector | 0°C ~ 60°C | IP40 | - |
|
|
ELGT-BS-90-1000-20PSPINDLE AXIS |
0 |
|
- |
ELGT | Bulk | Active | Linear Axis | Servo, Stepper | 39.370" (1000.00mm) | 182.10lbf (810.00N) | - | 3.30 ft/s (1.0 m/s) | 100% | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP20 | - |
|
|
ELGT-BS-90-1000-10PSPINDLE AXIS |
0 |
|
- |
ELGT | Bulk | Active | Linear Axis | Servo, Stepper | 39.370" (1000.00mm) | 236.95lbf (1054.00N) | - | 19.69 in/s (500.0 mm/s) | 100% | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP20 | - |
|
|
ESBF-BS-50-300-20PELECTRIC CYLINDER |
0 |
|
规格书 |
ESBF | Bulk | Active | Linear Actuator | Stepper | 11.811" (300.00mm) | 1124.04lbf (5000.0N) | - | 4.36 f/s (1.3 m/s) | 100% | - | Ball Screw | ±10µm | 25.00 m/s² | - | - | - | Connector | 0°C ~ 60°C | IP40 | - |
|

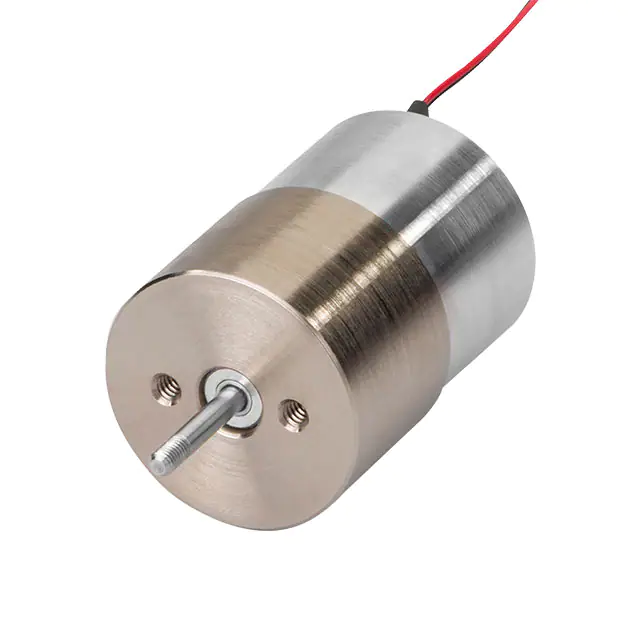

LAH28-53-000A-12EHOUSED LINEAR CYLINDRICAL VCA |
0 |
|
规格书 |
- | Bulk | Active | Linear Actuator | Voice Coil | 0.984" (25.00mm) | 60.00lbf (266.00N) | 13.50lbf (60.10N) | - | - | 31.6V | - | - | - | - | - | - | Wire Leads | - | - | - |
|
|
EGC-70-800-TB-KF-0H-GKTOOTHED BELT AXIS |
0 |
|
规格书 |
EGC | Bulk | Active | Linear Actuator | Stepper | 31.496" (800.00mm) | 22.48lbf (100.0N) | - | 16.40 f/s (5.0 m/s) | 100% | - | Belt Driven | ±80µm | 50.00 m/s² | - | - | - | Connector | -10°C ~ 60°C | IP40 | - |
|
|
ESBF-BS-50-400-10PELECTRIC CYLINDER |
0 |
|
规格书 |
ESBF | Bulk | Active | Linear Actuator | Stepper | 15.748" (400.00mm) | 1124.04lbf (5000.0N) | - | 26.38 in/s (670.0 mm/s) | 100% | - | Ball Screw | ±10µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 60°C | IP40 | - |
|
|
EGC-80-400-TB-KF-0H-GKTOOTHED BELT AXIS |
0 |
|
规格书 |
EGC | Bulk | Active | Linear Actuator | Stepper | 15.748" (400.00mm) | 78.68lbf (350.0N) | - | 16.40 f/s (5.0 m/s) | 100% | - | Belt Driven | ±80µm | 50.00 m/s² | - | - | - | Connector | -10°C ~ 60°C | IP40 | - |
|
|
ELGA-TB-KF-70-300-0HTOOTHED BELT AXIS |
0 |
|
规格书 |
ELGA | Bulk | Active | Linear Actuator | Stepper | 11.811" (300.00mm) | 78.68lbf (350.0N) | - | 16.40 ft/s (5.0 m/s) | 100% | - | Belt Driven | ±80µm | 50.00 m/s² | - | - | Incremental Encoder | Connector | -10°C ~ 60°C | IP40 | - |
|
|
ESBF-BS-50-400-20PELECTRIC CYLINDER |
0 |
|
规格书 |
ESBF | Bulk | Active | Linear Actuator | Stepper | 15.748" (400.00mm) | 1124.04lbf (5000.0N) | - | 4.36 f/s (1.3 m/s) | 100% | - | Ball Screw | ±10µm | 25.00 m/s² | - | - | - | Connector | 0°C ~ 60°C | IP40 | - |
|
|
EGC-70-100-BS-10P-KF-0H-ML-GKSPINDLE AXIS |
0 |
|
规格书 |
EGC | Bulk | Active | Linear Actuator | Stepper | 3.937" (100.00mm) | 89.92lbf (400.0N) | - | 29.53 in/s (750.0 mm/s) | 100% | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | Connector | -10°C ~ 60°C | IP40 | - |
