电动执行器/气缸
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPCS-BS-32-200-3P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
0 |
|
规格书 |
EPCS | Bulk | Active | Linear Actuator | Stepper | 7.874" (200.00mm) | 33.72lbf (150.0N) | - | 3.11 in/s (79.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 1.50 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
EGSC-BS-KF-60-50-12PMINI SLIDE |
1 |
|
规格书 |
Mini slide | Bulk | Active | Linear Actuator (Without Motor) | - | - | 56.20lbf (250.0N) | - | - | 100% | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|
|
ELFC-KF-80-2000GUIDE AXIS |
0 |
|
规格书 |
ELFC | Bulk | Active | Linear Actuator (Without Motor) | - | 78.740" (2000.00mm) | - | - | 4.90 ft/s (1.5 m/s) | 100% | - | Ball Screw | - | 500.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | - | - |
|
|
ELGC-TB-KF-80-800TOOTHED BELT AXIS |
0 |
|
规格书 |
ELGC | Bulk | Active | Linear Actuator | Stepper | 31.496" (800.00mm) | 56.20lbf (250.0N) | - | 4.90 ft/s (1.5 m/s) | 100% | - | Belt Driven | 100µm | 15.00 m/s² | - | - | Incremental Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|
|
EGSC-BS-KF-60-75-12PMINI SLIDE |
0 |
|
规格书 |
EGSC | Bulk | Active | Linear Actuator | Stepper | 2.953" (75.00mm) | 56.2lbf (250.0N) | - | 23.62 in/s (600.0 mm/s) | 100% | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP40 | - |
|
ASB340C801FD0LFSOLENOID PIEZO 34UM 150V |
0 |
|
规格书 |
ASB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0013" (34.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
|
ASB340C801ND0LFSOLENOID PIEZO 34UM 150V |
0 |
|
规格书 |
ASB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0013" (34.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
|
ELGR-TB-55-800-0HTOOTHED BELT AXIS |
0 |
|
规格书 |
ELGR | Bulk | Active | Linear Actuator | Stepper | 31.496" (800.00mm) | 78.68lbf (350.0N) | - | 9.80 ft/s (3.0 m/s) | 100% | - | Belt Driven | 100µm | 50.00 m/s² | - | - | - | Connector | -10°C ~ 50°C | IP20 | - |
|

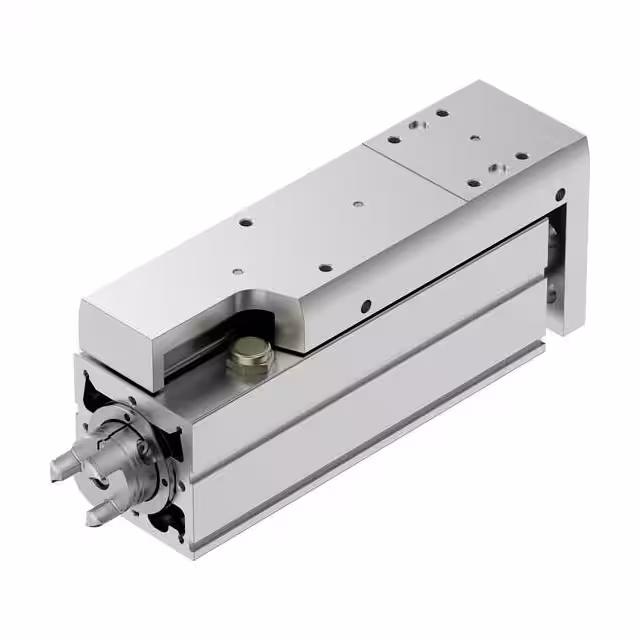

EGSC-BS-KF-60-100-12PMINI SLIDE |
1 |
|
规格书 |
Mini slide | Bulk | Active | Linear Actuator (Without Motor) | - | - | 56.20lbf (250.0N) | - | - | 100% | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|
LA15-16-024AUNHOUSED LINEAR CYLINDRICAL VCA |
1 |
|
规格书 |
- | Bulk | Active | Linear Actuator | Voice Coil | 0.250" (6.35mm) | 20.00lbf (88.90N) | 5.50lbf (24.40N) | - | - | 33V | - | - | - | - | - | - | Wire Leads | - | - | - |
|
|
ELGC-TB-KF-45-1200TOOTHED BELT AXIS |
0 |
|
规格书 |
ELGC | Bulk | Active | Linear Actuator | Stepper | 47.244" (1200.00mm) | 16.86lbf (75.0N) | - | 3.90 ft/s (1.2 m/s) | 100% | - | Belt Driven | 100µm | 15.00 m/s² | - | - | Incremental Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|
|
EPCC-BS-60-350-12P-AELECTRIC CYLINDER |
0 |
|
规格书 |
EPCC | Bulk | Active | Linear Actuator | Stepper | 13.780" (350.00mm) | 224.81lbf (1000.0N) | - | 23.62 in/s (600.0 mm/s) | 100% | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 60°C | IP40 | - |
|
|
EPCC-BS-60-350-5P-AELECTRIC CYLINDER |
0 |
|
规格书 |
EPCC | Bulk | Active | Linear Actuator | Stepper | 13.780" (350.00mm) | 224.81lbf (1000.0N) | - | 9.84 in/s (250.0 mm/s) | 100% | - | Ball Screw | ±20µm | 5.00 m/s² | - | - | - | Connector | 0°C ~ 60°C | IP40 | - |
|
|
ELGC-TB-KF-60-1000TOOTHED BELT AXIS |
0 |
|
规格书 |
ELGC | Bulk | Active | Linear Actuator | Stepper | 39.370" (1000.00mm) | 26.98lbf (120.0N) | - | 4.90 ft/s (1.5 m/s) | 100% | - | Belt Driven | 100µm | 15.00 m/s² | - | - | Incremental Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|
|
EGSC-BS-KF-60-125-12PMINI SLIDE |
0 |
|
规格书 |
EGSC | Bulk | Active | Linear Actuator | Stepper | 4.921" (125.00mm) | 56.2lbf (250.0N) | - | 23.62 in/s (600.0 mm/s) | 100% | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP40 | - |
|
|
EPCS-BS-45-150-3P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
0 |
|
规格书 |
EPCS | Bulk | Active | Linear Actuator | Stepper | 5.906" (150.00mm) | 101.16lbf (450.0N) | - | 2.91 in/s (74.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 1.50 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
|
EPCC-BS-60-400-5P-AELECTRIC CYLINDER |
0 |
|
规格书 |
EPCC | Bulk | Active | Linear Actuator | Stepper | 15.748" (400.00mm) | 224.81lbf (1000.0N) | - | 9.84 in/s (250.0 mm/s) | 100% | - | Ball Screw | ±20µm | 5.00 m/s² | - | - | - | Connector | 0°C ~ 60°C | IP40 | - |
|
|
EGSC-BS-KF-60-150-12PMINI SLIDE |
0 |
|
规格书 |
EGSC | Bulk | Active | Linear Actuator | Stepper | 5.906" (150.00mm) | 56.2lbf (250.0N) | - | 23.62 in/s (600.0 mm/s) | 100% | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | Connector | 0°C ~ 50°C | IP40 | - |
|
|
EPCS-BS-45-200-3P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
0 |
|
规格书 |
EPCS | Bulk | Active | Linear Actuator | Stepper | 7.874" (200.00mm) | 101.16lbf (450.0N) | - | 2.91 in/s (74.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 1.50 m/s² | Integrated Controller | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|

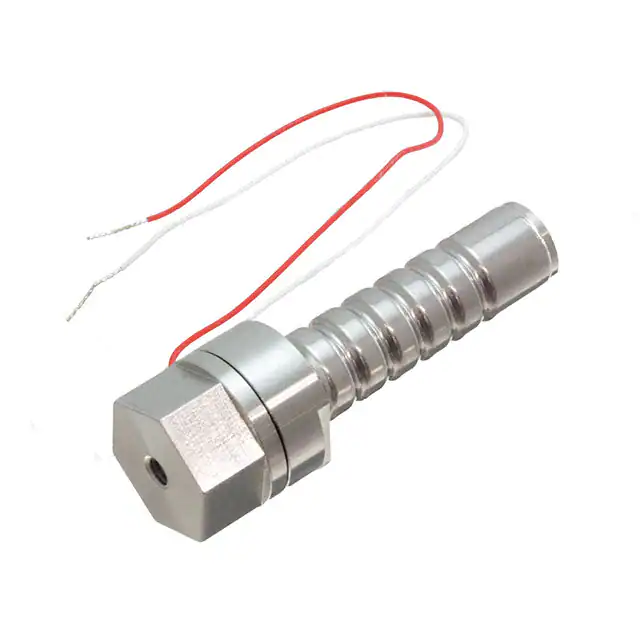

AHB550C801ND0LFAHB, METAL SEALD, 55UM, 800N, FE |
0 |
|
规格书 |
AHB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0022" (55.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
