DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5435640-2SWITCH ROCKER DIP SPST 0.06A 5V |
5,338 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 4 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
5-435626-2SWITCH ROCKER DIP SPST |
0 |
|
规格书 |
7000 | Bulk | Obsolete | SPST | 5 | - | - | Rocker | Flush, Recessed | - | - | - | Through Hole | - | - | No | - | - |
|
5435640-1SWITCH ROCKER DIP SPST 0.06A 5V |
4,695 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 7 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
KR08ETSWITCH SLIDE DIP SPST 0.025A 24V |
241 |
|
规格书 |
KR | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

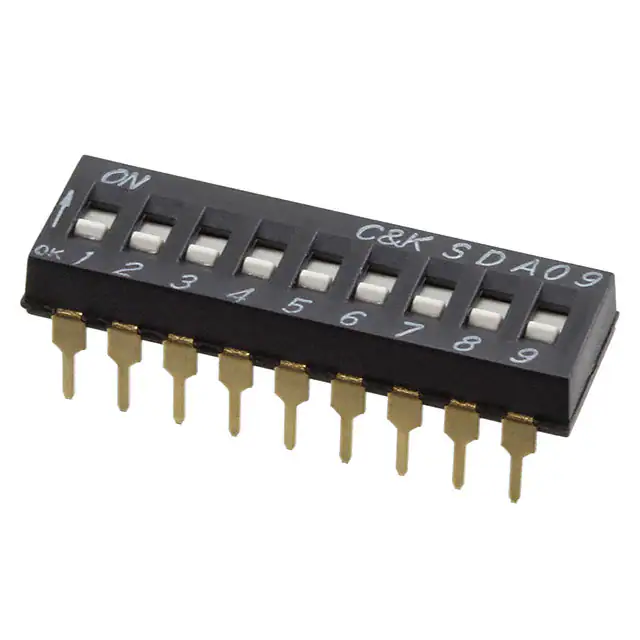

SDA09H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
162 |
|
规格书 |
SDA | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
5435640-3SWITCH ROCKER DIP SPST 0.06A 5V |
4,286 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 5 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
5435802-3SWITCH PIANO DIP SPST 0.025A 24V |
3,842 |
|
规格书 |
7000 | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
NDI10SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
NDI | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
ADP08SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
- |
ADP | Bulk | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
5435640-4SWITCH ROCKER DIP SPST 0.06A 5V |
3,299 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 6 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
3-5435640-5SWITCH ROCKER DIP SPST 0.06A 5V |
2,408 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 4 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
|
EDS09SNRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
EDS | Tape & Reel (TR) | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
KT09RHSWITCH SLIDE DIP SPST 0.025A 24V |
260 |
|
规格书 |
KT | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
TDS04SGNNTR04SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
TDS | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
3-5435640-6SWITCH ROCKER DIP SPST 0.06A 5V |
3,103 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 5 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
|
ADPA0804SWITCH PIANO DIP |
1,159 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NDA-12-VSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
NDA | Bulk | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
2-1571999-7SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
ADP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.273" (6.93mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

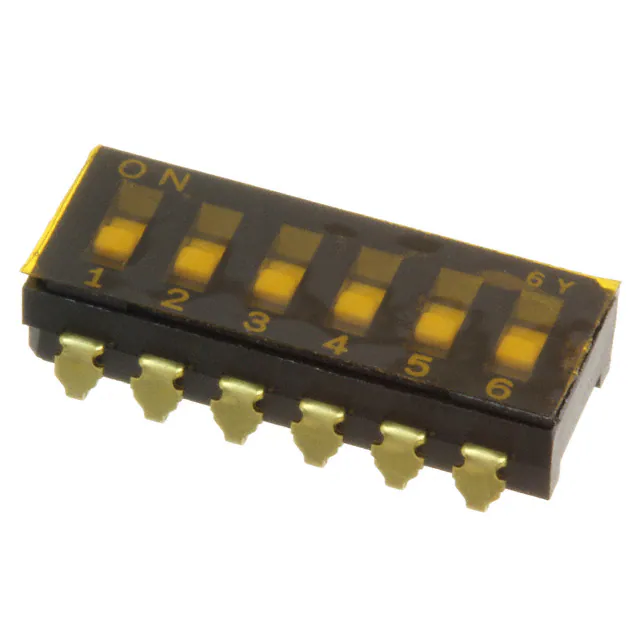

CFS-0600MASWITCH SLIDE DIP SPST 0.1A 6V |
229 |
|
规格书 |
CFS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
435640-2SWITCH ROCKER DIP SPST 0.06A 5V |
13,984 |
|
规格书 |
7100 | Bulk | Obsolete | SPST | 4 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
