DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDSP10SGLFNTR04SWITCH PIANO DIP SPST 0.025A 24V |
670 |
|
规格书 |
EDSP | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDSP10SGRNNTR04SWITCH PIANO DIP SPST 0.025A 24V |
495 |
|
规格书 |
EDSP | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
2-5435668-7SWITCH ROCKER DIP SPST 0.06A 5V |
137 |
|
规格书 |
7100 | Tube | Active | SPST | 7 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
SD09H0BSWITCH SLIDE DIP SPST 0.1A 25V |
495 |
|
规格书 |
SD | Tube | Active | SPST | 9 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
EDSP06SGLNNTU04SWITCH PIANO DIP SPST 0.025A 24V |
1,432 |
|
规格书 |
EDSP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
A6HF-6102-PMSWITCH SLIDE DIP SPST 0.025A 24V |
1,079 |
|
规格书 |
A6HF | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
RD07A10RVBTSWITCH ROTARY DIP BCD 0.1A 50V |
385 |
|
规格书 |
RD07 | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD07B10RVATSWITCH ROTARY DIP BCD 0.1A 50V |
185 |
|
规格书 |
RD07 | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD07A10CVATSW ROTARY DIP BCD COMP 0.1A 50V |
177 |
|
规格书 |
RD07 | Tube | Active | BCD Complement | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD07A16CVBTSW ROTARY DIP HEX COMP 0.1A 50V |
165 |
|
规格书 |
RD07 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
428542320811SW ROTARY DIP BCD COMP 0.1A 42V |
986 |
|
规格书 |
WS-ROSV | Tape & Reel (TR) | Active | BCD Complement | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|

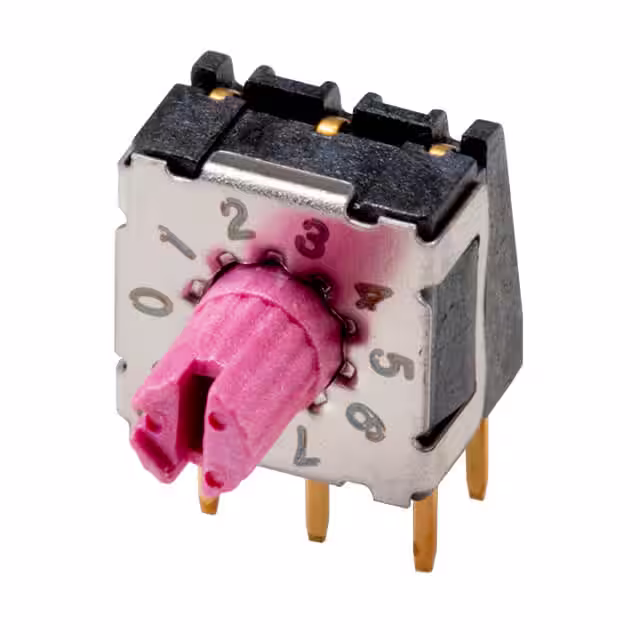

RDS-10S-74R45A-254-DSWITCH ROTARY DIP BCD 0.1A 42V |
659 |
|
规格书 |
RDS-74R45A-254 | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|

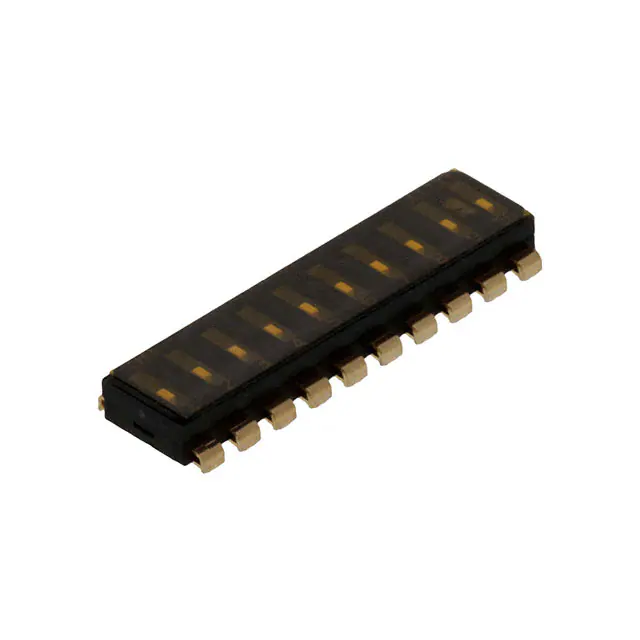

EDS10SNRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
507 |
|
规格书 |
EDS | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

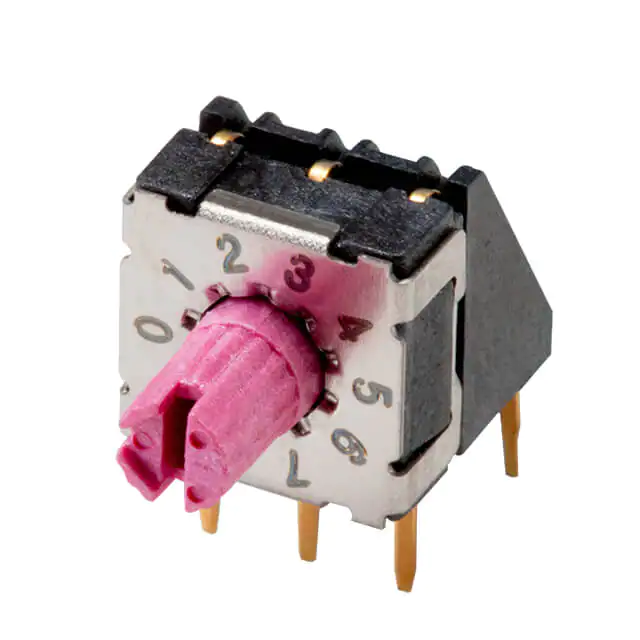

RDS-10S-74R45A-508-DSWITCH ROTARY DIP BCD 0.1A 42V |
640 |
|
规格书 |
RDS-74R45A-508 | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
|
EDS10SNRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
584 |
|
规格书 |
EDS | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDSP06SGRNNTR04SWITCH PIANO DIP SPST 0.025A 24V |
1,345 |
|
规格书 |
EDSP | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
A6SN-0101-PSWITCH SLIDE DIP SPST 0.025A 24V |
292 |
|
规格书 |
A6SN | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
A6SN-0102-PSWITCH SLIDE DIP SPST 0.025A 24V |
246 |
|
规格书 |
A6SN | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
EDSP06SGRNSTR04SWITCH PIANO DIP SPST 0.025A 24V |
1,400 |
|
规格书 |
EDSP | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

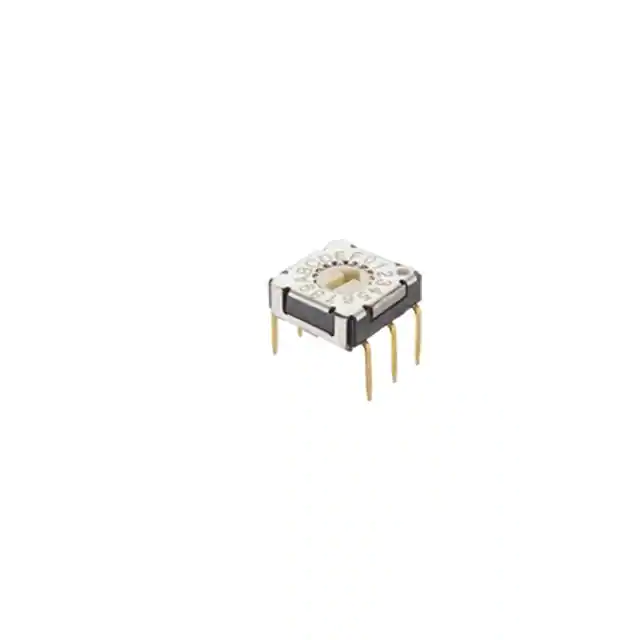

RTF04R0CSWITCH ROTARY DIP BCD 0.1A 5V |
706 |
|
规格书 |
RTF | Tube | Active | BCD | 4 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
