DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD07B4RVATSWITCH ROTARY DIP BCD 0.1A 50V CIT Relay and Switch |
0 |
|
规格书 |
RD07 | Tube | Active | BCD | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD07C4RVATSWITCH ROTARY DIP BCD 0.1A 50V CIT Relay and Switch |
0 |
|
规格书 |
RD07 | Tube | Active | BCD | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10RA4CVATSW ROTARY DIP BCD COMP 0.15A 50V CIT Relay and Switch |
0 |
|
规格书 |
RD10 | Tube | Active | BCD Complement | 4 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10AB4CVBTSW ROTARY DIP BCD COMP 0.15A 50V CIT Relay and Switch |
0 |
|
规格书 |
RD10 | Tube | Active | BCD Complement | 4 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10AB10RVBTSWITCH ROTARY DIP BCD 0.15A 50V CIT Relay and Switch |
0 |
|
规格书 |
RD10 | Tube | Active | BCD | 10 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

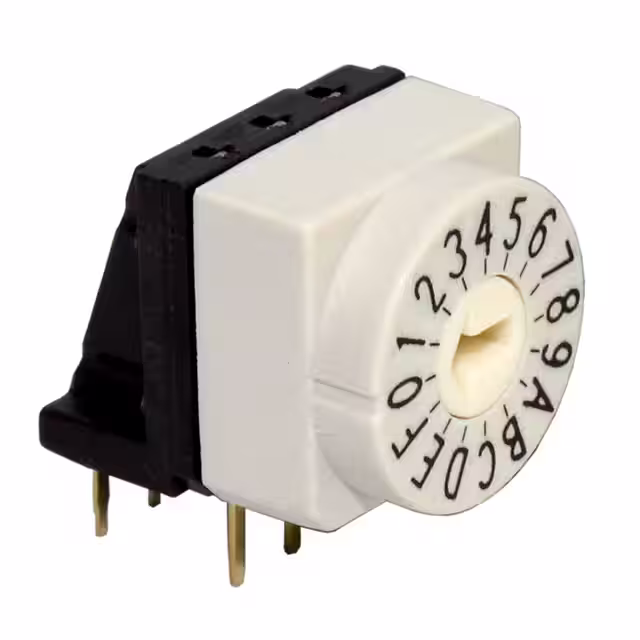

RD10RA16RVBTSWITCH ROTARY DIP HEX 0.15A 50V CIT Relay and Switch |
0 |
|
规格书 |
RD10 | Tube | Active | Hexadecimal | 16 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10AA8CVATSW ROTARY DIP OCT COMP 0.15A 50V CIT Relay and Switch |
0 |
|
规格书 |
RD10 | Tube | Active | Octal Complement | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

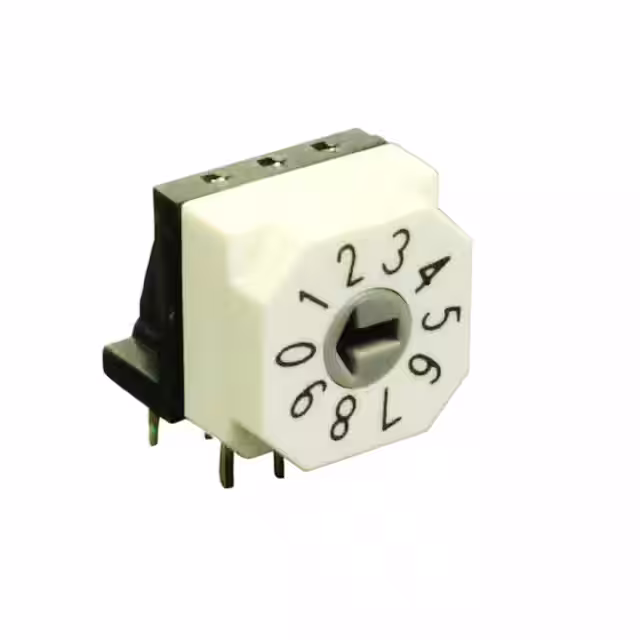

RD10AA10CVBTSW ROTARY DIP BCD COMP 0.15A 50V CIT Relay and Switch |
0 |
|
规格书 |
RD10 | Tube | Active | BCD Complement | 10 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10RB10CVBTSW ROTARY DIP BCD COMP 0.15A 50V CIT Relay and Switch |
0 |
|
规格书 |
RD10 | Tube | Active | BCD Complement | 10 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10RB4RVBTSWITCH ROTARY DIP BCD 0.15A 50V CIT Relay and Switch |
0 |
|
规格书 |
RD10 | Tube | Active | BCD | 4 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
