| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KJ02RXTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
0 |
|
规格书 |
KJ | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KP05RSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
0 |
|
规格书 |
KP | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ02EXTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
0 |
|
规格书 |
KJ | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KP05ESWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
0 |
|
规格书 |
KP | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ03EXTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
0 |
|
规格书 |
KJ | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ03RXTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
0 |
|
规格书 |
KJ | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|

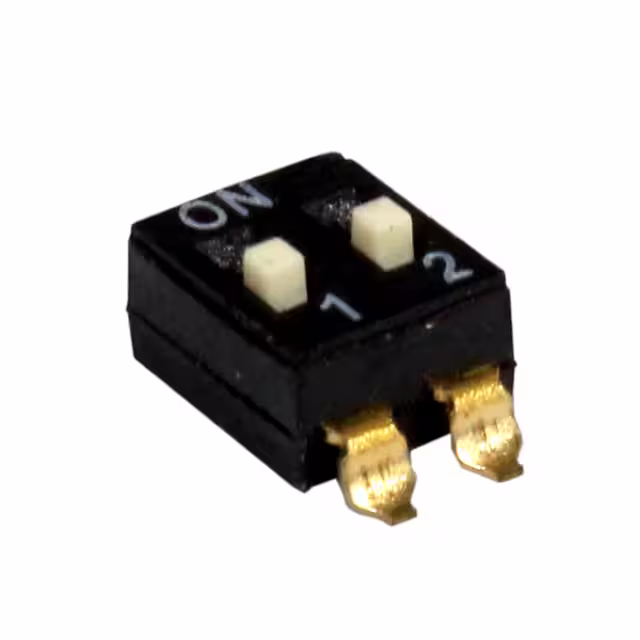

KJ02EXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
0 |
|
规格书 |
KJ | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KJ02RXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
0 |
|
规格书 |
KJ | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KP05ETSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
0 |
|
规格书 |
KP | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KP05RTSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
0 |
|
规格书 |
KP | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
