DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD07B10RVATSWITCH ROTARY DIP BCD 0.1A 50V CIT Relay and Switch |
185 |
|
规格书 |
RD07 | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD07A10CVATSW ROTARY DIP BCD COMP 0.1A 50V CIT Relay and Switch |
177 |
|
规格书 |
RD07 | Tube | Active | BCD Complement | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

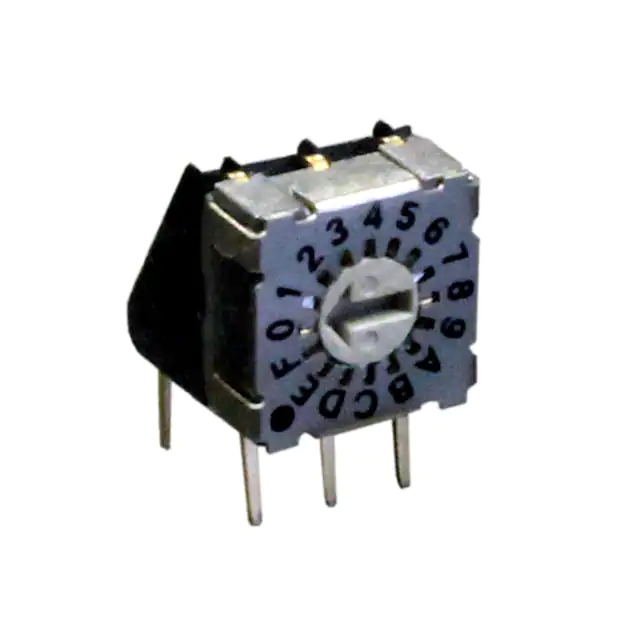

RD07A16CVBTSW ROTARY DIP HEX COMP 0.1A 50V CIT Relay and Switch |
165 |
|
规格书 |
RD07 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

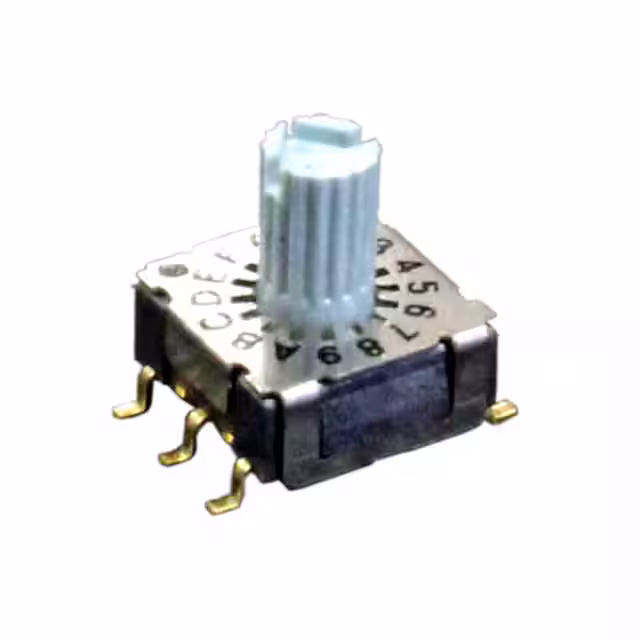

RD07B16RGRSWITCH ROTARY DIP HEX 0.1A 50V CIT Relay and Switch |
5,500 |
|
规格书 |
RD07 | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.344" (8.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KG01ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,221 |
|
规格书 |
KG | Tube | Obsolete | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KG04ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,415 |
|
规格书 |
KG | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KG02ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,410 |
|
规格书 |
KG | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KR02ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
320 |
|
规格书 |
KR | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

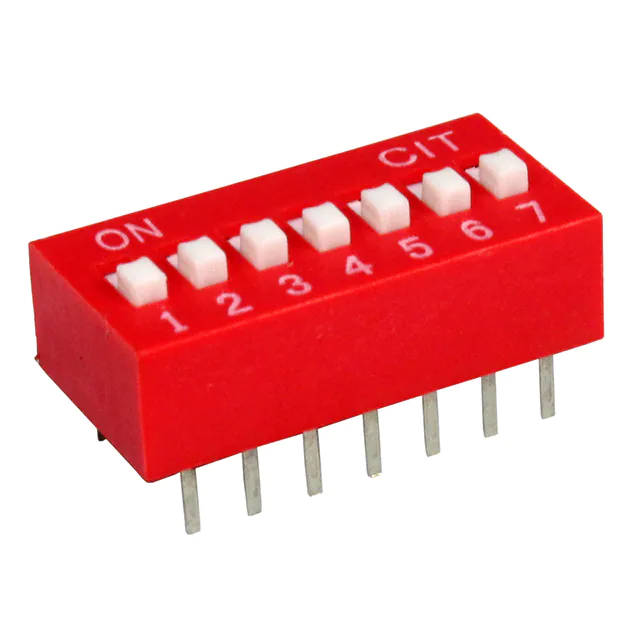

KG07ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,386 |
|
规格书 |
KG | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

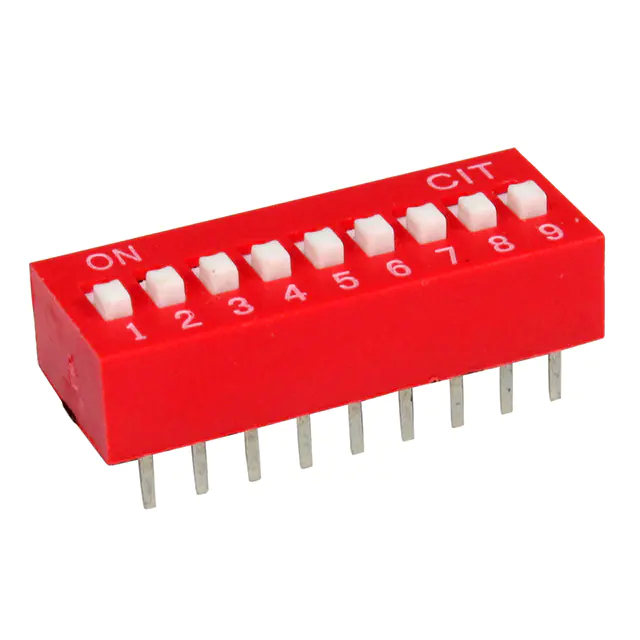

KG09ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
198 |
|
规格书 |
KG | Tube | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
