DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH-7030TASW ROTARY DIP BCD COMP 0.1A 5V |
17,158 |
|
规格书 |
SH-7000 | Tape & Reel (TR) | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.148" (3.75mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

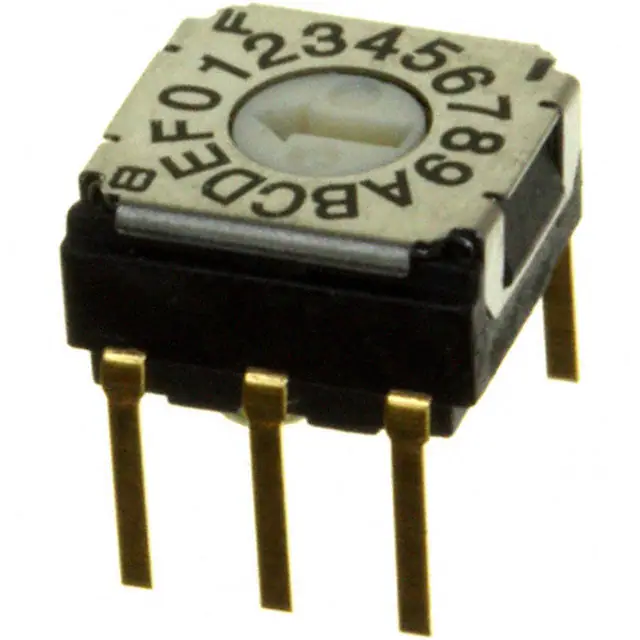

SH-7070MCSW ROTARY DIP HEX COMP 0.1A 5V |
1,076 |
|
规格书 |
SH-7000 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

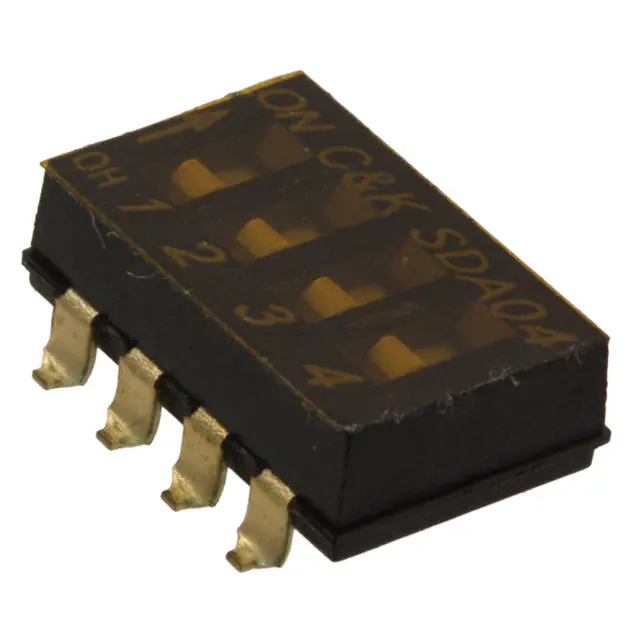

SDA04H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
1,040 |
|
规格书 |
SDA | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
428527520908SW ROTARY DIP OCTAL 0.15A 24V |
356 |
|
规格书 |
WS-ROTV | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
EDS10SGNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
4,705 |
|
规格书 |
EDS | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
SD02H1SBSWITCH SLIDE DIP SPST 0.1A 25V |
411 |
|
规格书 |
SD | Tube | Active | SPST | 2 | 100mA | 25VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.180" (4.57mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

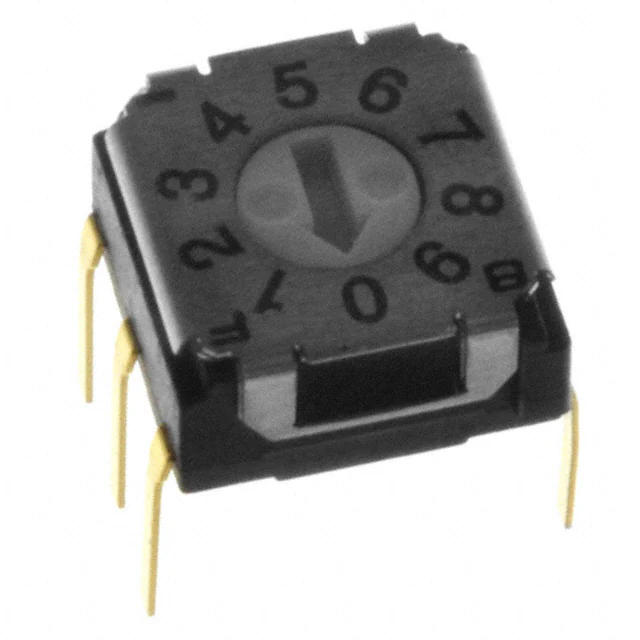

SH-7030MCSW ROTARY DIP BCD COMP 0.1A 5V |
308 |
|
规格书 |
SH-7000 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10RA10RGRSWITCH ROTARY DIP BCD 0.15A 50V |
888 |
|
规格书 |
RD10 | Tape & Reel (TR) | Active | BCD | 10 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

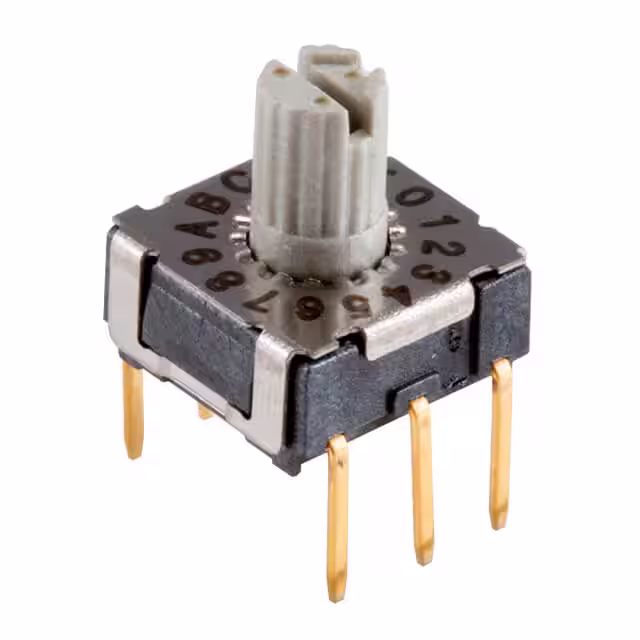

RDS-16S-74365-45A-DSWITCH ROTARY DIP HEX 0.1A 42V |
603 |
|
规格书 |
RDS-74365-45A | Tube | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|

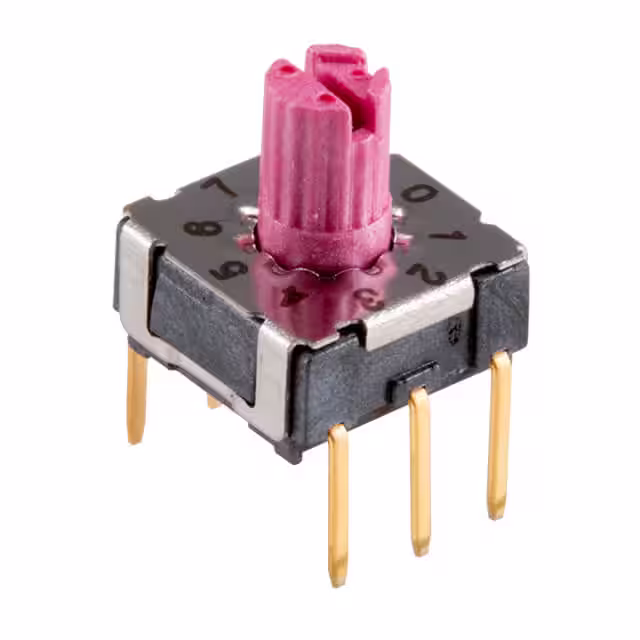

RDS-10S-74365-45A-DSWITCH ROTARY DIP BCD 0.1A 42V |
259 |
|
规格书 |
RDS-74365-45A | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|

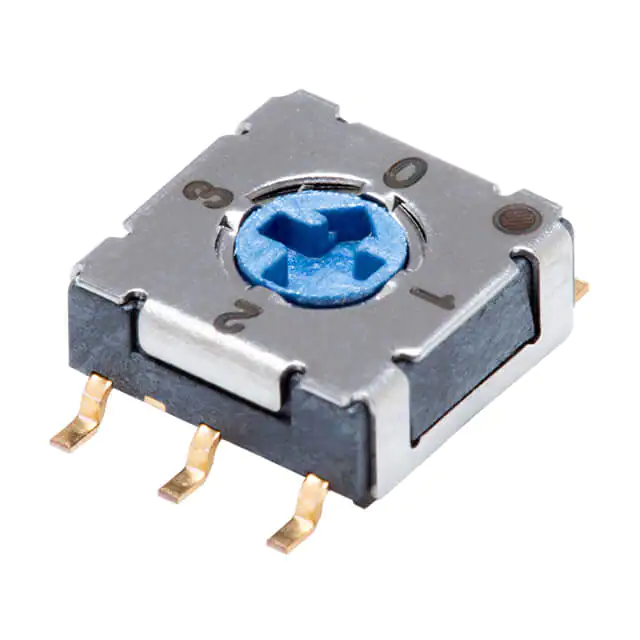

RDS-4S-7229-C-SMTSWITCH ROTARY DIP BCD 0.1A 50V |
1,030 |
|
规格书 |
RDS-7229-SMT | Tube | Active | BCD | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

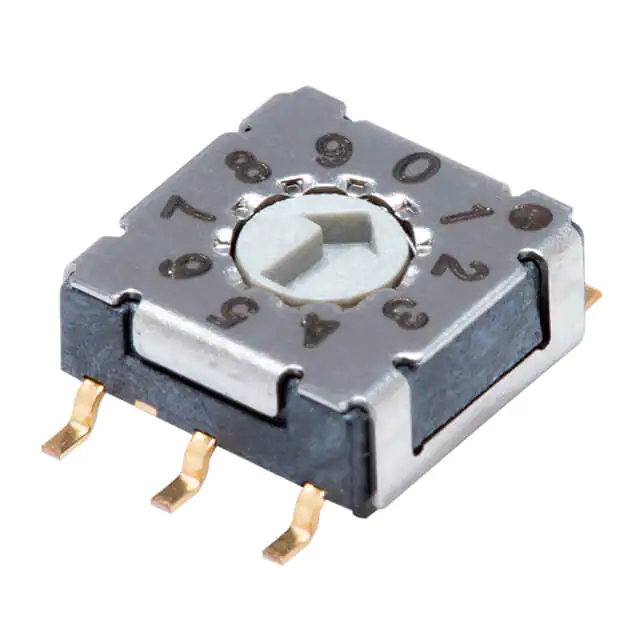

RDS-10S-7229-A-SMTSWITCH ROTARY DIP BCD 0.1A 50V |
354 |
|
规格书 |
RDS-7229-SMT | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RD10RA16CVATSW ROTARY DIP HEX COMP 0.15A 50V |
174 |
|
规格书 |
RD10 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

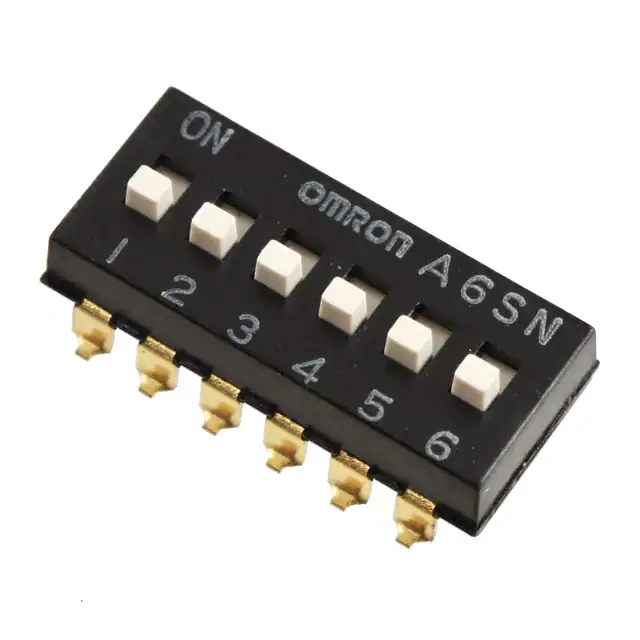

A6SN-6104-PSWITCH SLIDE DIP SPST 0.025A 24V |
2,340 |
|
规格书 |
A6SN | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

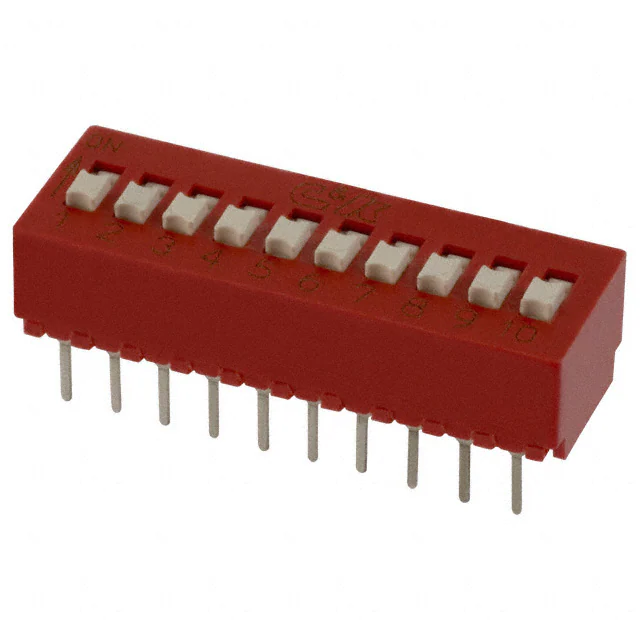

BD10SWITCH SLIDE DIP SPST 0.1A 5V |
165 |
|
规格书 |
BD | Tube | Active | SPST | 10 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

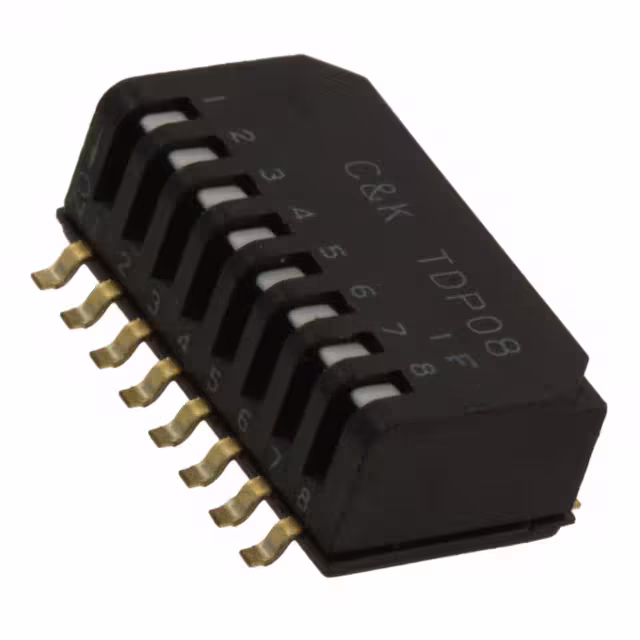

TDP08H0SBD1SWITCH PIANO DIP SPST 0.025A 24V |
1,593 |
|
规格书 |
TDP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

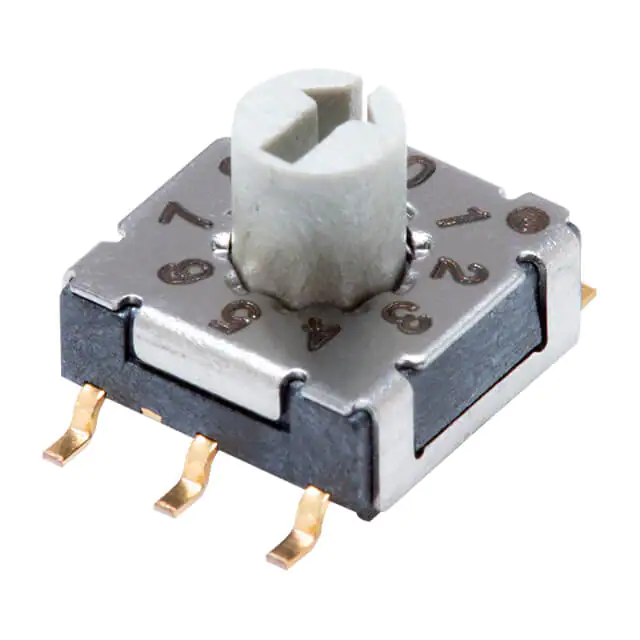

RDS-10S-7229-R-SMTSWITCH ROTARY DIP BCD 0.1A 50V |
485 |
|
规格书 |
RDS-7229-SMT | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

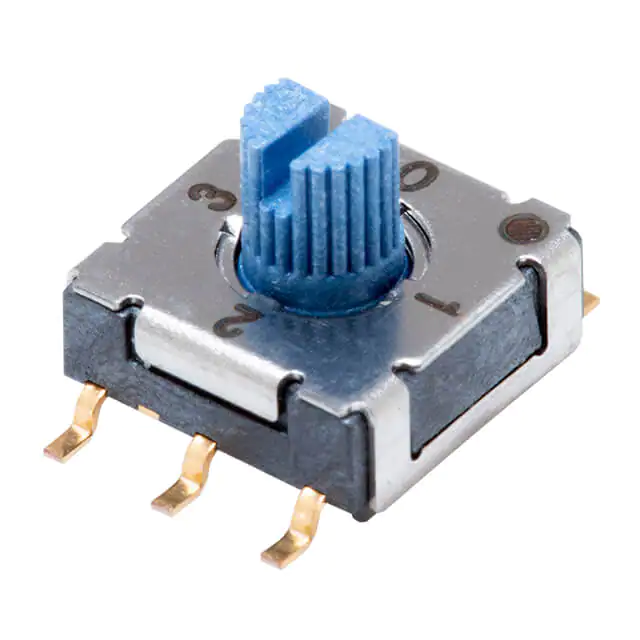

RDS-4S-7229-S-SMTSWITCH ROTARY DIP BCD 0.1A 50V |
399 |
|
规格书 |
RDS-7229-SMT | Tube | Active | BCD | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RD10RA16RGTSWITCH ROTARY DIP HEX 0.15A 50V |
355 |
|
规格书 |
RD10 | Tube | Active | Hexadecimal | 16 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
A6S-6102-HSWITCH SLIDE DIP SPST 0.025A 24V |
125 |
|
规格书 |
A6S-H | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
