DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DP06TSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DP | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DP07TSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DP | Tube | Obsolete | SPST | 7 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DP09SWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DP | Tube | Obsolete | SPST | 9 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP09TSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DP | Tube | Obsolete | SPST | 9 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DP10TSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DP | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DP12SWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DP | Tube | Obsolete | SPST | 12 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP12TSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DP | Tube | Obsolete | SPST | 12 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DPL03TSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DPL | Tube | Obsolete | SPST | 3 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DPL04USWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DPL | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DPL05TSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DPL | Tube | Obsolete | SPST | 5 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DPL06TVAMSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DPL | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DPL07TSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DPL | Tube | Obsolete | SPST | 7 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DPL08TNSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DPL | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DPL09TSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DPL | Tube | Obsolete | SPST | 9 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DPL10TSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DPL | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DPL12BUTVSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DPL | Tube | Obsolete | SPST | 12 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DPL12UBTSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DPL | Tube | Obsolete | SPST | 12 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DPL12UTVSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
- |
DPL | Tube | Obsolete | SPST | 12 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|

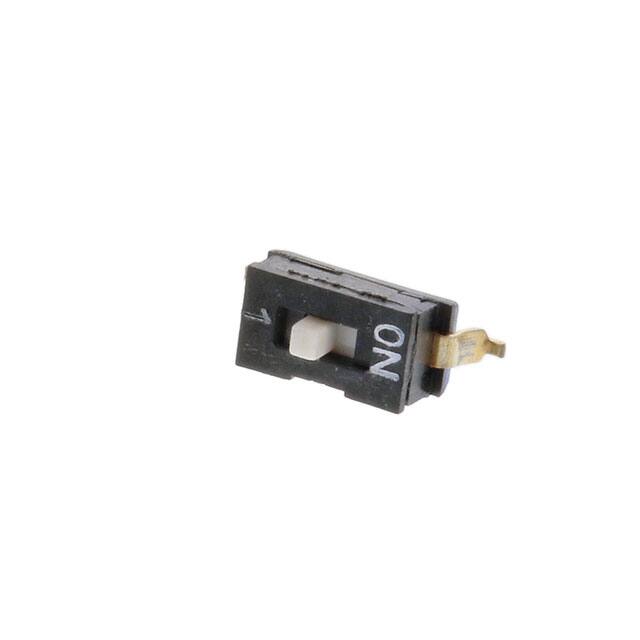

SDB01H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
SDB | Tube | Obsolete | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

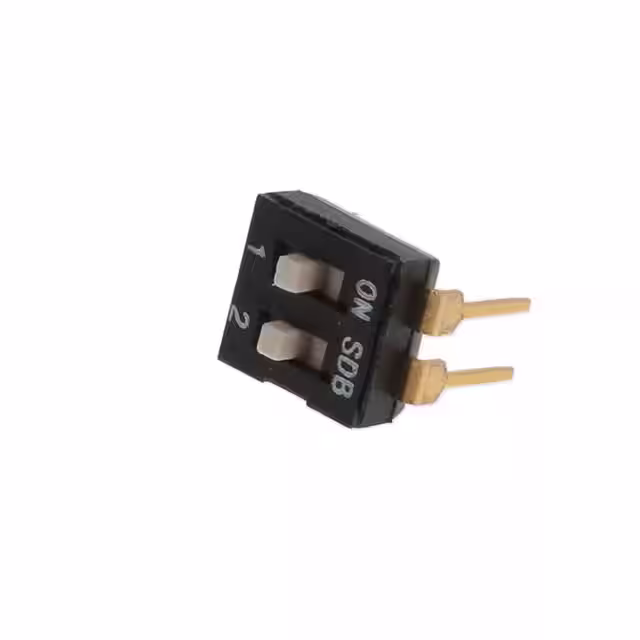

SDB02H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
SDB | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.179" (4.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
