DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78C08RATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
78C | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
78C08SRATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
78C | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
78C09SRATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
78C | Tube | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
78C10RATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
78C | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
78C10SRATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
78C | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
78C12RATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
78C | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
78C12SRATSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
78C | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
78G01RATSWITCH SLIDE DIP 3PST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | 3PST | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78G02SRATSWITCH SLIDE DIP 3PST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | 3PST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78G03SRATSWITCH SLIDE DIP 3PST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | 3PST | 3 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78H02RATSWITCH SLIDE DIP 4PST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | 4PST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

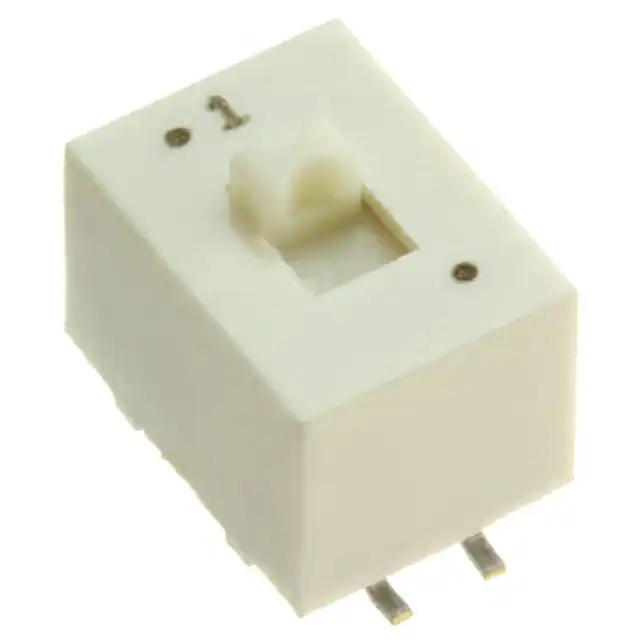

78HJ05GWTSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
规格书 |
78H | Tube | Obsolete | SPDT | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78J05RATSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | SPDT | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

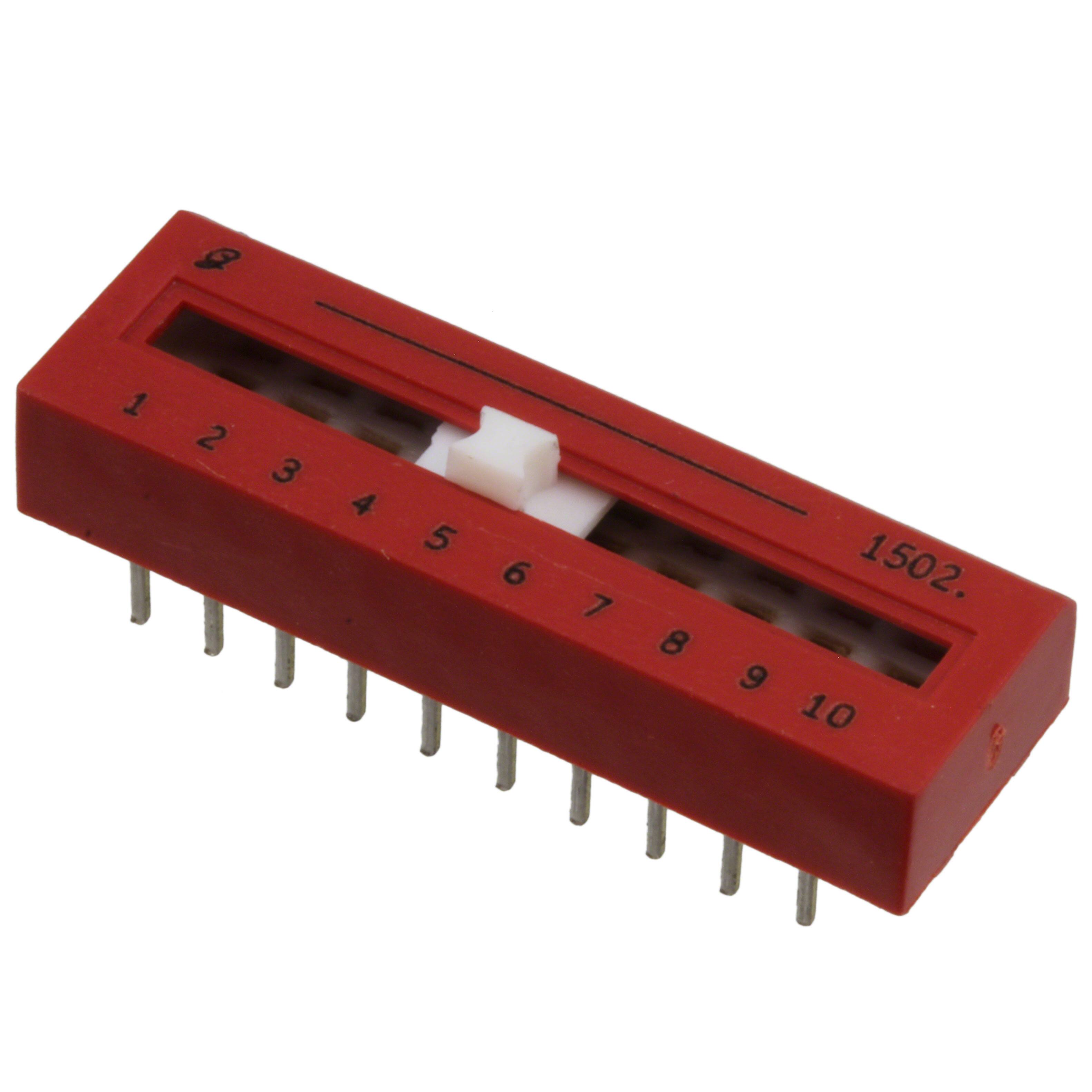

79C10TSWITCH SLIDE DIP SP10T 0.125A 6V |
0 |
|
规格书 |
79C | Tube | Obsolete | SP10T | 10 | 125mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.250" (6.35mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
90GB03TSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
规格书 |
90GB | Tube | Obsolete | SPST | 3 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
90GB04LTSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
规格书 |
90GB | Tube | Obsolete | SPST | 4 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Position Identification Line | -40°C ~ 85°C |
|
|
90GB04STSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
规格书 |
90GB | Tube | Obsolete | SPST | 4 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
90GB04TSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
规格书 |
90GB | Tube | Obsolete | SPST | 4 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
90GB05LTSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
规格书 |
90GB | Tube | Obsolete | SPST | 5 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Position Identification Line | -40°C ~ 85°C |
|
|
90GB05SLTSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
规格书 |
90GB | Tube | Obsolete | SPST | 5 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Position Identification Line, Tape Seal | -40°C ~ 85°C |
