| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAP1104ETSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
KAP1104RTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
KAP1105VTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAP | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
KAP1106VSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAP1106VTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

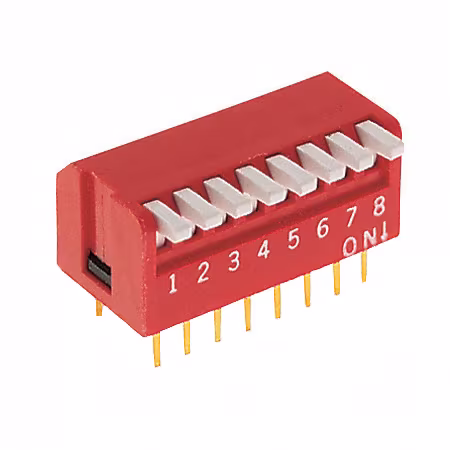

KAP1108RSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAR02LHGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAR | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.293" (7.45mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
|
KAR03LHGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAR | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.293" (7.45mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
|
KAR04LASTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAR | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
|
KAR04LHGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAR | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.293" (7.45mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
|
KAR05LHGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAR | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.293" (7.45mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
|
KAR08LHGTSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAR | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.293" (7.45mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
|
KAS1107ESWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAS | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAS1109ESWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAS | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAS2109ESWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAS | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

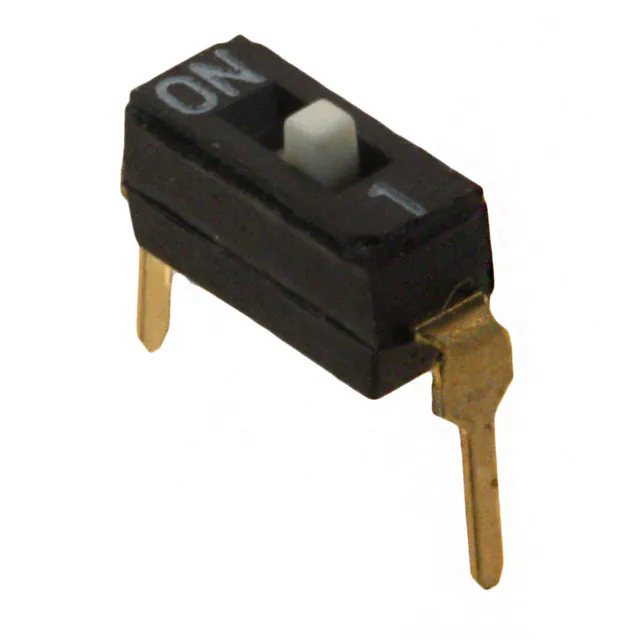

KAJ01LAGTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAJ | Tube | Obsolete | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KAJ01SGGTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
KAJ | Tube | Obsolete | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

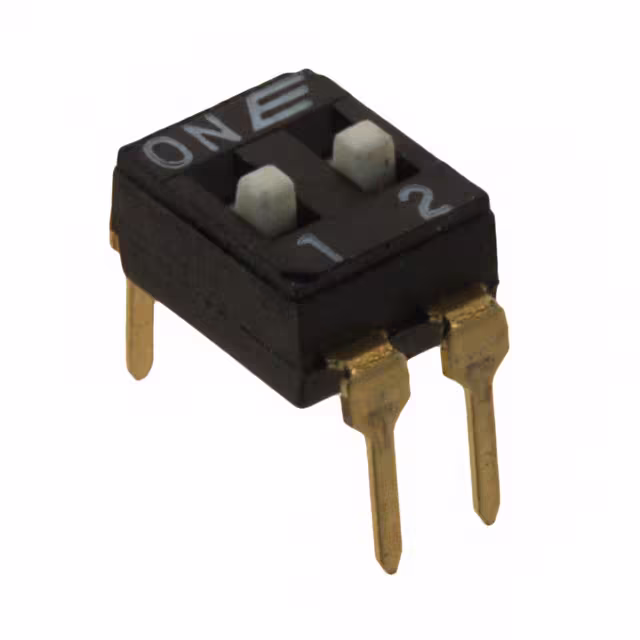

KAJ02LAGTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAJ | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KAJ02LGGTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAJ | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.163" (4.15mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

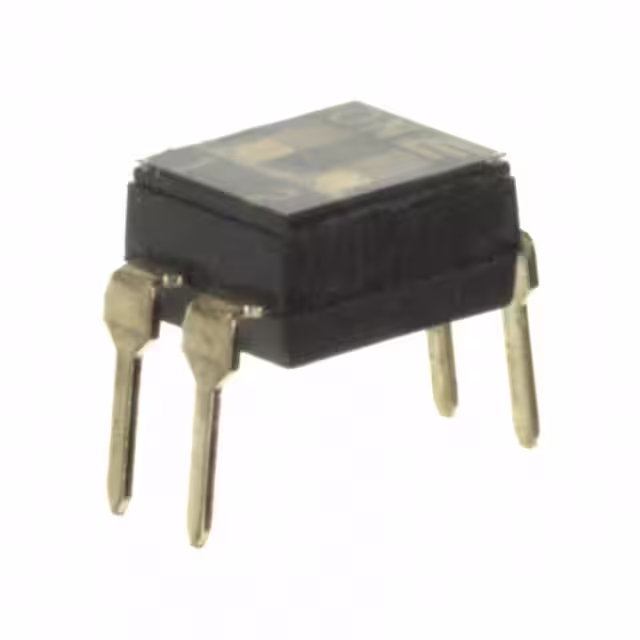

KAJ02TAGTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAJ | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
