DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
97C06SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
97 | Bag | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
97R06SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
97 | Bag | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
76PSB09STSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
规格书 |
76 | Tube | Obsolete | SPST | 9 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

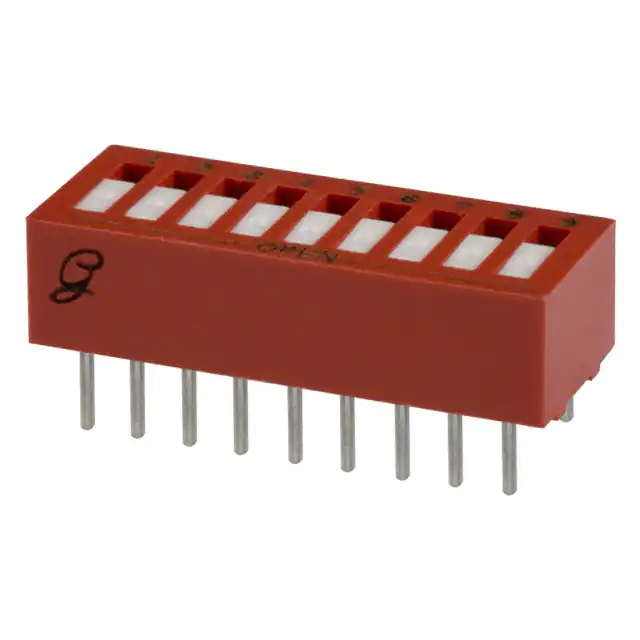

76RSB09STSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
规格书 |
76 | Tube | Obsolete | SPST | 9 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
76RSB09TSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
规格书 |
76 | Tube | Obsolete | SPST | 9 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

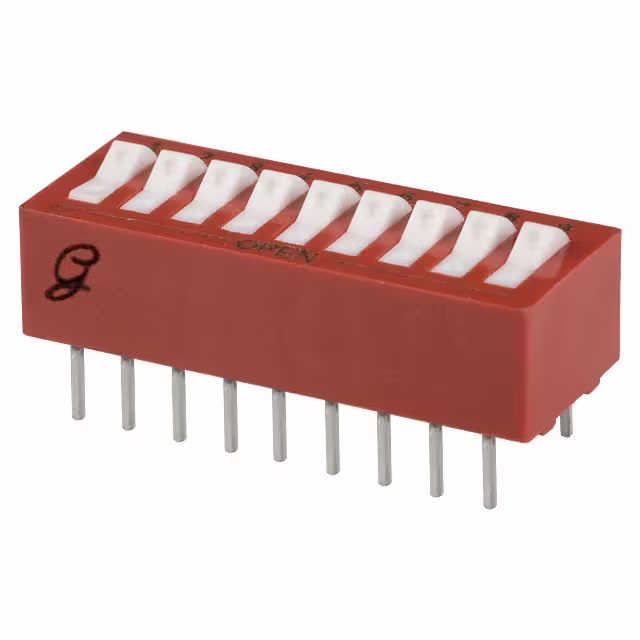

76SB09STSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
规格书 |
76 | Tube | Obsolete | SPST | 9 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
76SB09TSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
规格书 |
76 | Tube | Obsolete | SPST | 9 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

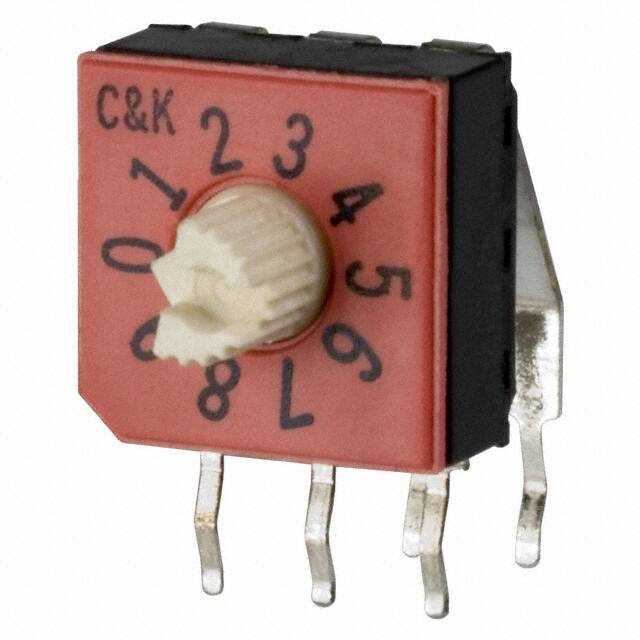

CD10RL1ABSWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
规格书 |
CD | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
CD16RL1CBSWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
规格书 |
CD | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
3-5435640-2SWITCH ROCKER DIP SPST |
0 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 12 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
BPA07BSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
规格书 |
BPA | Tube | Obsolete | SPST | 7 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
RTE0200N05SWITCH ROTARY DIP SPDT 0.1A 50V |
0 |
|
规格书 |
RTE | Bulk | Obsolete | SPDT | 2 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Bronze | Silver | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE0201N05SWITCH ROTARY DIP SPDT 0.1A 50V |
0 |
|
规格书 |
RTE | Bulk | Obsolete | SPDT | 2 | 100mA | 50VDC | Rotary with Shaft | Raised | Bronze | Silver | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE0300N05SWITCH ROTARY DIP SP3T 0.1A 50V |
0 |
|
规格书 |
RTE | Bulk | Obsolete | SP3T | 3 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Bronze | Silver | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

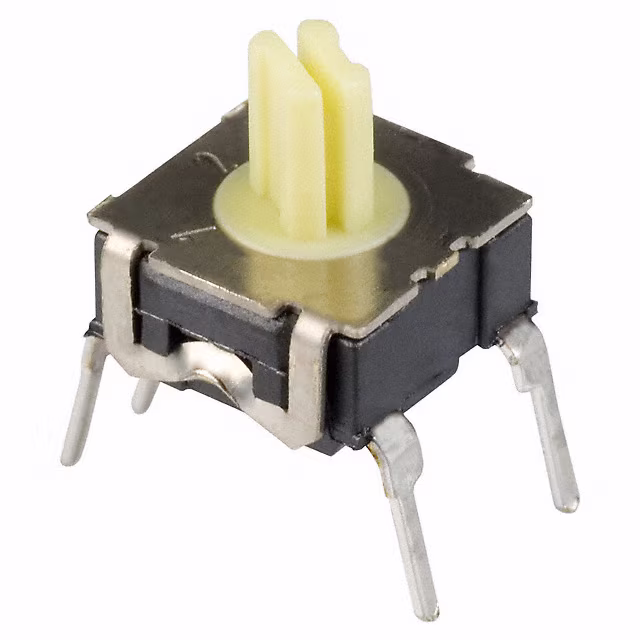

RTE0302N05SWITCH ROTARY DIP SP3T 0.1A 50V |
0 |
|
规格书 |
RTE | Bulk | Obsolete | SP3T | 3 | 100mA | 50VDC | Rotary with Shaft | Raised | Bronze | Silver | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

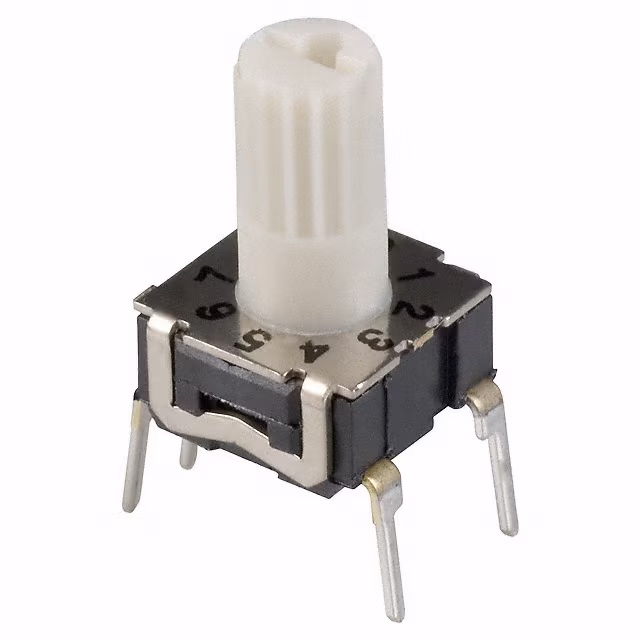

RTE1001N14SWITCH ROTARY DIP BCD 0.1A 30V |
0 |
|
规格书 |
RTE | Tube | Obsolete | BCD | 10 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

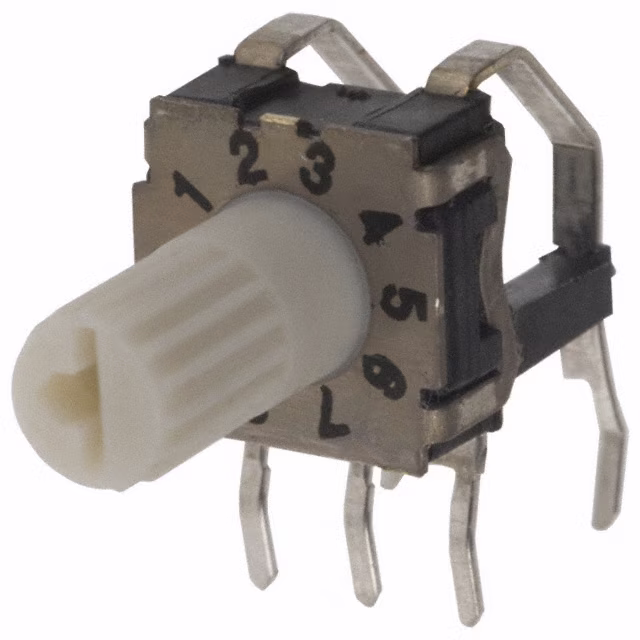

RTE1001V14SWITCH ROTARY DIP BCD 0.1A 30V |
0 |
|
规格书 |
RTE | Tube | Obsolete | BCD | 10 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE1601N44SWITCH ROTARY DIP HEX 0.1A 30V |
0 |
|
规格书 |
RTE | Tube | Obsolete | Hexadecimal | 16 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

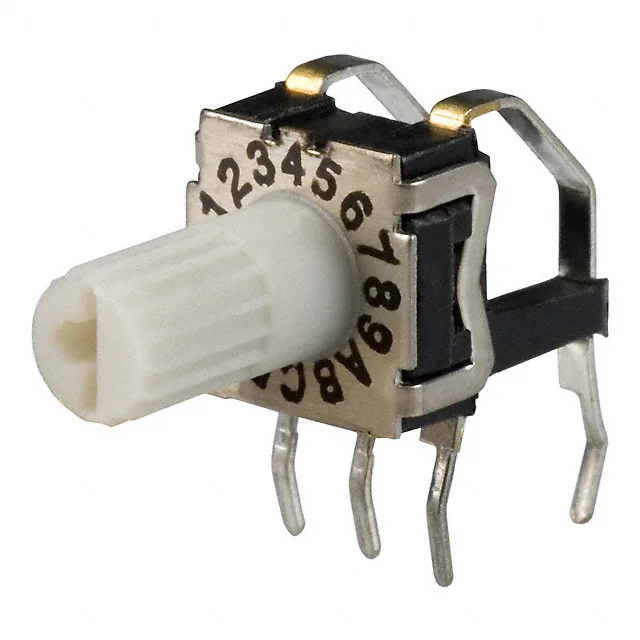

RTE1601V44SWITCH ROTARY DIP HEX 0.1A 30V |
0 |
|
规格书 |
RTE | Tube | Obsolete | Hexadecimal | 16 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
5-435470-2SWITCH STANDARD DIP SPDT |
0 |
|
规格书 |
7000 | Bulk | Obsolete | SPDT | 6 | - | - | Standard | Raised | - | - | - | Through Hole | - | - | No | - | - |
